960010601807Sym Joymax Z+ 125 E5 SH. FLANGE BOLT — Genuine Sym Part
Symoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

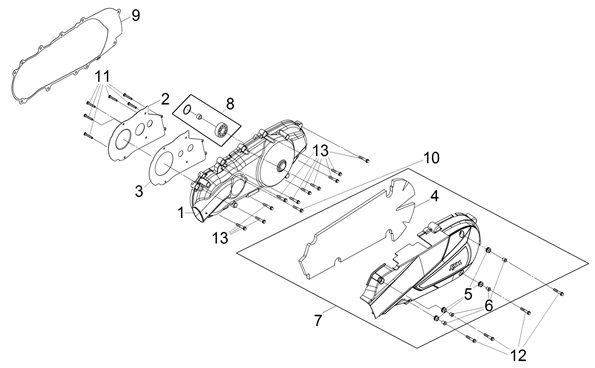

Other parts on this diagram — Left Crank Case Cover
- 960010603000 — Sym Joymax Z+ 125 E5 FLANGE BOLT SH 6X30
- 93500050120H — Sym Joymax Z+ 125 E5 PAN SCREW 5*12
- 934040604507 — Sym Joymax Z+ 125 E5 WASHER BOLT 6X45
- 11395L1N000 — Sym Joymax Z+ 125 E5 L. COVER GASKET
- 11371HJA301A — Sym Joymax Z+ 125 E5 L/CR. COVER BEARING COMP
- 1135AL1N003KA — Sym Joymax Z+ 125 E5 L OUTER COVER ASSY.BK-001U
- 11356H3A000 — Sym Joymax Z+ 125 E5 COLLAR
- 11354H3A000 — Sym Joymax Z+ 125 E5 MOUNT RUBBER
- 11352L1N000 — Sym Joymax Z+ 125 E5 L. OUTER COVER SPONGE
- 11349L1N000 — Sym Joymax Z+ 125 E5 L. COVER PLATE GASKET
- 11346L1N000 — Sym Joymax Z+ 125 E5 L. COVER PLATE
- 11341L1N000 — Sym Joymax Z+ 125 E5 L. CRANK CASE COVER
