Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

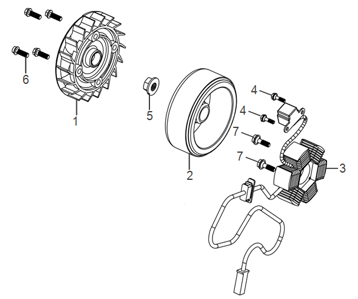

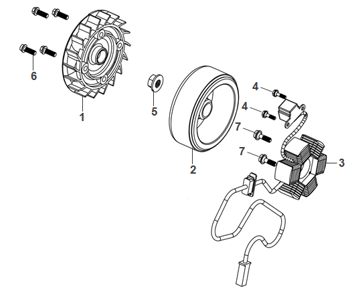

Location in exploded diagrams

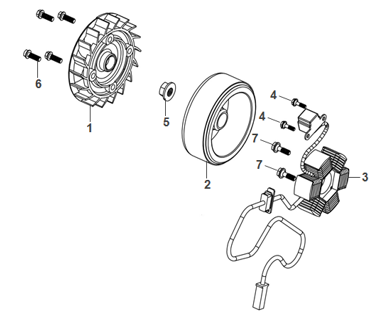

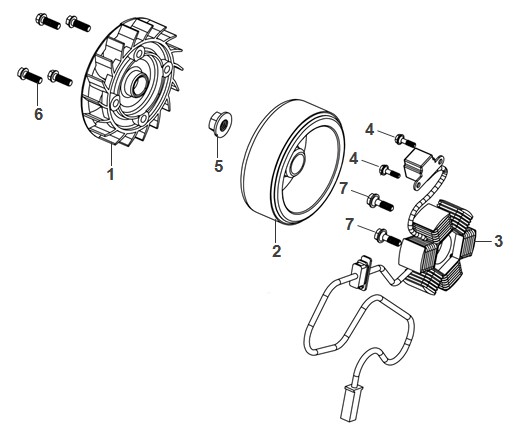

Other parts on this diagram — AC Gen Assy
- 960010602208 — Sym Fiddle 50 E5 FLANGE BOLT SH. 6*22
- 9405010000 — Sym Fiddle 50 E5 FLANGE NUT 10MM
- 9405010080 — Sym Fiddle 50 E5 FLANGE NUT 10MM
- 92101060160H — Sym Fiddle 50 E5 HEX BOLT 6*16
- 92101050120H — Sym Fiddle 50 E5 HEX BOLT 6*16
- 31120XLA000 — Sym Fiddle 50 E5 STATOR
- 31110XLA000 — Sym Fiddle 50 E5 FLYWHEEL COMP
- 19510XUA000 — Sym Fiddle 50 E5 COOLING FAN
- 19510A1A000 — Sym Fiddle 50 E5 COOLING FAN
