Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

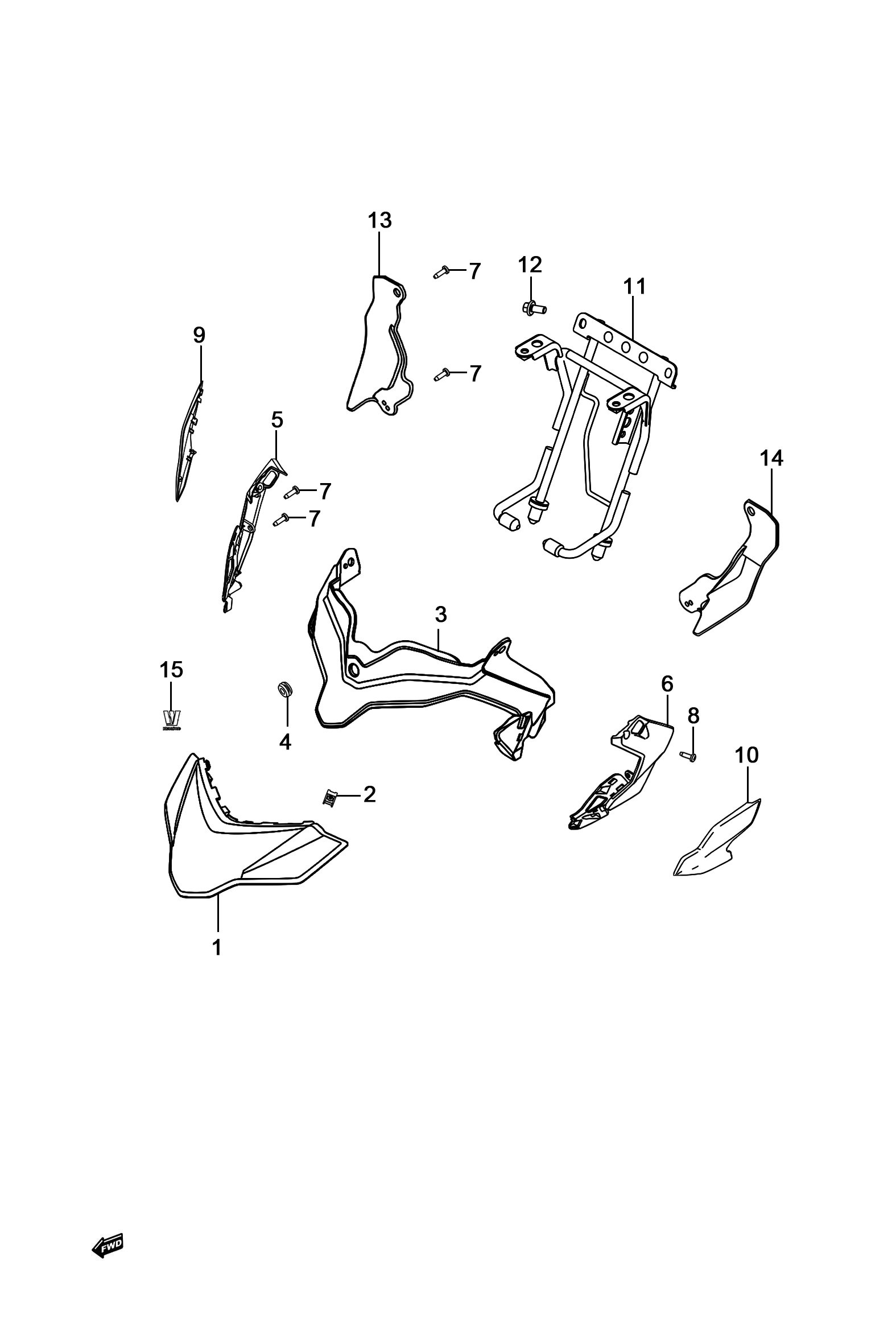

Other parts on this diagram — 导流罩组
- #1 94414H2H000H517 — 导流罩装饰盖(星光黑)
- #1 94414H2H000H129 — 导流罩装饰盖(炫酷红)
- #1 94414H2H000H911 — 导流罩装饰盖(水晶白)
- #2 09148-05077-000 — 锁片螺母
- #3 51821H2H001H511 — 前照灯上罩(哑光黑)
- #4 09320H06004H000 — 减震垫
- #5 51831H2H000H844 — 前照灯壳右盖(哑光钨银)
- #6 51841H2H000H844 — 前照灯壳左盖(哑光钨银)
- #7 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #8 03241-0516A-000 — 十字槽球头自攻钉
- #9 94417H2H000H517 — 前照灯右装饰盖(星光黑)
- #9 94417H2H000H129 — 前照灯右装饰盖(炫酷红)
- #9 94417H2H000H911 — 前照灯右装饰盖(水晶白)
- #10 94427H2H000H517 — 前照灯左装饰盖(星光黑)
- #10 94427H2H000H129 — 前照灯左装饰盖(炫酷红)
- #10 94427H2H000H911 — 前照灯左装饰盖(水晶白)
- #11 51520H2H000H000 — 前照灯支架总成
- #12 01550-0616B-000 — 六角法兰面螺栓
- #14 94425H2H000H000 — 导流罩左侧装饰板
- #15 68170H79000HSIL — 豪爵LOGO
- #15 68170H79000HTR8 — 豪爵LOGO
