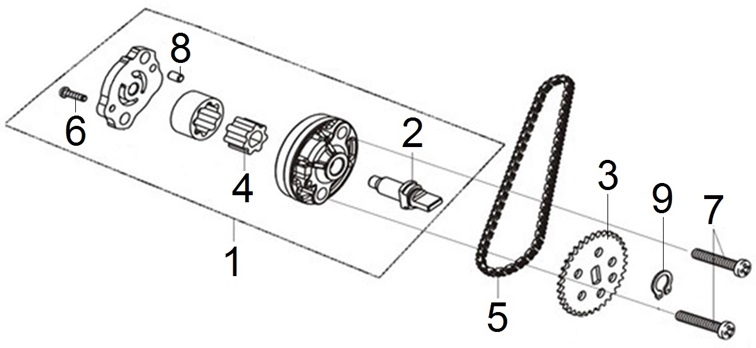

Location in exploded diagrams
Other parts on this diagram — Oil Pump
- 9451010000 — Sym Joymax Z+ 125 E5 EX. CIR CLIP 10MM
- 9430304065 — Sym Joymax Z+ 125 E5 DOWEL PIN 4X6.5
- 93500060300H — Sym Joymax Z+ 125 E5 PAN SCREW 6X30
- 93500030121A — Sym Joymax Z+ 125 E5 PAN SCREW 3X12
- 15141V01003 — Sym Joymax Z+ 125 E5 OIL PUMP CHAIN 25-46
- 1C15141KJ9003E1 — Sym Joymax Z+ 125 E5 OIL PUMP CHAIN 25-46
- 15331H9A000 — Sym Joymax Z+ 125 E5 OIL PUMP INNER ROTOR
- 15133KM1000 — Sym Joymax Z+ 125 E5 OIL PUMP DRIVEN SPROCKET
- 15132H9A000 — Sym Joymax Z+ 125 E5 OIL PUMP SHAFT
- 15101H9A000 — Sym Joymax Z+ 125 E5 OIL PUMP BODY
- 15100H9A000 — Sym Joymax Z+ 125 E5 OIL PUMP ASSY
