Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

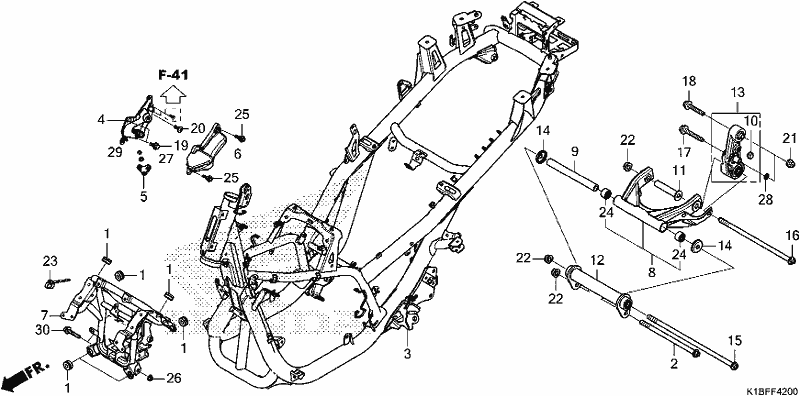

Location in exploded diagrams
Other parts on this diagram
- #1 19051-KA4-000 — RUBBER, RADIATOR MOUNTING
- #2 42301-K04-930 — AXLE RR WHEEL
- #3 50100K1BT60 — BODY COMP FRAME ST
- #4 50200K0BT01 — LINK COMP HANDLE STOPPER
- #5 50209-K0B-T00 — ARM LID LOCK
- #6 50210-K0B-T00 — COVER HANDLE STOPPER
- #7 50310K1BT60 — STAY COMP FR COVER
- #8 50349K2LD00 — BRKT SUB ASSY B ENG HANG
- #9 50352KTW901 — COLLAR B ENG HANG DISTANCE
- #10 50354-428-000 — RUB B STOPPER
- #11 50354-K04-930 — COLLAR, ENGINE PIVOT DISTANCE
- #12 50360K1BT00 — BRKT ASSY A ENG HANG
- #13 50380K1BT00 — ROD COMP SWING
- #14 52144-GF5-003 — DUST SEAL, 31X38.5X7(NOK)
- #15 90101K1BT00 — BOLT FLANGE 12X345
- #16 90103K1BT00 — BOLT FLANGE 12X285
- #17 90104K1BT00 — BOLT FLANGE S-DR 10X75
- #18 90105K1BT00 — BOLT FLANGE S-DR 10X65
- #19 90112-GW3-000 — BOLT, FLANGE, 6X14
- #20 90113-K40-F00 — SCREW PAN 5X15
- #21 90304-KGH-901 — NUT U 10MM
- #22 90306-KF0-003 — NUT FLANGE 12MM
- #23 90651-KV6-003 — BAND WIRE
- #24 91071-KS6-004 — BEARING, RR. FORK PIVOT (TOYO)
