Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

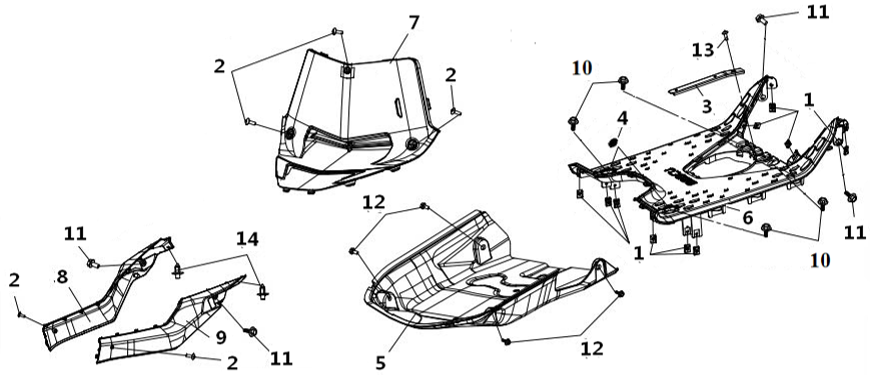

Other parts on this diagram — F08 - Floor Panel & Side Cover
- 90115REA000TW — Sym MMBCU 125 E5+ PLASTIC NUT6MM
- 90115REA000 — Sym MMBCU 125 E5+ PLASTIC NUT 6MM
- 9390334380L1 — Sym MMBCU 125 E5+ TAPPING SCREW 4x12 mm
- 90111M9Q8000L1 — Sym MMBCU 125 E5+ FLANGE BOLT 6 mm
- 934040601207L1 — Sym MMBCU 125 E5+ WASHER BOLT 6*12 mm
- 83620ZLB000 — Sym MMBCU 125 E5+ L. SIDE COVER
- 83520ZLB000 — Sym MMBCU 125 E5+ R. SIDE COVER
- 80152D51000KK1 — Sym MMBCU 125 E5+ LOWER CENTER COVER (BK-002DY)
- 64310D51000KK1 — Sym MMBCU 125 E5+ FLOOR PANEL (BK-002DY)
- 50613D51000 — Sym MMBCU 125 E5+ UNDER COVER
- 50612ZGA000 — Sym MMBCU 125 E5+ CAP B FLR STEP
- 50143D21000 — Sym MMBCU 125 E5+ FLOOR PANEL PLATE C
- 9390344380 — Sym MMBCU 125 E5+ TAPPING SCREW 4X12
- 90302SA4900 — Sym MMBCU 125 E5+ SPRING NUT 4MM
- 90302SA4010 — Sym MMBCU 125 E5+ SPRING NUT 4MM
