Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

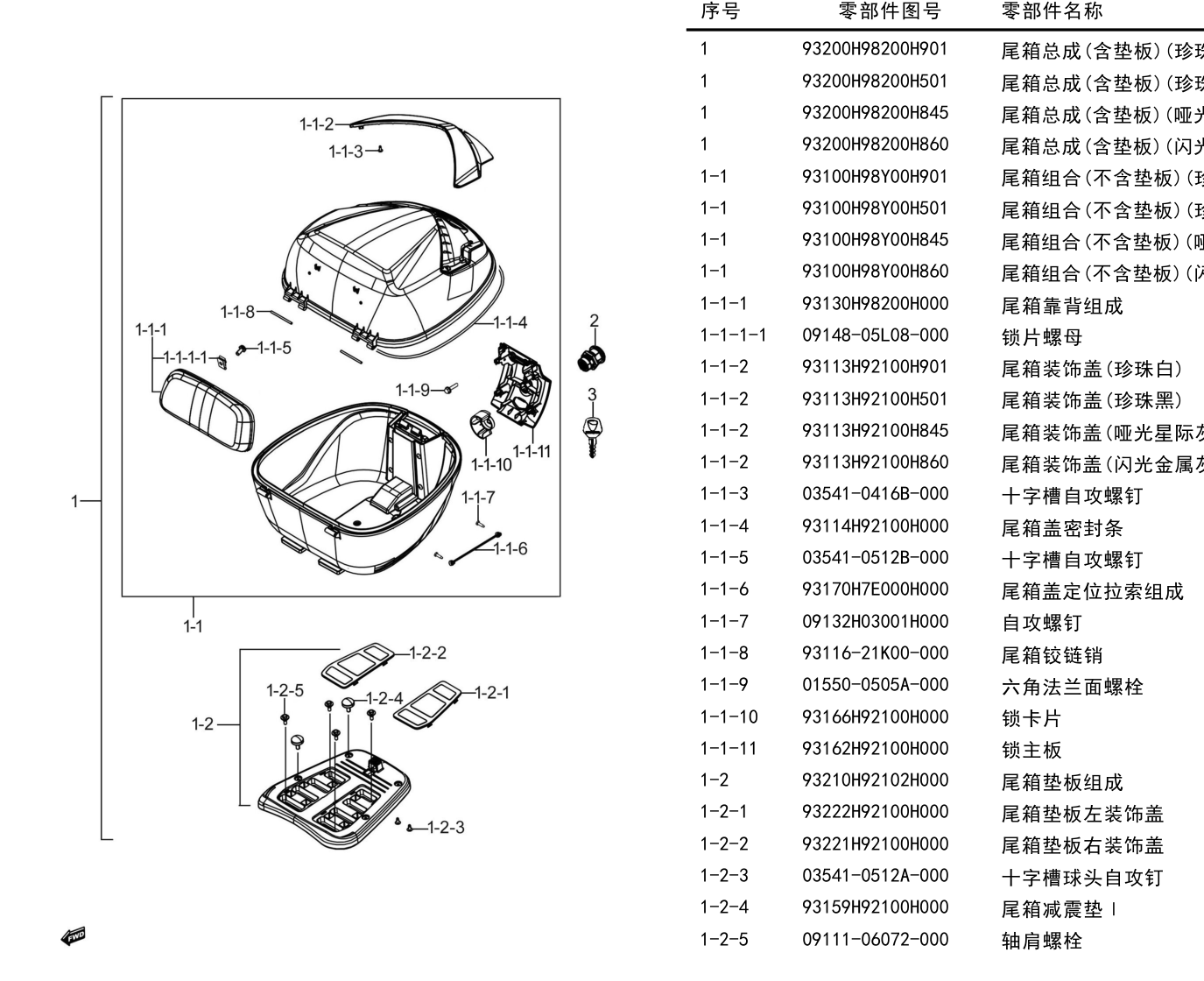

Other parts on this diagram — 尾箱组
- #1 93200H98200H901 — 尾箱总成(含垫板)(珍珠白)
- #1 93200H98200H501 — 尾箱总成(含垫板)(珍珠黑)
- #1 93200H98200H845 — 尾箱总成(含垫板)(哑光星际灰)
- #1 93200H98200H860 — 尾箱总成(含垫板)(闪光金属灰)
- #1-1 93100H98Y00H860 — 尾箱组合(不含垫板)(闪光金属灰)
- #1-2 93210H92102H000 — 尾箱垫板组成
- #2 93160H98200H000 — 尾箱锁总成
- #1 1-1-1-1
- #1 1-1-10
- #1 1-1-11
- #1-1 93100H98Y00H901 — 尾箱组合(不含垫板)(珍珠白)
- #1-1 93100H98Y00H501 — 尾箱组合(不含垫板)(珍珠黑)
- #1-1 93100H98Y00H845 — 尾箱组合(不含垫板)(哑光星际灰)
