Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

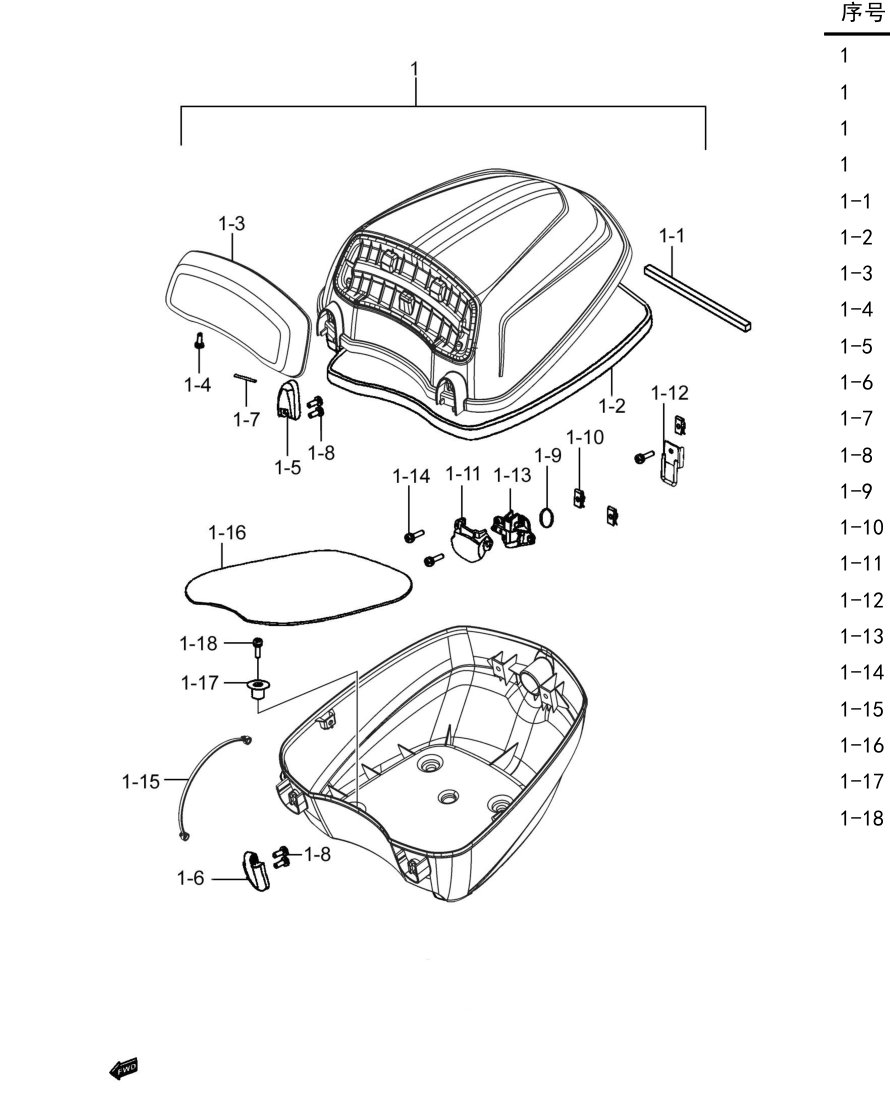

Location in exploded diagrams
Other parts on this diagram — 尾箱组
- #1 93100H7JY00H501 — 尾箱组合(珍珠黑)
- #1 93100H7JY00H110 — 尾箱组合(玫瑰红)
- #1 93100H7JY00H827 — 尾箱组合(月光银)
- #1 93100H7JY00H901 — 尾箱组合(珍珠白)
- #1-2 93115H7J000H000 — 尾箱盖密封条Ⅱ
- #1-4 03541-0416A-000 — 十字槽自攻螺钉
- #1-5 93151-37G00-000 — 铰链上半体
- #1-6 93152-37G00-000 — 铰链下半体
- #1-7 93153H37G00H000 — 尾箱铰链轴
- #1-8 03541-0520A-000 — 十字槽球头自攻钉
- #1-9 93161H79100H000 — 尾箱锁密封垫
- #1-10 93162-37G00-000 — 夹螺母
- #1-11 93163-37G00-000 — 锁罩
- #1-12 93164H37G00H000 — 尾箱锁钩
- #1-13 93160-37G00-000 — 尾箱锁部件
- #1-14 01550-0616A-000 — 六角法兰面螺栓
- #1-15 93170H7E000H000 — 尾箱盖定位拉索组成
- #1-16 93181H7J000H000 — 尾箱内衬垫
- #1-17 93190-37G00-000 — 尾箱压垫
- #1-18 01550-0620A-000 — 六角法兰面螺栓
- #1-1 93114H7J000H000 — 尾箱盖密封条Ⅰ
