Location in exploded diagrams

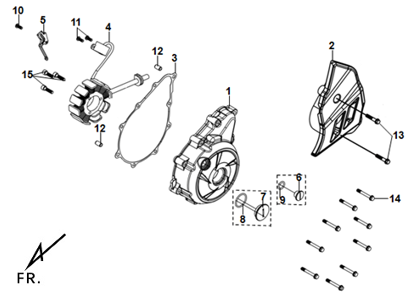

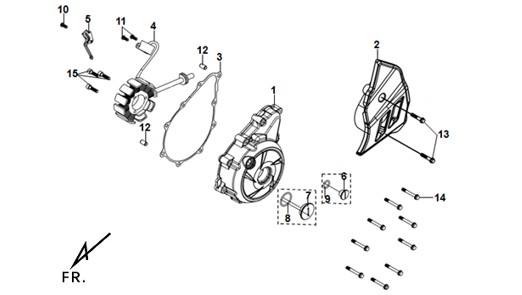

Other parts on this diagram — E15 - Left Engine Cover
- 967000602204 — Sym NH-R 125 E5+ Socket bolt 6x22
- 958010604000 — Sym NH-R 125 E5+ FLANGE BOLT 6X40
- 960010604002 — Sym NH-R 125 E5+ SH.FLANGE BOLT 6*40
- 960010603000 — Sym NH-R 125 E5+ FLANGE BOLT SH 6X30
- 9430108140 — Sym NH-R 125 E5+ DOWEL PIN 8*14
- 92101050120A — Sym NH-R 125 E5+ HEX BOLT 5*12
- 91304VA2000 — Sym NH-R 125 E5+ O-RING 8MM
- 91302001020 — Sym NH-R 125 E5+ O-RING 30.8*3
- 91302001020KD — Sym NH-R 125 E5+ O-RING 30.8MM
- 91302M9T000 — Sym NH-R 125 E5+ O-RING30.8*3.2
- 91302M9Q000 — Sym NH-R 125 E5+ O-RING 30.8*3.2
- 90087VF3000 — Sym NH-R 125 E5+ A.C.G. CAP 33MM
- 90084VBA000 — Sym NH-R 125 E5+ A. C. G. CAP 14MM
- 32961VF3000 — Sym NH-R 125 E5+ A.C.G. CORD CLAMPER
- 31120NHA900 — Sym NH-R 125 E5+ STATOR COMP.
- 11395NHA000 — Sym NH-R 125 E5+ L. CRANK CASE COVER GASKET
- 11360NHA000 — Sym NH-R 125 E5+ L. CRANK CASE REAR COVER COMP.
- 11341VF3000K1 — Sym NH-R 125 E5+ L. CRANK CASE COVER
- 11341VF3000 — Sym NH-R 125 E5+ L. CRANK CASE COVER
- 9200005012 — Sym NH-R 125 E5+ HEX BOLT 5*12
