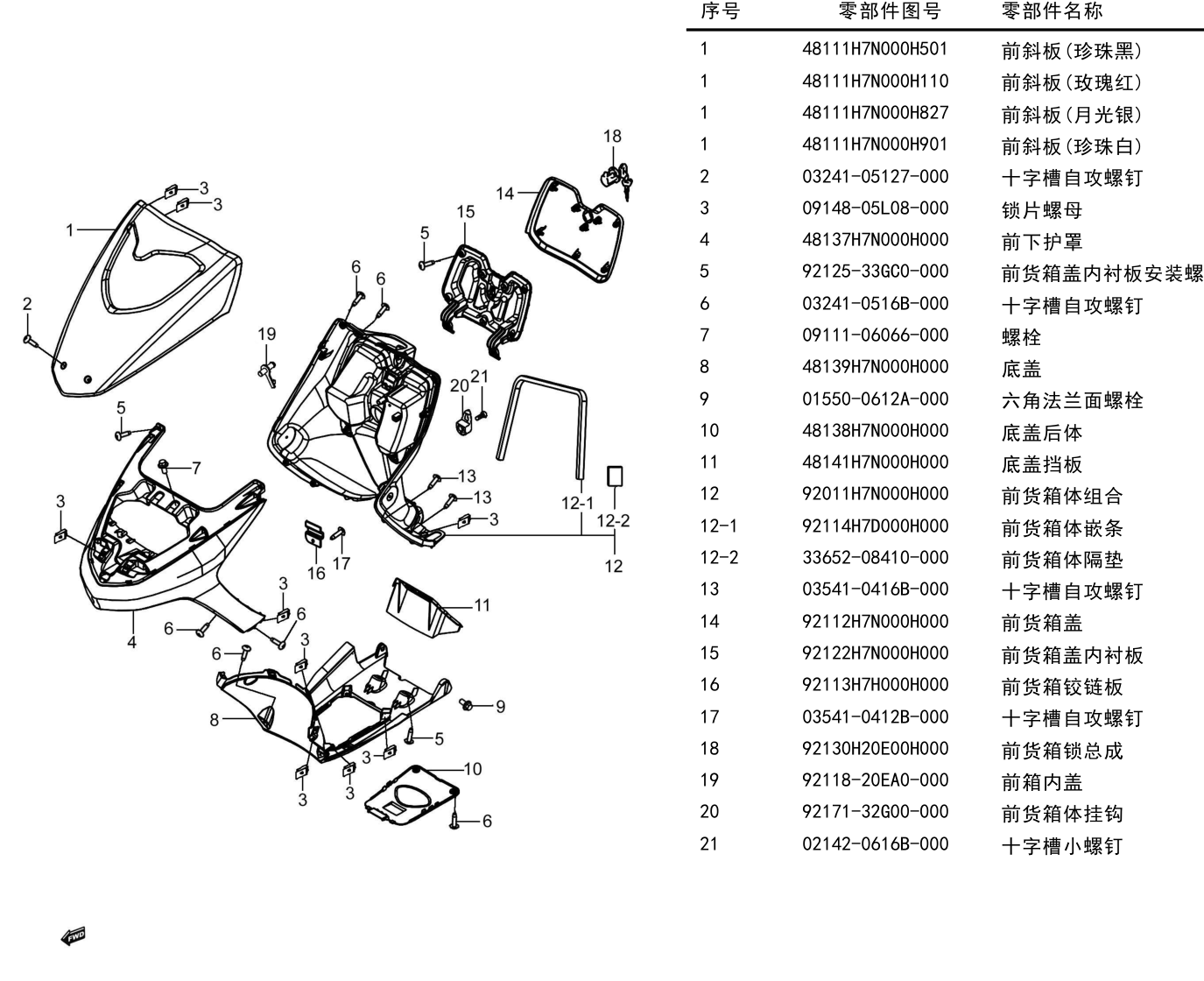

Location in exploded diagrams
Other parts on this diagram — 护罩组
- #1 48111H7N000H501 — 前斜板(珍珠黑)
- #1 48111H7N000H110 — 前斜板(玫瑰红)
- #1 48111H7N000H827 — 前斜板(月光银)
- #1 48111H7N000H901 — 前斜板(珍珠白)
- #2 03241-05127-000 — 十字槽自攻螺钉
- #3 09148-05L08-000 — 锁片螺母
- #4 48137H7N000H000 — 前下护罩
- #5 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #6 03241-0516B-000 — 十字槽自攻螺钉
- #7 09111-06066-000 — 螺栓
- #8 48139H7N000H000 — 底盖
- #9 01550-0612A-000 — 六角法兰面螺栓
- #10 48138H7N000H000 — 底盖后体
- #11 48141H7N000H000 — 底盖挡板
- #12-1 92114H7D000H000 — 前货箱体嵌条
- #12-2 33652-08410-000 — 前货箱体隔垫
- #13 03541-0416B-000 — 十字槽自攻螺钉
- #14 92112H7N000H000 — 前货箱盖
- #15 92122H7N000H000 — 前货箱盖内衬板
- #16 92113H7H000H000 — 前货箱铰链板
- #17 03541-0412B-000 — 十字槽自攻螺钉
- #18 92130H20E00H000 — 前货箱锁总成
- #19 92118-20EA0-000 — 前箱内盖
- #20 92171-32G00-000 — 前货箱体挂钩
