Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

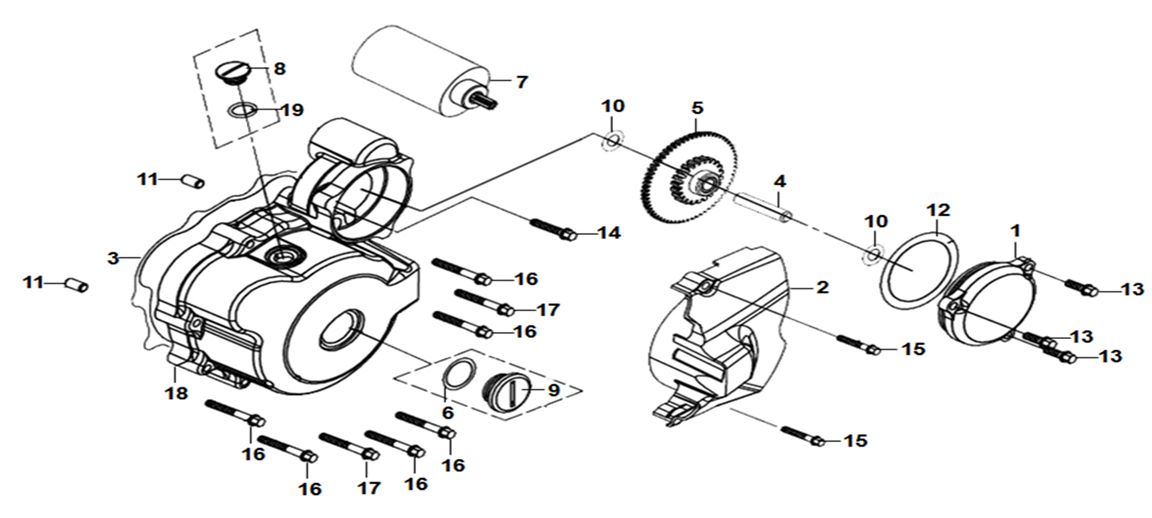

Other parts on this diagram — Left Crank Case Cover
- 91303377000 — Sym NH-T 125 E5 O-RING13.8*2.5
- 11340NAA000 — Sym NH-T 125 E5 L. CRANK CASE COVER
- 11340NAA020 — Sym NH-T 125 E5 L. crank case cover COMP
- 957010605000 — Sym NH-T 125 E5 FLANGE BOLT 6X50
- 960010605002 — Sym NH-T 125 E5 SH. FLANGE BOLT6*50
- 958010604000 — Sym NH-T 125 E5 FLANGE BOLT 6X40
- 960010604002 — Sym NH-T 125 E5 SH.FLANGE BOLT 6*40
- 960010602802 — Sym NH-T 125 E5 SH. FLANGE BOLT 6*28
- 957010602500 — Sym NH-T 125 E5 FLANGE BOLT 6X25
- 960010602502 — Sym NH-T 125 E5 SH.FLANGE BOLT 6*25
- 958010602000 — Sym NH-T 125 E5 FLANGE BOLT 6X20
- 960010602002 — Sym NH-T 125 E5 SH. FLANGE BOLT 6*20
- 91359CGA000 — Sym NH-T 125 E5 OIL RING 63*3.0
- 90703HC4000 — Sym NH-T 125 E5 DOWEL PIN 10*14
- 9430110140 — Sym NH-T 125 E5 DOWEL PIN 10X14
- 90703M8Q000 — Sym NH-T 125 E5 DOWEL PIN 10*14
- 90474D1A000 — Sym NH-T 125 E5 WASHER 10.5MM
- 90084A01A00C — Sym NH-T 125 E5 A.C.G. cover 14MM
- 31200BBA000 — Sym NH-T 125 E5 STARTER MOTOR
- 91302567003 — Sym NH-T 125 E5 O-RING 27.4*2.4
- 28134NAA000 — Sym NH-T 125 E5 STARTER REDUCTION B
- 28132D1A000 — Sym NH-T 125 E5 ST. REDUCTION GEAR
- 11395D1A000 — Sym NH-T 125 E5 L. CRANK CASE COVER GASKE
- 11395BA1000 — Sym NH-T 125 E5 L. CRANK CASE COVER GASKET
