Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

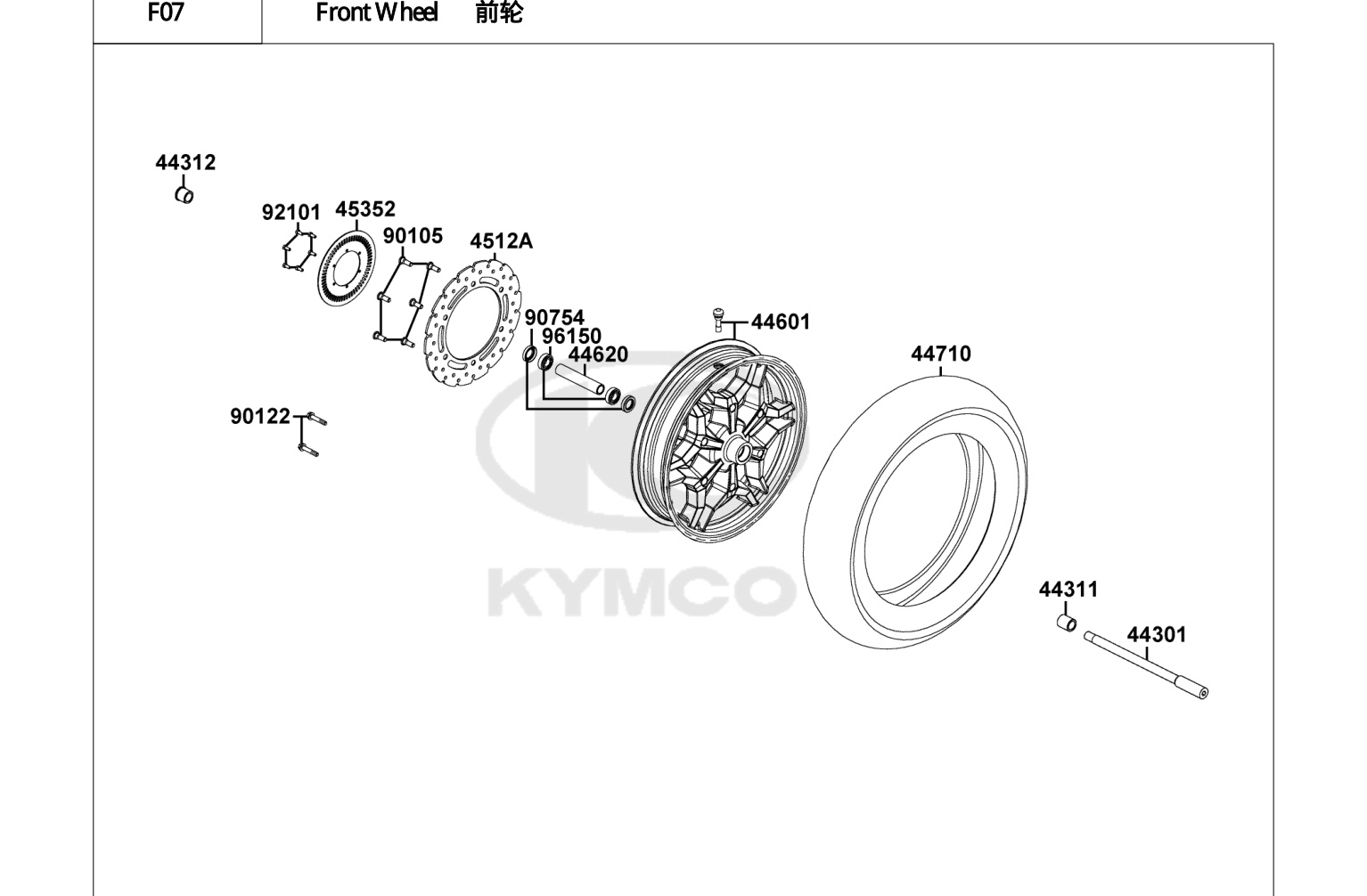

Location in exploded diagrams
Other parts on this diagram — 前轮
- #44301 44301-LEA7-C00 — AXLE FR WHEEL M15*282(B)
- #44311 44311-AGD8-C00 — SIDE COLLAR FR
- #44312 44312-AGD8-C00 — CAP FR AXLE
- #92101 92101-05012-0HG — BOLT HEX 5*12
- #44601 44601-AGD8-C02 — WHEEL FR CAST
- #44620 44620-LEA7-C00 — COLLAR FR DIST
- #44710 44710-AGD8-C00 — TIRE ASSY FR
- #4512A 4512A-LEA7-C01 — DISK FR BRK
- #45352 45352-LEA7-C00 — TOOTHED RING,SENSOR
- #90105 90105-LEA7-E00 — BOLT FR DISK 8x30
- #90122 90122-LEA7-C01 — BOLT FLANGE 8*32
- #96150 96150-60020-10 — BEARING BALL RADIAL 6002
