Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

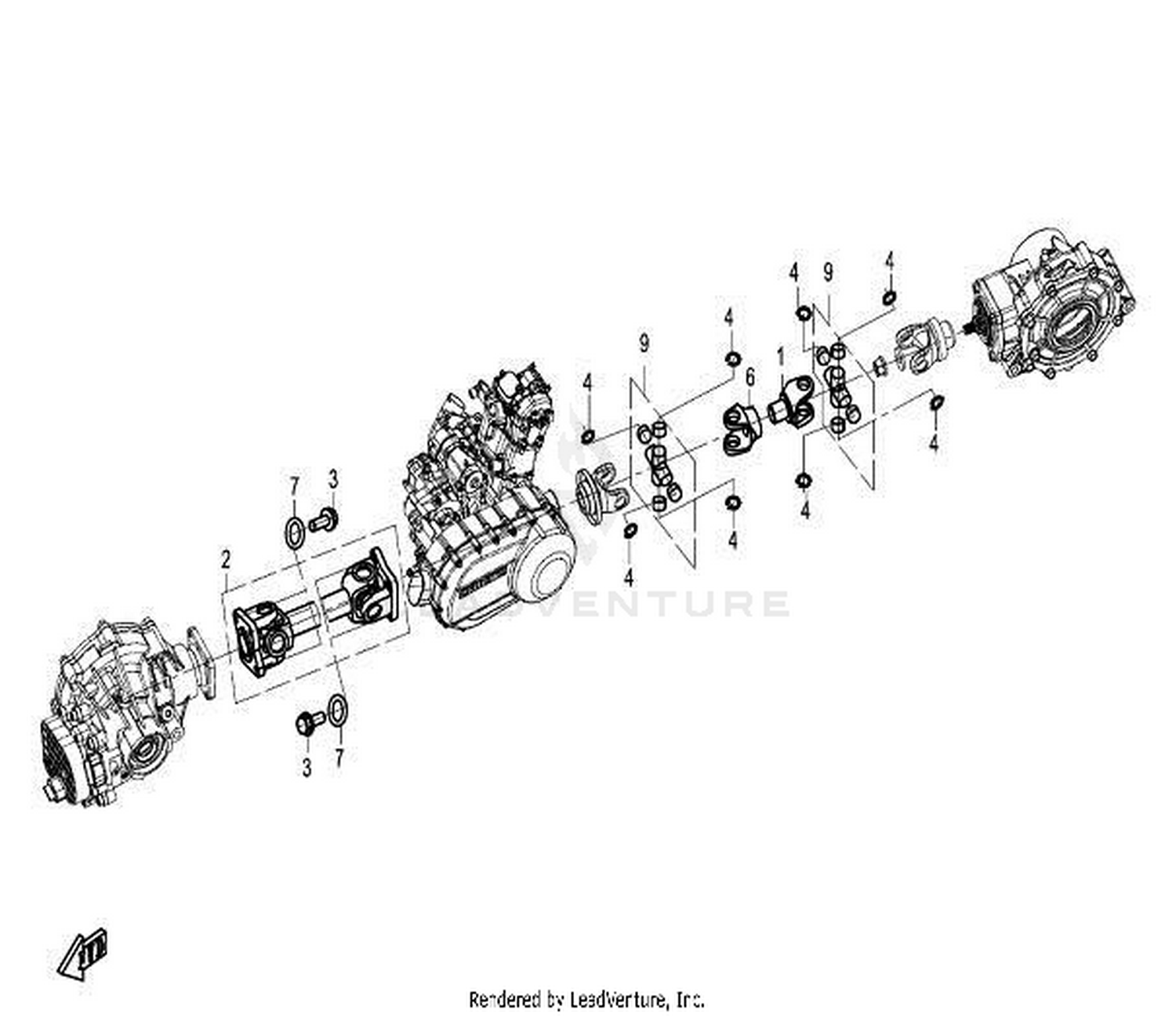

Location in exploded diagrams
Other parts on this diagram — Transmission System
- #04 30204-102810 — Nut M10×1.25
- #19 7020-290130-10000 — Universal Joint Dia 25X64 Dia 25X64
- #18 30006-102110110 — Bolt M10×1.25×110
- #26 30006-102050840 — Needs Description
- #09 30006-102130840 — Needs Description
- #10 30800-02005 — Circlip For Hole 20 20
- #06 30306-080112 — Washer F8
- #11 9060-300120 — Universal Joint Assy
- #07 9010-290001 — Bolt M8X1X22 M8X1X22
- #12 9060-300102 — Rear Drive Shaft Inner Joint
- #07 30006-102030840 — Needs Description
- #20 30800-02505 — Circlip For Hole A-D25 25
- #13 9060-300103 — Rear Drive Shaft Outer Joint
