Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

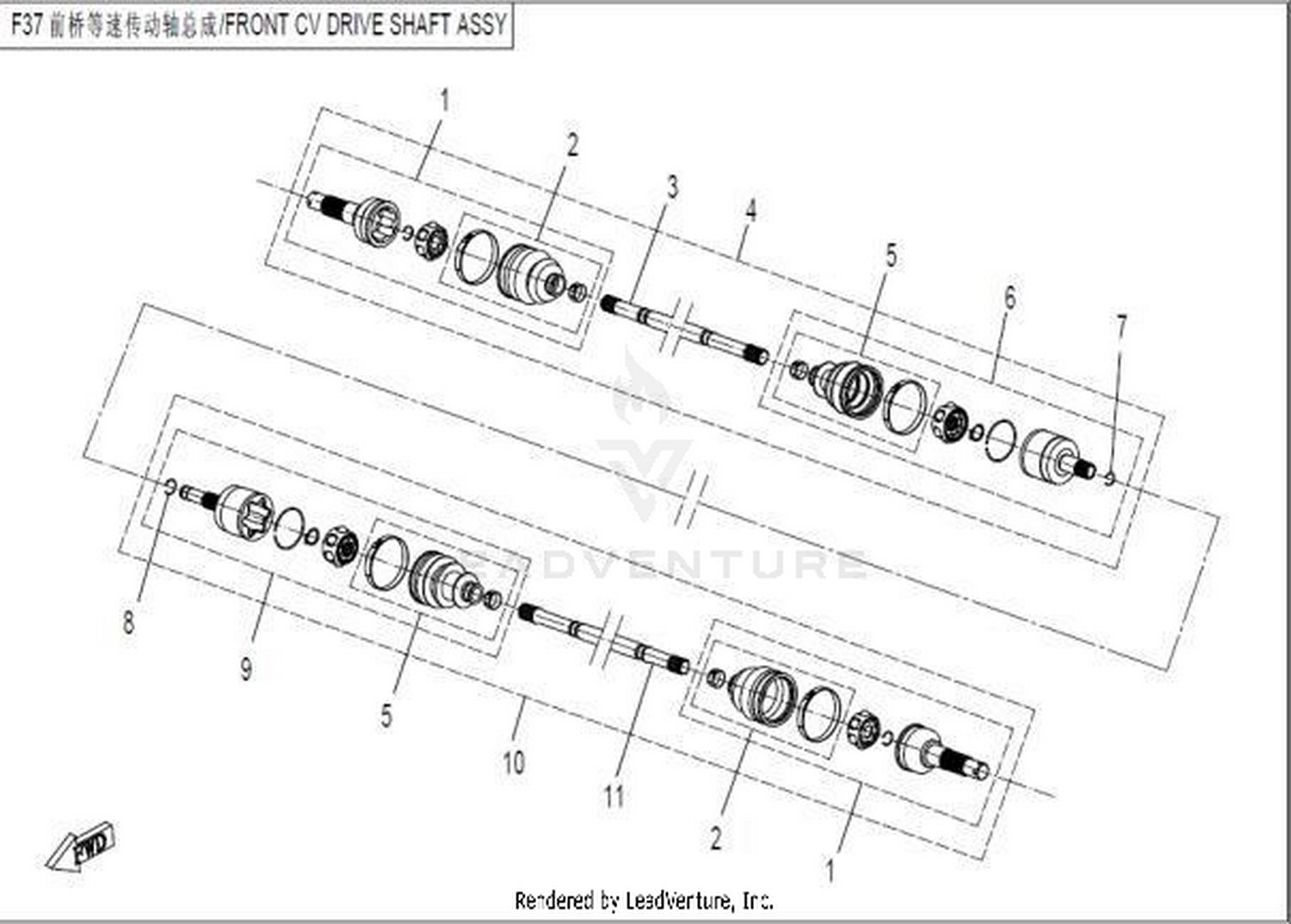

Other parts on this diagram — Front Cv Drive Shaft Assy
- #08 9010-270112 — Wire Circlip
- #01 7000-270270 — Joint, Front Fixed End Sps
- #05 7000-270250 — Front Motion End Seal Guard Service Assy Sps
- #09 7000-270140 — Bearing Kit, Front Lh Motion End
- #01 9060-270140-2000 — Joint, Front Fixed End
- #05 9010-270160-2000 — Dust Boot, Motion End
- #09 9010-270130-2000 — Bearing Kit, Front Lh Motion End
- #02 7000-270260 — Front Fixed End Seal Guard Service Assy Sps
- #06 7000-270200-50000 — Front Rh Cv Drive Shaft
- #10 9060-270100-30000 — Front Lh Cv Drive Shaft
- #11 9010-270100-50000 — Front Lh Cv Drive Shaft Odm
- #06 9010-270230-2000 — Bearing Kit, Front Rh Motion End
- #11 9060-270105 — Front Shaft, Lh Sps
- #04 9060-270200-30000 — Front Rh Cv Drive Shaft
- #04 9010-270203-00001 — Wire Circlip
