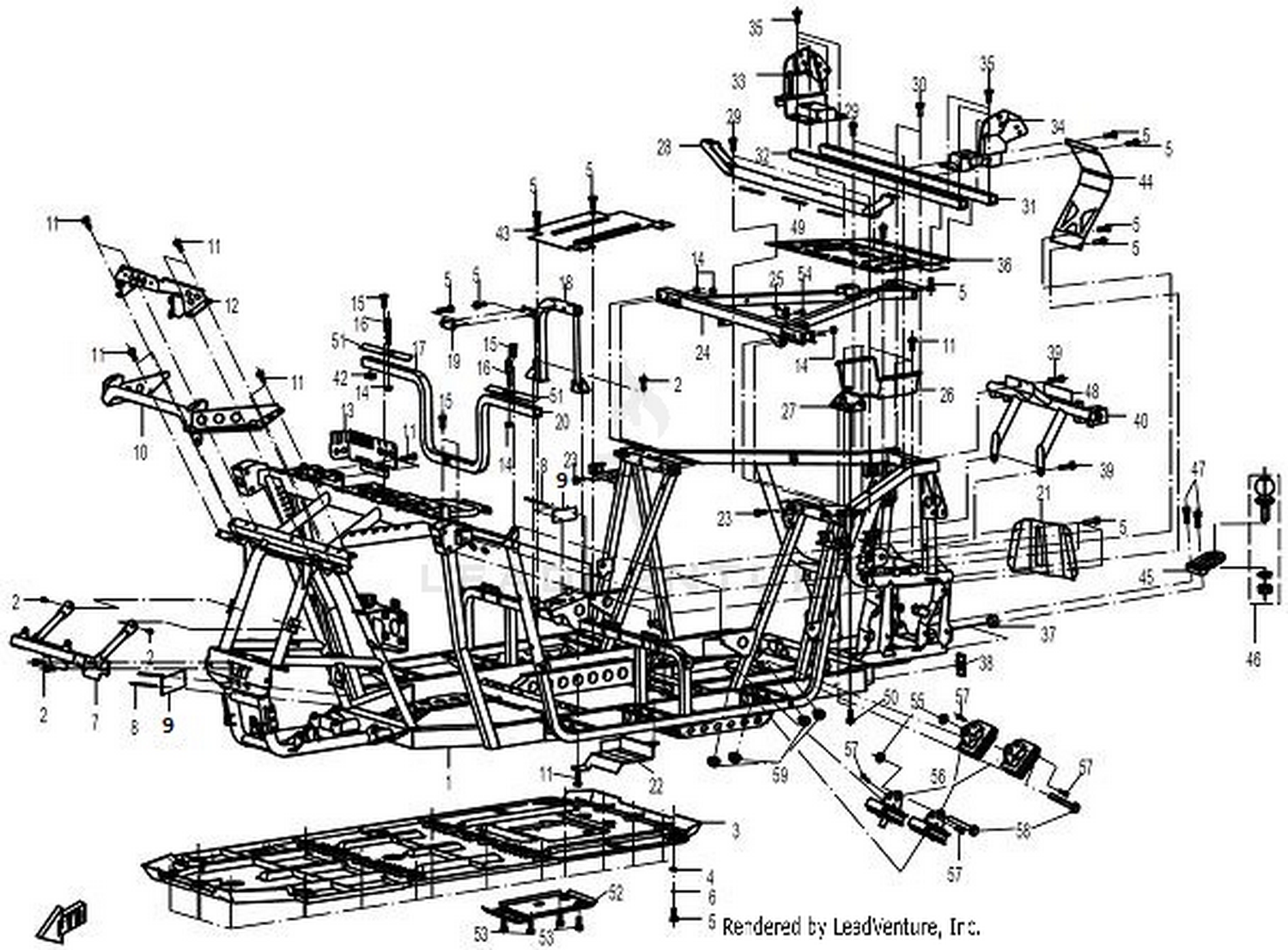

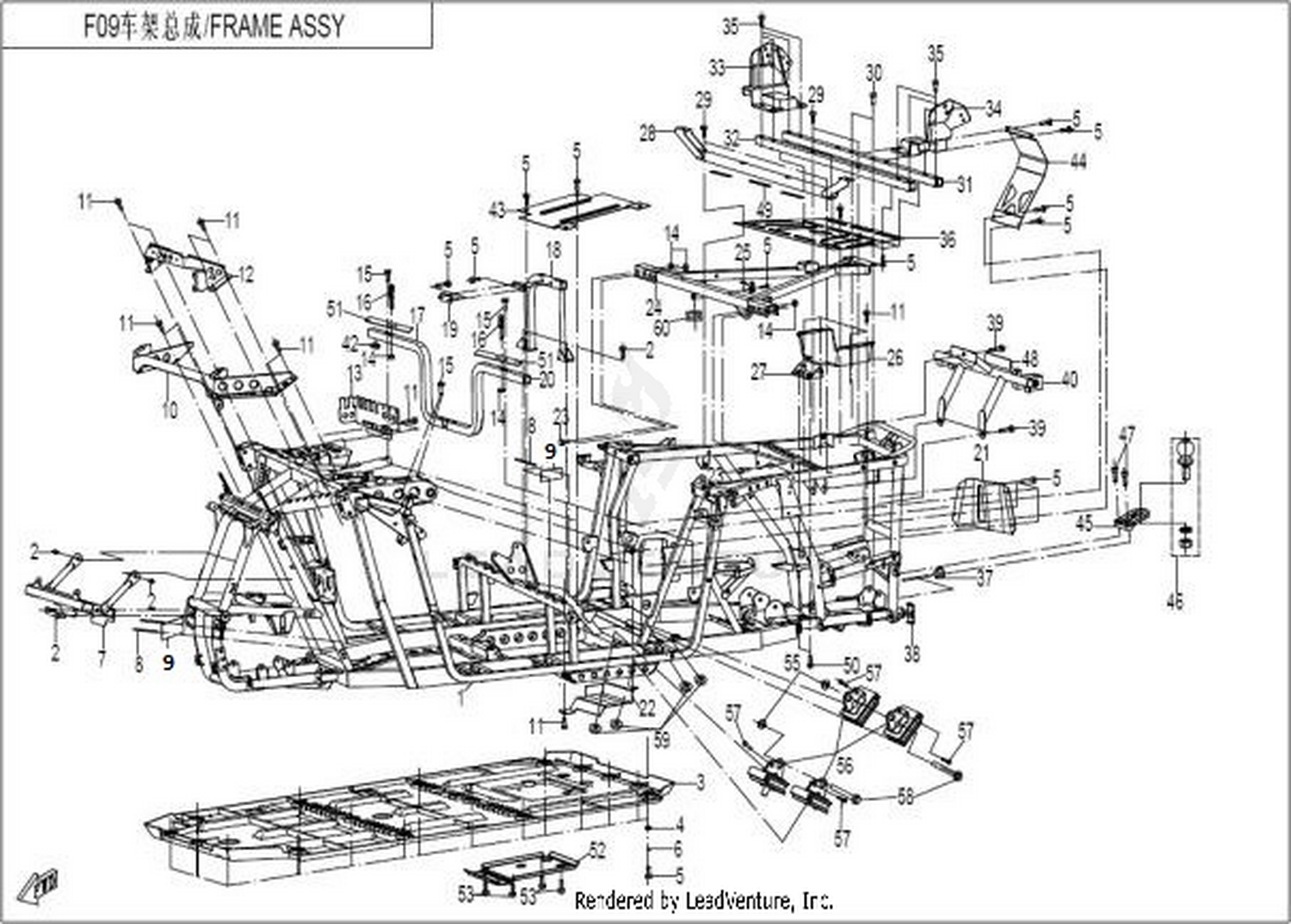

Location in exploded diagrams





Other parts on this diagram — Frame Assy
- #21 9060-030491 — Panel R, Fuel Tank
- #04 30204-102810 — Nut M10×1.25
- #33 9060-040028 — Skid Plate Gasket
- #14 30006-080040810 — Bolt M8×40
- #27 9060-038130-1000 — Front Connection Bracket, Rear Gear Case
- #34 9060-038201 — Bumper Lh Connecting Plate
- #40 9060-037910 — Rear Bumper Bracket Assy Electrophoresis Black+Mat
- #02 5BW1-401310-10000 — Towing Hitch Ball Assy 50Mm
- #52 9060-390001 — Lower Panel, Engine
- #04 30006-060016870 — Bolt M6×16
- #10 9060-037250-1000 — Mounting Bracket, Front Top Cover
- #20 9060-037663-00001 — Limit Lever, Seat
- #22 9060-030488 — Panel 2, Fuel Tank
- #28 9060-037760 — Cargo Box Front Support Beam Assy
- #07 30006-102030840 — Needs Description
- #14 30204-060810 — Nut M6
- #47 30102-102040840 — Needs Description
- #13 30006-060025840 — Needs Description
- #15 30303-060112 — Washer F6
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #17 9060-038030 — Needs Description
- #23 30006-080048840 — Needs Description
- #08 30006-080035810 — Bolt M8×35
- #36 9060-038120 — Heat Insulator Plate Assy
