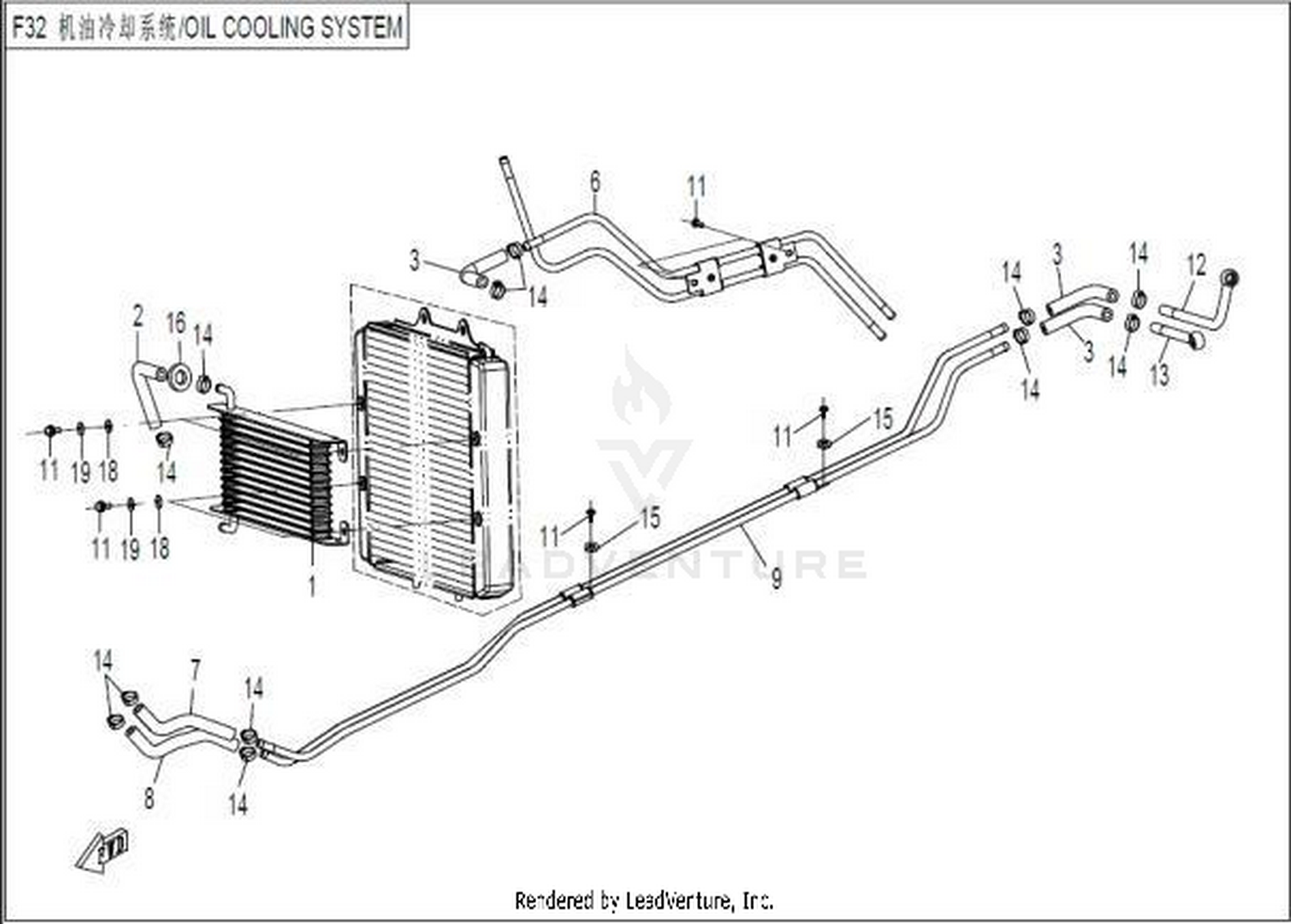

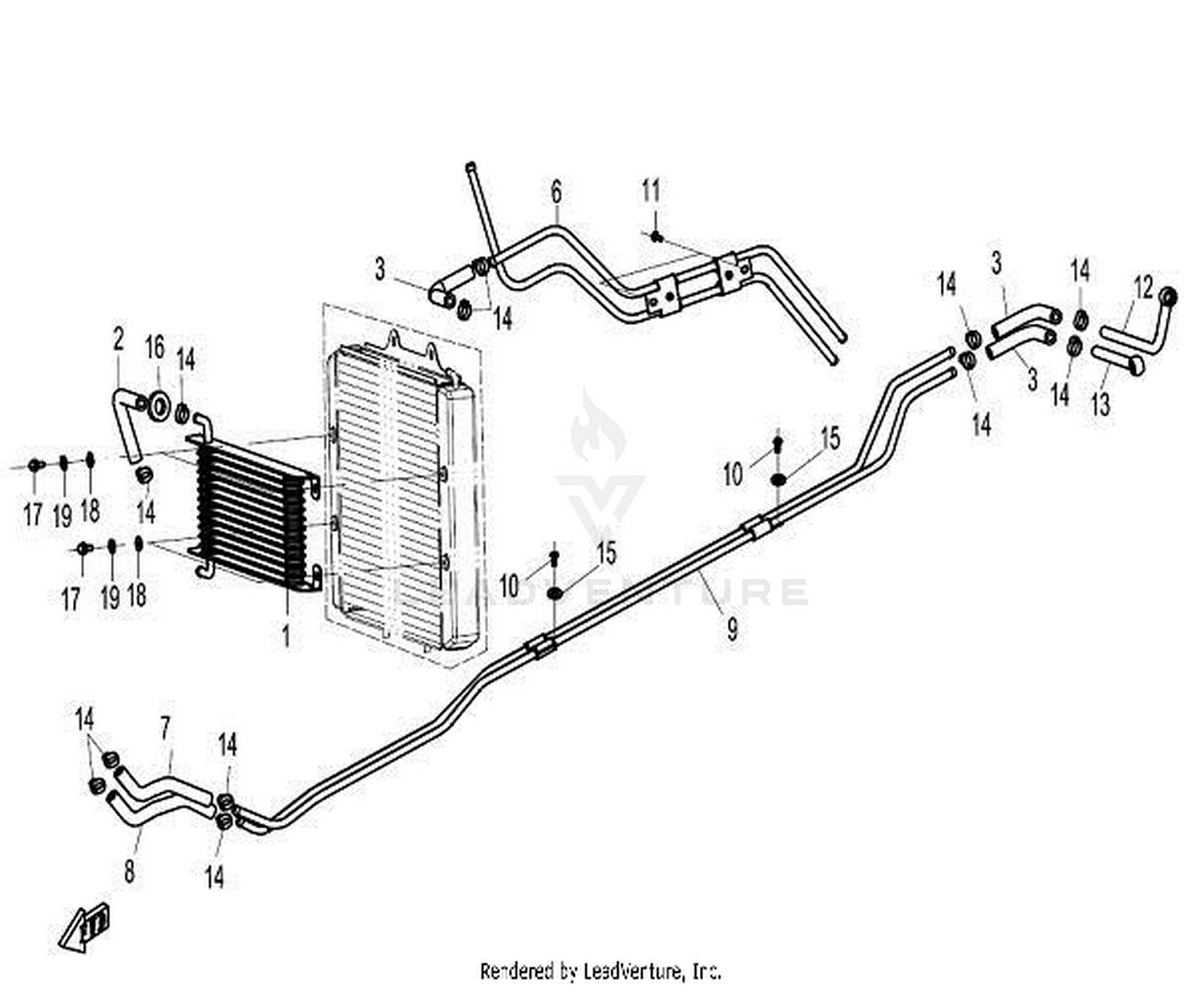

Location in exploded diagrams
Other parts on this diagram — Oil Cooling System
- #02 9060-180015-1000 — Oil Inlet Hose, Radiator
- #08 9060-180009 — Connecting Oil Hose 1
- #03 30604-116500 — Hose Clamp Qc & T620 16.5 (12~20)
- #04 9060-180028 — Oil Rubber Hose, Short
- #09 9060-181700-00003 — Oil Pipe 3
- #36 30306-060112 — Washer F6
- #04 9060-181500 — Bracket, Oil Radiator
- #24 30105-060016410 — Screw M6X16
- #14 30204-060810 — Nut M6
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #15 30303-060112 — Washer F6
- #01 9060-180800-1000 — Oil Radiator
- #06 9060-181600-10003 — Oil Pipe 3
- #27 9060-181100 — Oil Pipe 1
- #01 9060-180800 — Oil Radiator
- #07 9060-180019 — Connecting Oil Hose 2
- #24 9060-181200 — Oil Pipe 2
