Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (4)

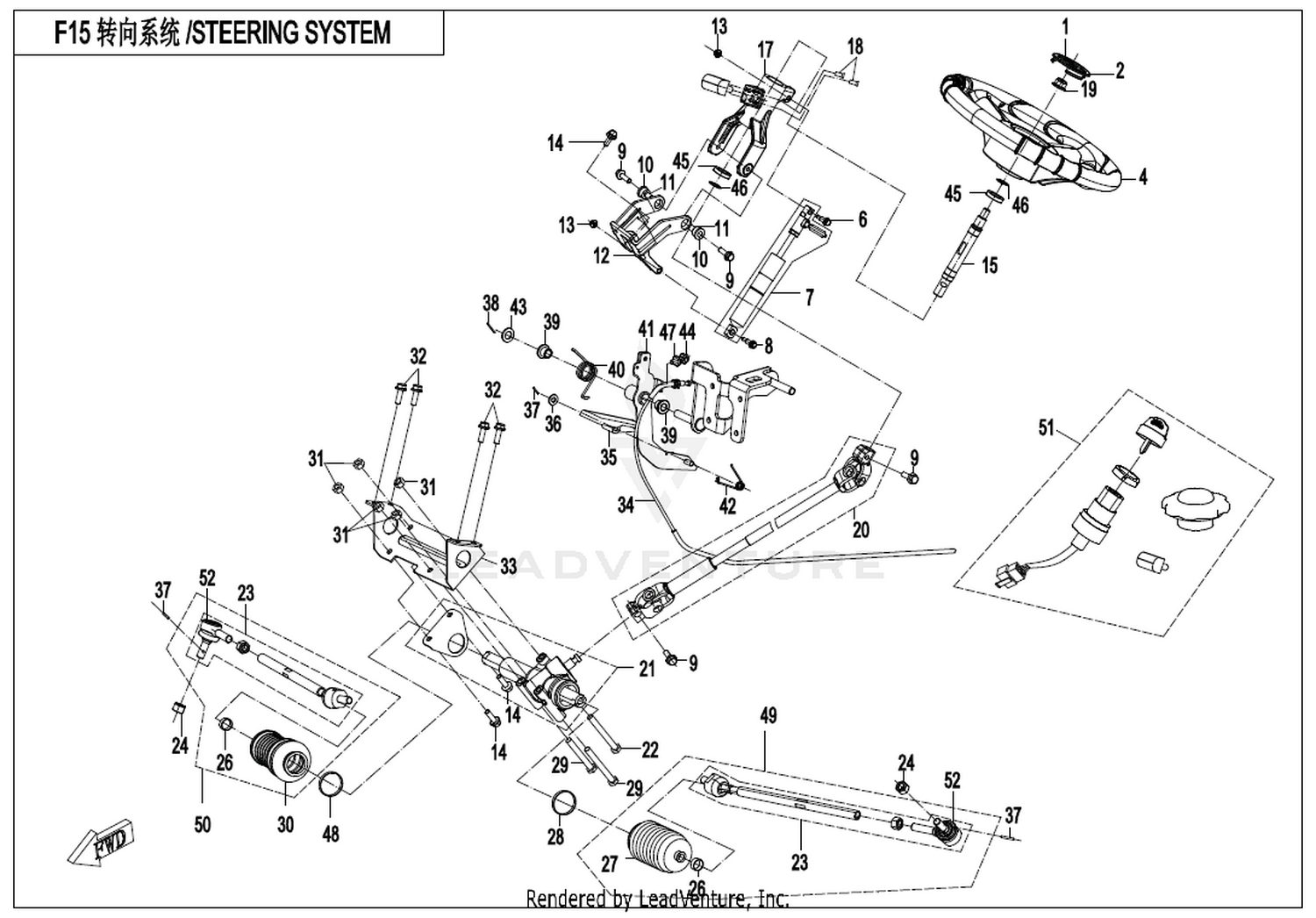

Location in exploded diagrams
Other parts on this diagram — Steering Wheel
- #22 9060-101170 — Steering Knuckle Ccvi
- #26 9060-101122 — Clamp Ccvi
- #12 9060-190001 — Cfmoto Logo 58X49 58X49
- #19 9060-102003-00002 — Air Spring Lower Fixed Bolt
- #25 30006-080020810 — Bolt M8X20@Color Zinc Plated
- #28 9060-104060 — Steering Motor
- #08 9060-037450 — Mounting Seat, Steering Motor
- #36 9060-105001 — Torsion Spring, Throttle
- #09 30801-02005 — Circlips For Shaft 20
- #02 9060-100003 — Steering Wheel Center Cover
- #11 30006-080025810 — Bolt M8×25
- #15 9060-100001-1000 — Steering Column
- #30 30019-080075810 — Bolt M8X75 M8X75
- #45 9060-104002-10000 — Jacket Of Joint-L Ccvi
- #34 9060-105020-1000 — Throttle Cable
- #25 30200-050840 — Needs Description
- #03 30306-120142 — Needs Description
- #14 9060-100009 — Steering Column Nylon Bushing
- #12 9060-101008-00001 — Mouning Bracket, Steering Wheel
- #23 9060-104020 — Steering Rod Assy
- #29 30019-080090840 — Needs Description
- #39 9060-105004 — Throttle Pedal
- #40 9060-105010-1B000 — Throttle Pedal Assy Black
- #14 8010-150003 — Tie Band 5X250
