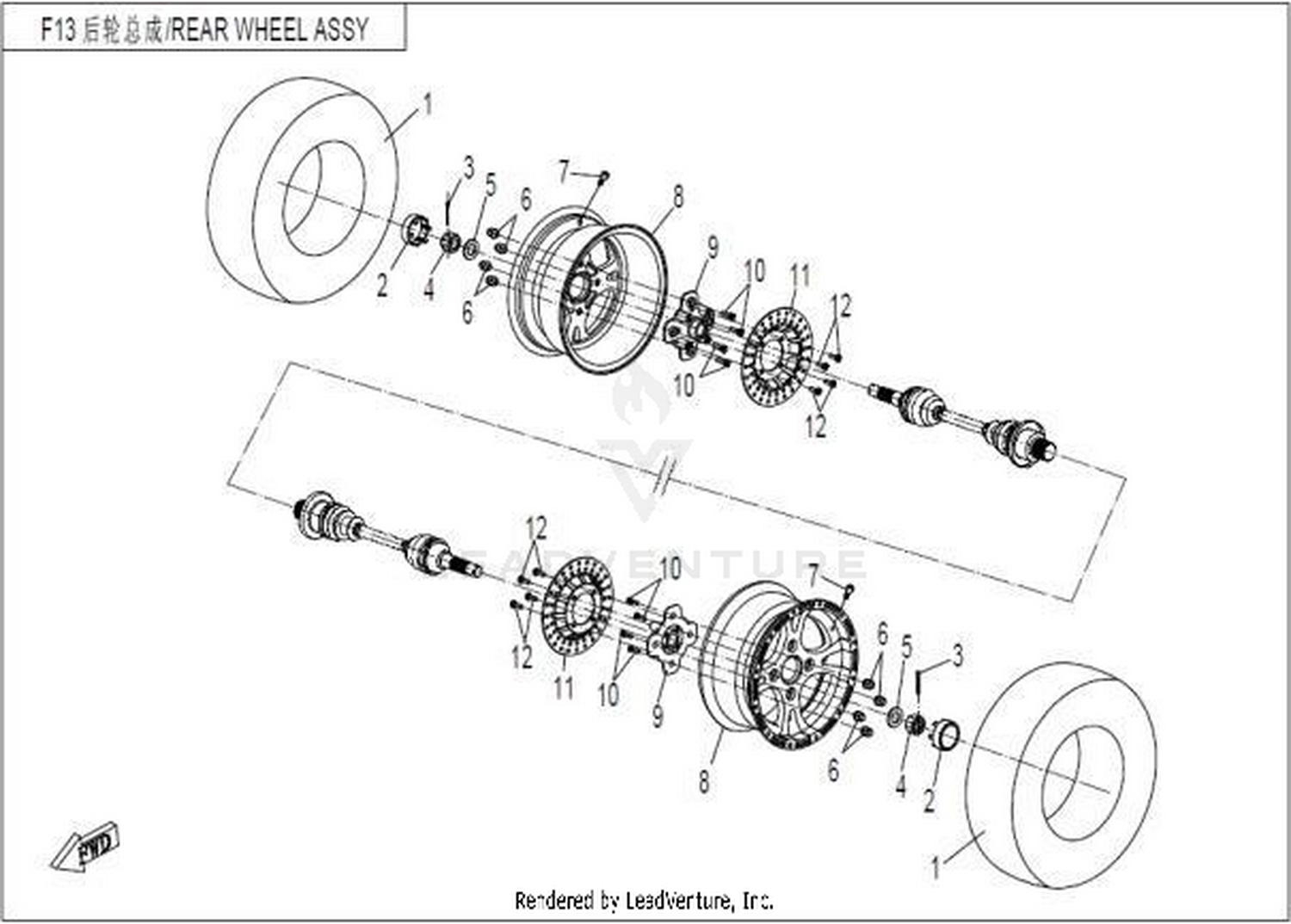

Location in exploded diagrams
Other parts on this diagram — Rear Wheel
- #01 30703-1221 — Rear Tire 25X10-12, 85J
- #08 9060-110001-10000 — Rear Wheel Hub
- #07 5190-070030-1000 — Inflation Valve
- #15 9010-280210 — Rear Rh Motion End Sleeve Assy
- #18 9010-270130 — Dust Boot Kit, Fixing End
- #01 30703-1223 — Rear Tire 25X10-12 85J, Off-Road, Usa
- #09 9010-070201 — Front Wheel Bracket Bolt
- #13 9010-270106 — Small Clamp, Fixing End
- #19 9010-270170-10000 — Dust Boot, Motion End
- #01 30703-1406 — Rear Tire 26X11-14, 54F, Usa
- #06 9050-040036 — Deco Cap, Alum.rim
- #08 9060-110100 — Rear Rim 14", Alum. Rim
- #10 9060-280111 — Rear Shaft, Lh Sps
- #01 30703-1404 — Tire 26×11-14 54J & 14''
- #04 9060-280200-30000 — Rear Cv Drive Shaft, Rh
- #12 9010-110100-A000 — Rear Rim Normally Polished
- #03 9060-280211-000S0 — Rear Shaft, Rh Sps
- #05 9010-070002-A000 — Mounting Nut, Rim Chrome Plated
- #09 9060-280100-30000 — Rear Cv Drive Shaft, Lh
- #08 9030-110100-E0000 — Rear Rim 12 In, New Alum. Rim, Suppliers:ren Ping Xin Fa
- #07 9010-280102-00001 — Wire Circlip
- #11 A000-080001 — Screw
- #04 30219-247810 — Nut M24X2 M24X2
- #13 9060-280110 — Bell Shape Set, Fixing End
