9060-060110Rear Upper Lh Swing Arm Assy Electrophoresis Black — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 103.82 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 95.99 | listing | cfmoto.quadzillaparts.co.uk |

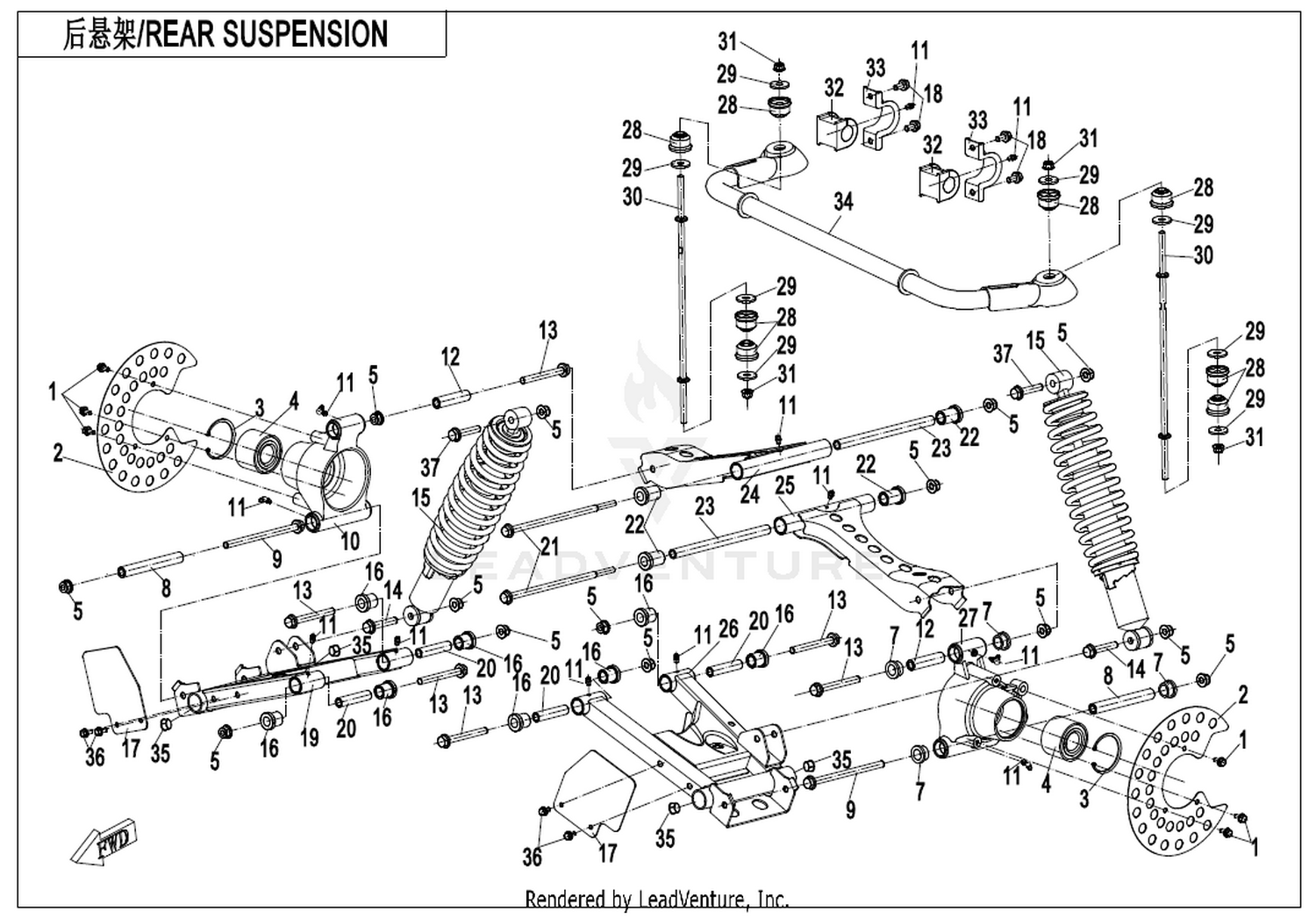

Location in exploded diagrams
Other parts on this diagram — Rear Suspension
- #04 30204-102810 — Nut M10×1.25
- #03 30006-102090810 — Bolt M10×1.25×90
- #19 9060-060410 — Rear Lower Rh Swing Arm Assy Electrophoresis Black
- #15 30204-080810 — Lock Nut M8
- #16 9060-060702-10002 — Rear Wheel Shaft Bracket Lower Middle Spacer
- #14 30006-102055840 — Needs Description
- #17 9060-060201-00002 — Rear Lower Swing Arm Middle Spacer
- #26 9060-060210 — Rear Lower Lh Swing Arm Assy Electrophoresis Black
- #32 9060-060602-1000 — Rear Sway Bar Rubber Seat
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #07 9060-060704 — Rear Wheel Shaft Bracket Lower Mounting Shaft
- #15 9060-060500-1000 — Rear Shock Absorber Dnm
- #24 4060-060101 — Rear Swing Arm Mounting Shaft
- #27 9060-060703-10001 — Needs Description
- #07 9030-060002 — Cover, Sway Bar
- #10 9060-060001 — Rear Brake Disc Guard
- #10 9060-060803-10001 — Needs Description
- #24 9060-050003 — Short Bushing, Swing Arm
- #20 9060-050002 — Long Bushing, Swing Arm
- #28 9060-060622 — Rear Sway Connecting Bar Rubber Seat
- #34 9060-060610 — Rear Sway Bar Assy
- #11 30800-06300 — Circlip For Hole 63
- #06 3120100 — Oil Cup
- #29 9060-050201 — Fender, Suspension
