Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 38.92 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 35.99 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

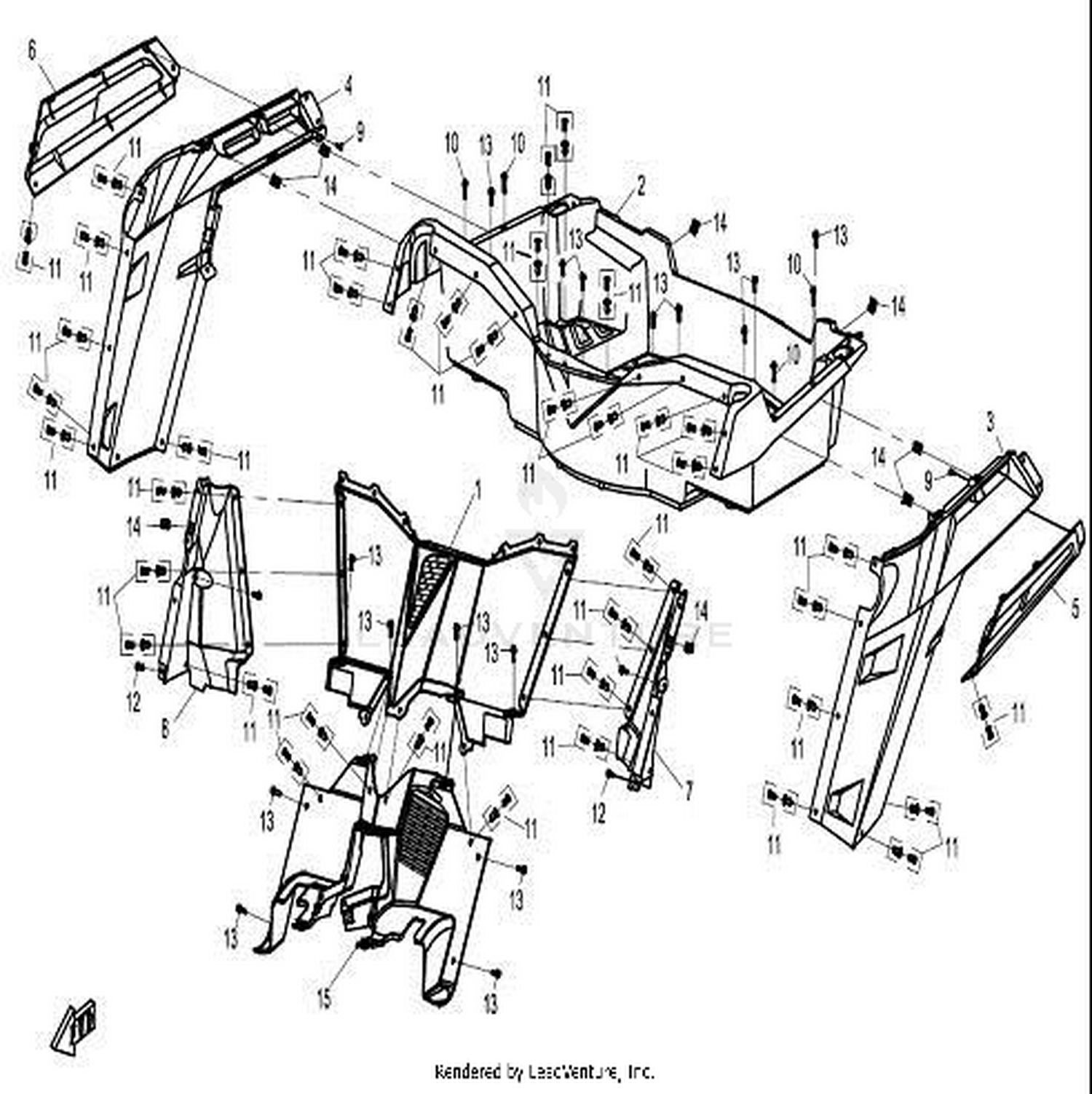

Other parts on this diagram — Plastic Parts 4
- #03 9060-040003-0B00 — Rear Lh Deco Plate Black
- #04 9060-040004-0Y20 — Rear Rh Deco Plate Light Yellow
- #07 9060-040021 — Lh Connecting Plate
- #04 30006-060016870 — Bolt M6×16
- #02 9060-040023 — Rear Cargo Box
- #03 9060-040003-0Y20 — Rear Lh Deco Plate Light Yellow
- #04 9060-040004-0B00 — Rear Rh Deco Plate Black
- #08 9060-040022 — Rh Connecting Plate
- #08 8030-040800-00001 — Nut Clip M6 M6
- #03 9060-040003-0H20 — Rear Lh Deco Plate Metal Grey
- #03 9060-040003-0E40 — Needs Description
- #04 9060-040004-0E40 — Rear Rh Deco Plate Metal Blue
- #07 30110-421130010 — Self-Tapping Screw St4.2X13@Color Zinc Trivalent Chromium
- #15 9060-040034 — Rear Lower Fender
- #03 9060-040003-0W00 — Rear Lh Deco Plate New Maple Camo
- #04 9060-040004-0R40 — Rear Rh Deco Plate Ferrari Red
- #04 9060-040004-0V20 — Rear Rh Deco Plate Pearl White
- #06 30102-060025810 — Screw M6X25
- #03 9060-040003-0V20 — Rear Lh Deco Plate Pearl White
- #04 9060-040004-0W00 — Rear Rh Deco Plate New Maple Camo
- #05 9060-040001 — Lh Rear Protector
- #15 9060-040310 — Clamp Assy
- #03 9060-040003-0R40 — Rear Lh Deco Plate Ferrari Red
- #04 9060-040004-0H20 — Rear Rh Deco Plate Metal Grey
