Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

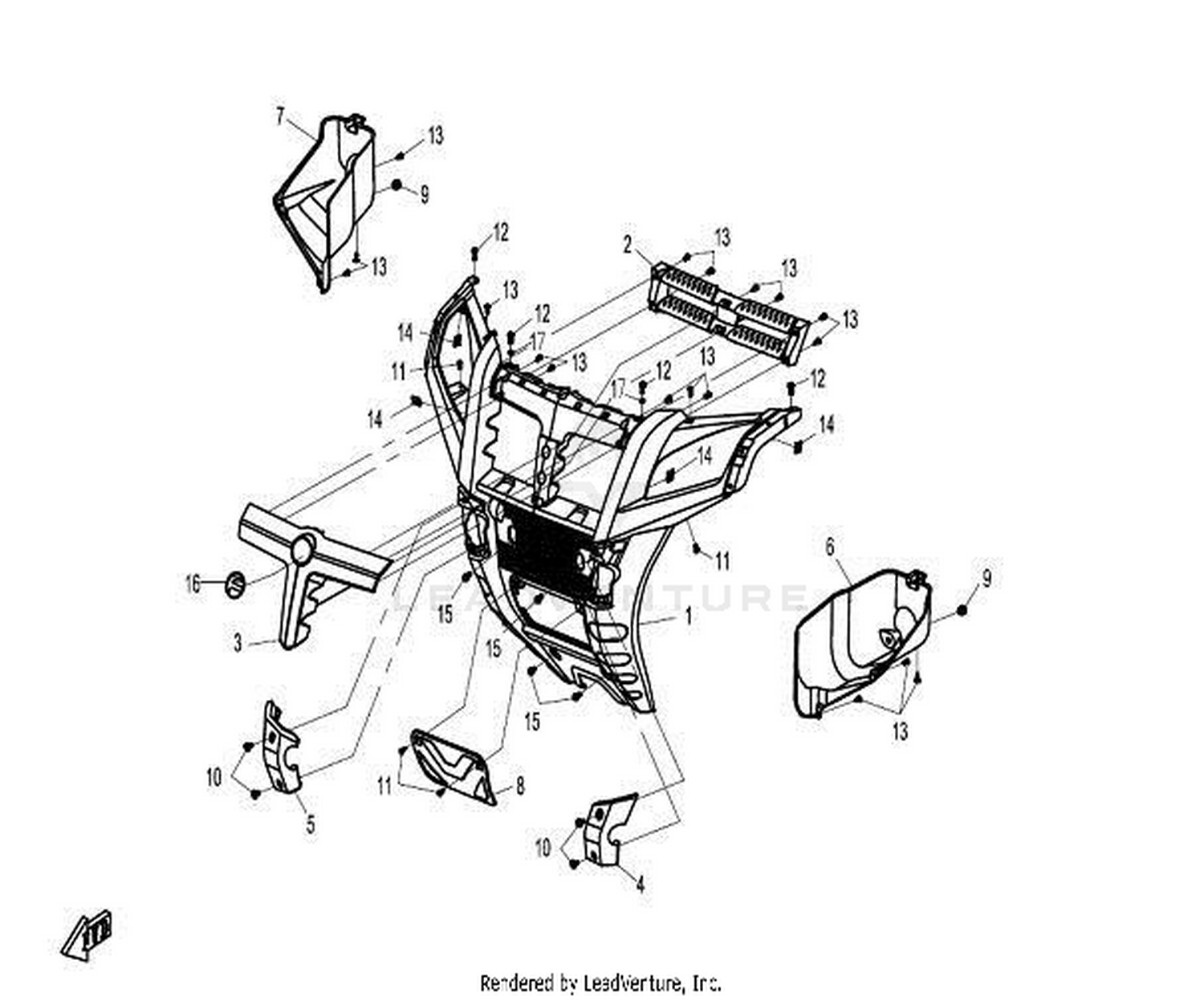

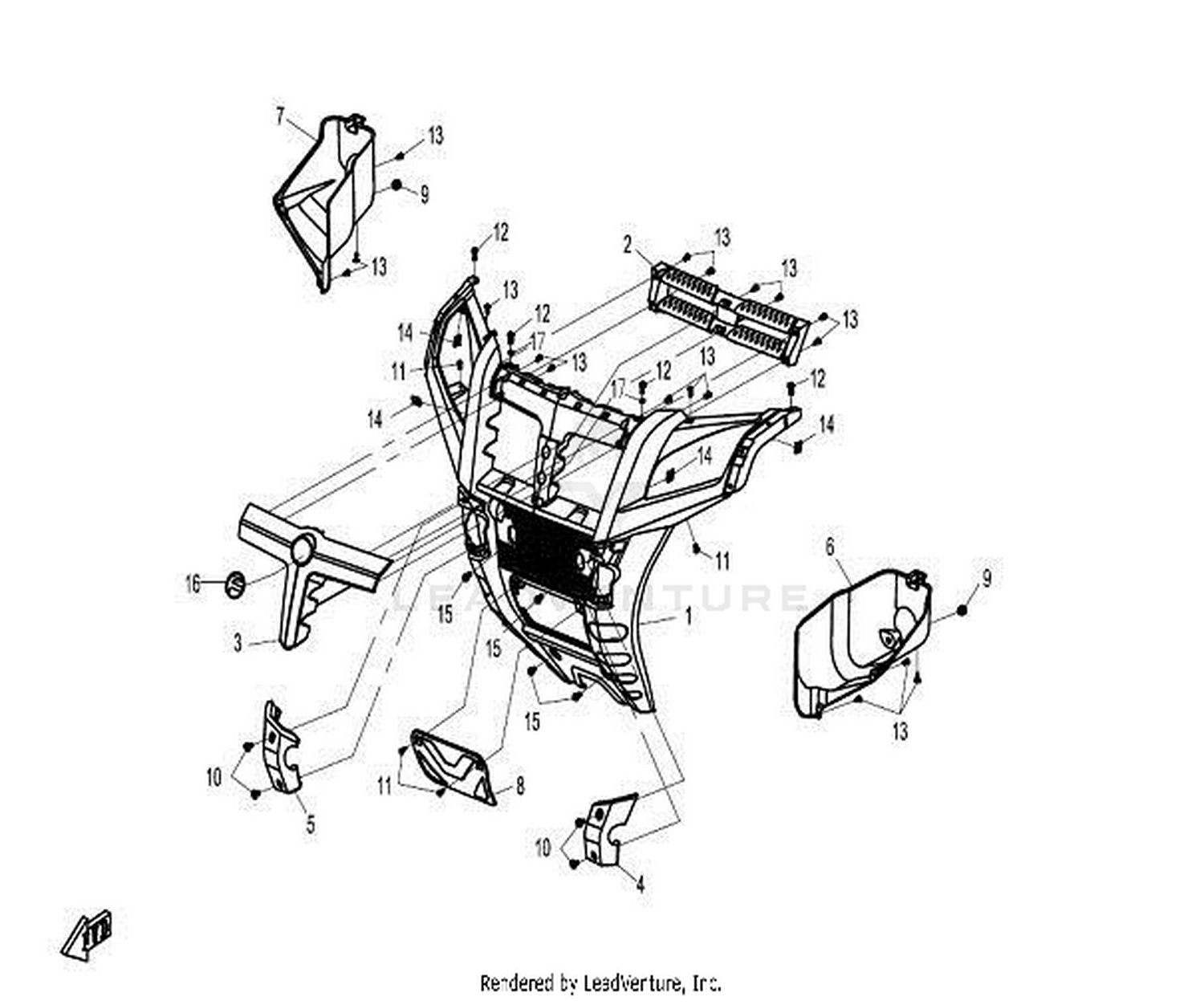

Location in exploded diagrams
Other parts on this diagram — Front Face
- #01 9060-040201 — Front Panel
- #03 9060-040202-0W00 — Needs Description
- #10 30110-480160010 — Self-Tapping Screw St4.8X16@Color Zinc Trivalent Chromium
- #02 9060-040203-0V10 — Vent Grille Silver White
- #03 9060-040202-0V20 — Front Deco Plate Pearl White
- #08 9060-040017 — Cover, Winch
- #19 8010-000002 — Clamp St4.2
- #03 9060-040202-0H20 — Front Deco Plate Metal Grey
- #03 9060-040202-0E40 — Needs Description
- #09 9050-040033 — Headlight Adjustment Rubber
- #04 30006-060016870 — Bolt M6×16
- #03 9060-040202-0B00 — Front Deco Plate Black
- #04 9060-040204 — Lh Front Rubber Block
- #17 5BY0-000303 — Screw M6X17.5, Soundbox Cover
- #12 9060-190001 — Cfmoto Logo 58X49 58X49
- #03 9060-040202-0Y20 — Front Deco Plate Light Yellow
- #05 9060-040205 — Front Rh Bumper Block
- #07 30110-421130010 — Self-Tapping Screw St4.2X13@Color Zinc Trivalent Chromium
- #22 30305-060112 — Washer F6@Color Zinc Trivalent Chromium
- #03 9060-040202-0R40 — Front Deco Plate Fire Red
- #06 9060-040025 — Headlight Guard, Lh
- #24 30105-060016410 — Screw M6X16
