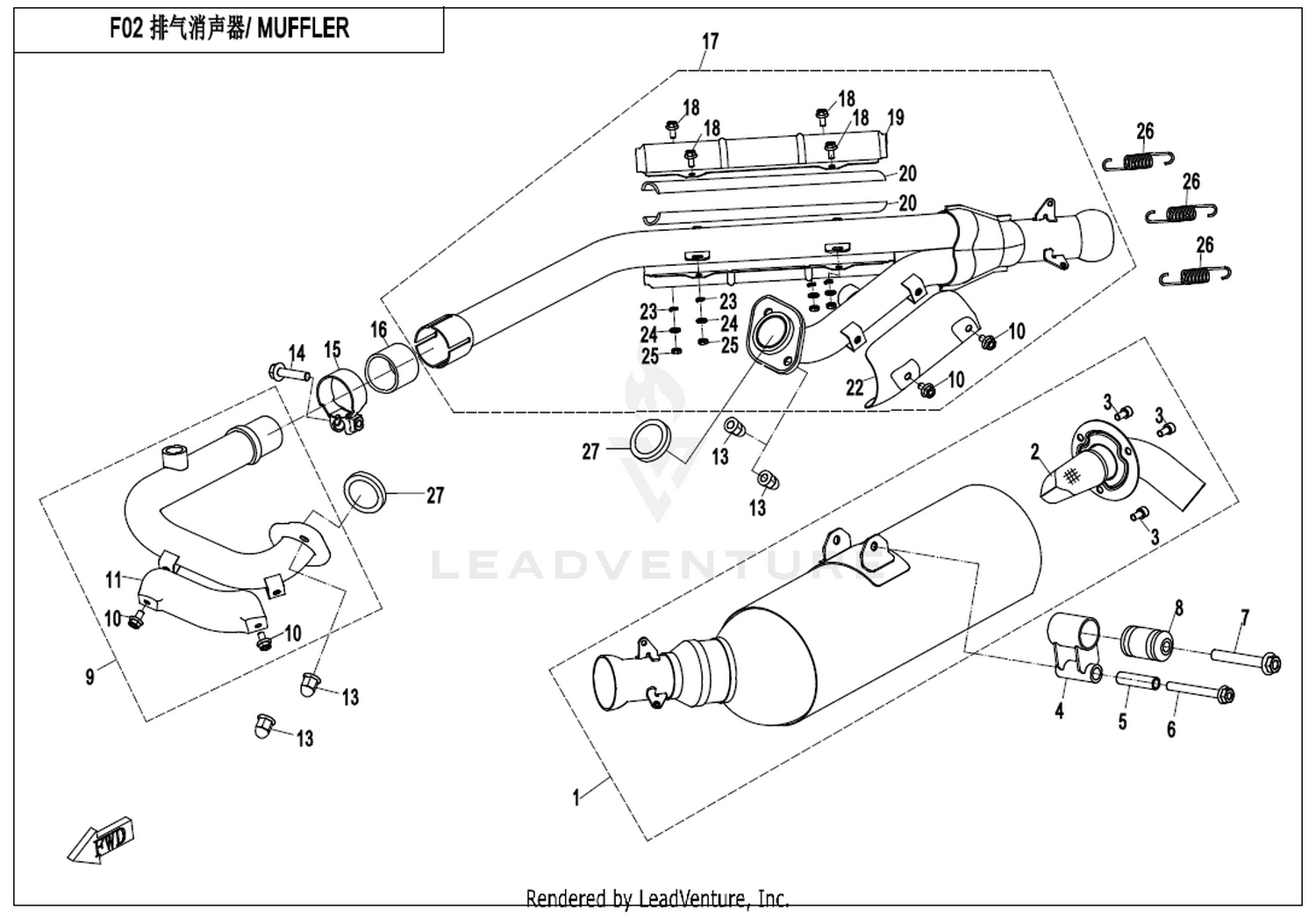

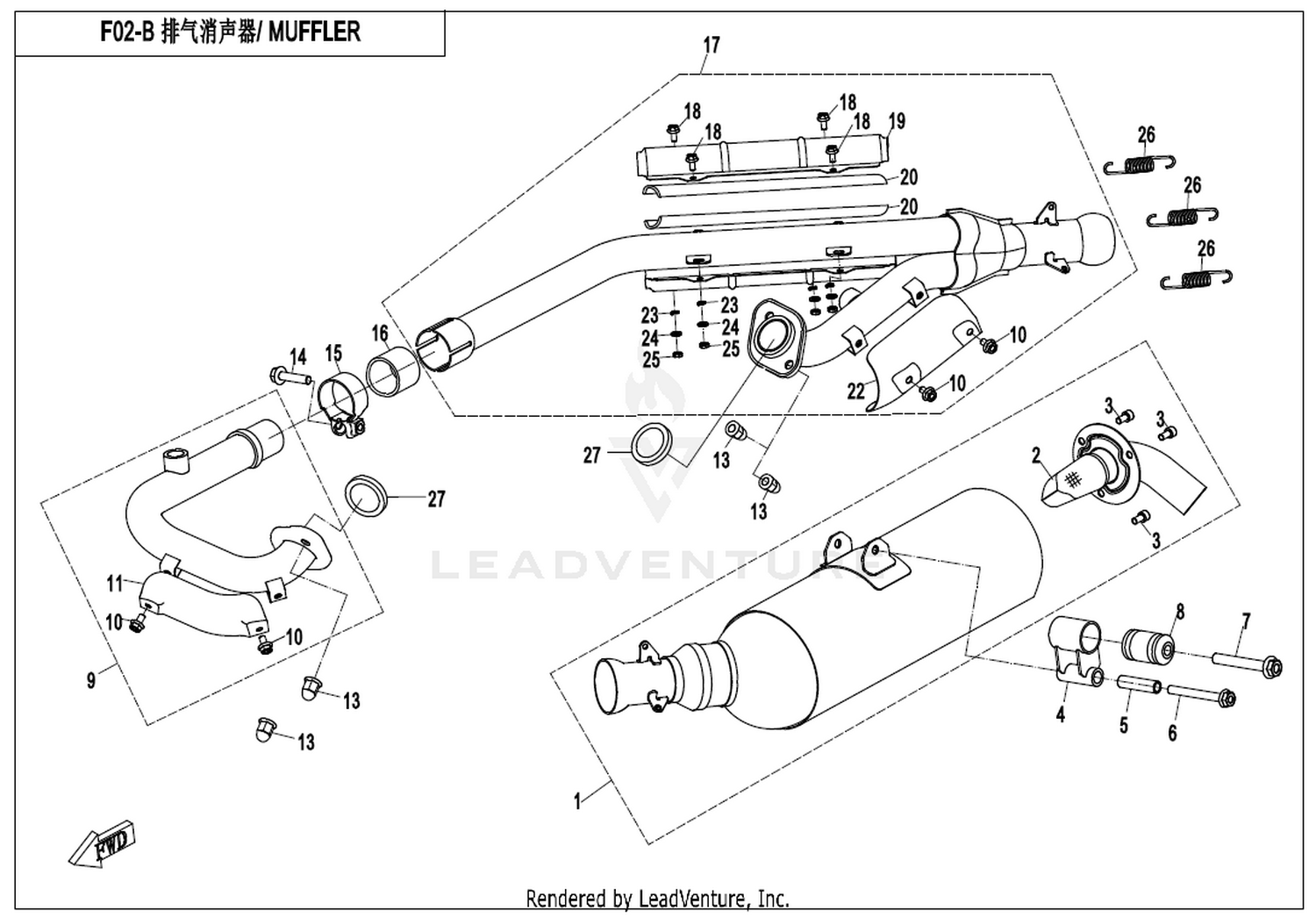

Location in exploded diagrams






Other parts on this diagram — Muffler
- #02 7020-021320-10000 — Spark Arrestor
- #23 30006-080065810 — Bolt M8X65
- #09 7020-021100-00001 — Front Exhaust Pipe, Front Cylinder
- #12 9030-020002 — Spring
- #10 30006-050012810 — Bolt M5×12
- #01 0800-022300 — Exhaust Pipe Gasket Assy
- #24 30300-050112 — Washer
- #19 30102-060012810 — Screw M6×12
- #10 30200-050810 — Nut M5
- #01 7020-021300-10002 — Needs Description
- #24 9CR6-020003 — Wire Washer
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #13 30006-060010810 — Bolt M6×10
- #03 8010-020001 — Nut M8, Muffler Joint M8
- #16 A000-020003 — Graphite Seal Bushing &
- #19 7020-021202 — Heat Insulator 2, Middle Exhaust Pipe
- #22 7020-021201 — Cylinder 2 Heat Insulator
- #01 7020-021300-10001 — Muffler Assy
- #12 9010-050500 — Cushion Sleeve Assy
- #25 7020-020001 — Muffler Liner
- #11 7020-021101 — Heat Insulator, Front Cylinder
- #08 30006-080035810 — Bolt M8×35
- #17 7020-021200-10002 — 2 In 1 Exhaust Pipe Assy
- #20 7020-021203 — Glass Fabric Insulator
