Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 473.89 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 438.12 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

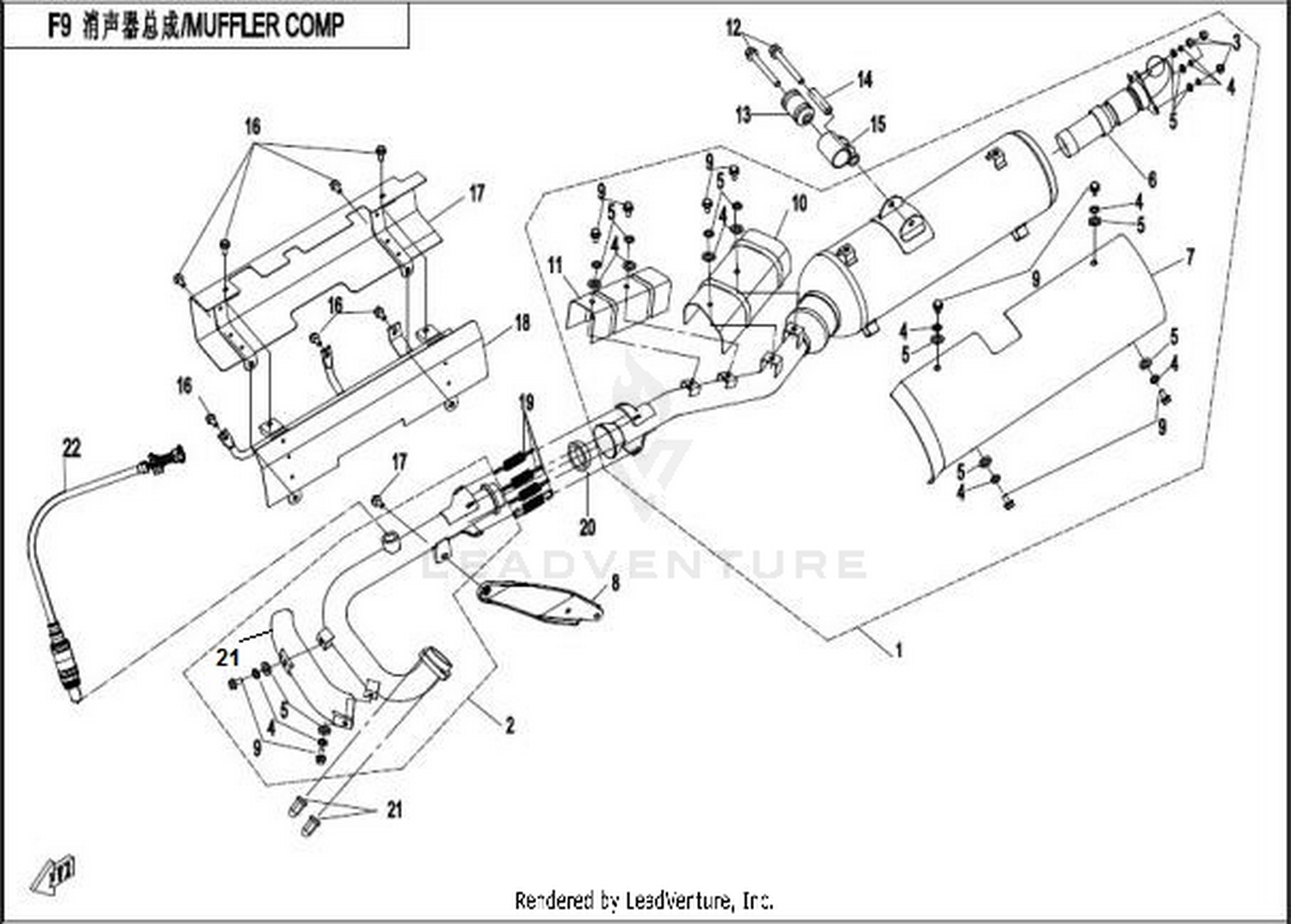

Other parts on this diagram — Muffler Comp
- #09 9050-020150-20000 — Tail Pipe, Exhaust
- #23 30006-080065810 — Bolt M8X65
- #18 401C-002100 — Inner Pipe, Exhaust
- #07 401C-021203 — Heat Insulator, Muffler Body
- #13 401C-020010 — Cushion Sleeve Assy
- #05 9CR6-020002-00001 — Drag Spring,Muffler
- #02 401C-021100-10001 — Exhaust Pipe Assy
- #08 401C-020030-10000 — Front Support, Muffler
- #25 7020-020001 — Muffler Liner
- #07 9010-020102-10001 — Seal Sleeve, Graphite
- #16 30206-060540 — Nut M6 M6
- #04 30000-060012820 — Hex Bolt M6X12
- #15 401C-020020-00001 — Mount Assy, Muffler
- #03 8010-020001 — Nut M8, Muffler Joint M8
- #15 30303-060112 — Washer F6
- #10 9CR6-021202 — Head Insulation, Catalytic Converter
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
- #14 018B-176000 — Oxygen Sensor
- #14 30306-060800 — Washer F6
- #11 401B-021201 — Heat Insulator
- #17 401C-002200 — Outer Cover 1, Exhaust Pipe
- #21 401C-021101 — Heat Insulator Plate, Exhaust Pipe
