Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

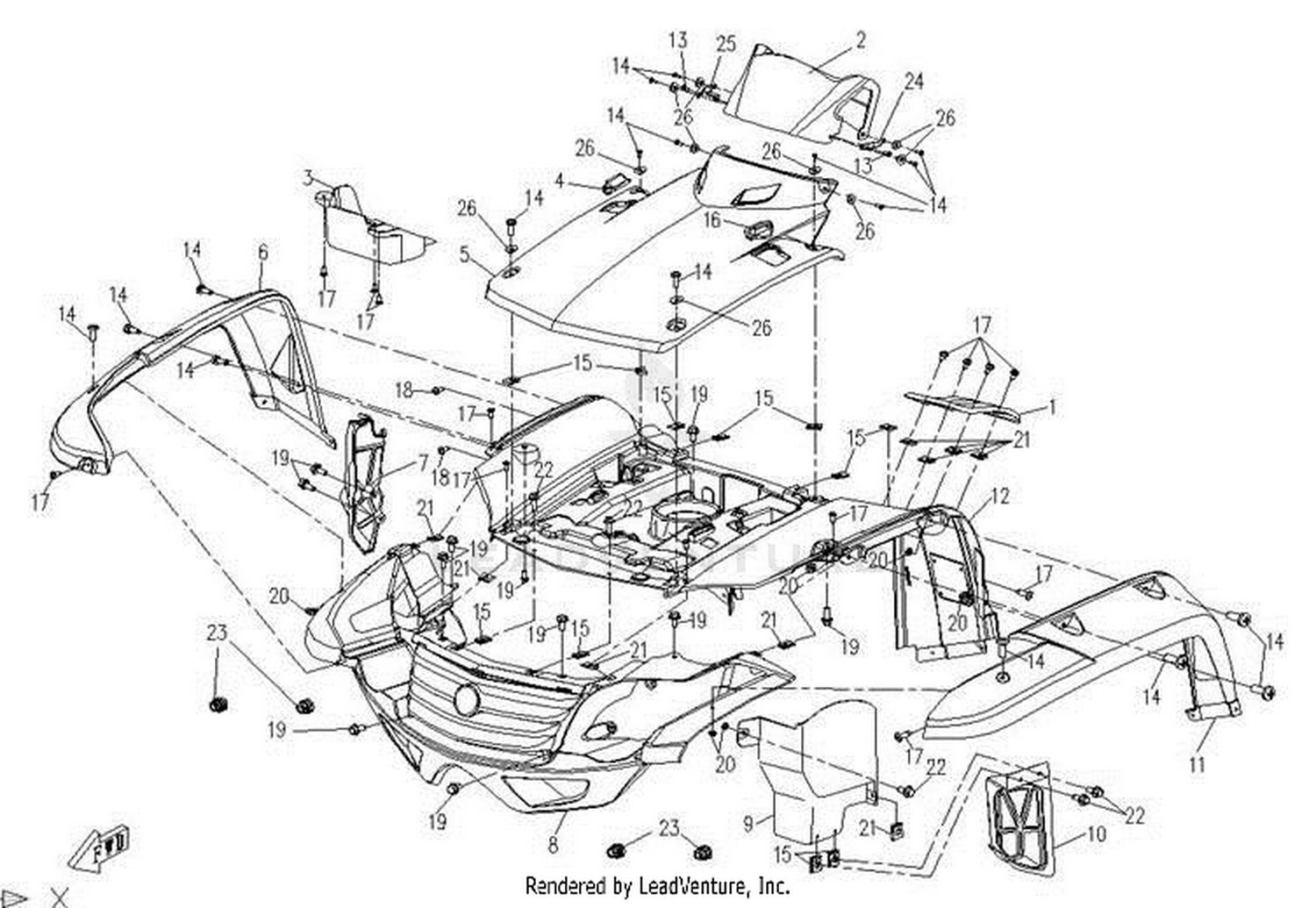

Other parts on this diagram — Plastic Parts -I
- #02 9050-040012-0V20 — Cover, Dashboard Pearl White
- #03 9050-040027 — Electric Door Lock Fender
- #05 9050-040015-0W00 — Front Top Cover New Maple Camo
- #07 9050-040032 — Front Rh Inner Fender
- #12 9050-040002-0B10 — Front Fender Black+Blue
- #12 9050-040002-0V20 — Front Fender Pearl White
- #07 30110-421130010 — Self-Tapping Screw St4.2X13@Color Zinc Trivalent Chromium
- #09 9050-040033 — Headlight Adjustment Rubber
- #02 9050-040012-0W00 — Cover, Dashboard New Maple Camo
- #04 9050-040029 — Front Rh Panel Small Cover
- #05 9050-040015-0P10 — Front Top Cover Injected Black
- #08 9050-040022 — Front Ventilation Plate
- #12 9050-040002-0W00 — Front Fender New Maple Camo
- #12 9050-040002-0E40 — Front Fender Metal Blue
- #11 30110-420160010 — Self-Tapping Screw St4.2×16
- #01 9050-040035 — Gearshift Cover Plate
- #02 9050-040012-0P30 — Cover, Dashboard Injected Red
- #05 9050-040015-0V20 — Needs Description
- #05 9050-040015-0E40 — Front Top Cover Metal Blue
- #09 9050-040024 — Gearshift Fender
- #12 9050-040002-0P30 — Front Fender Injected Red
- #24 30105-060016410 — Screw M6X16
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #25 9050-040200 — Dashboard Guard Rh Bracket Assy
