Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

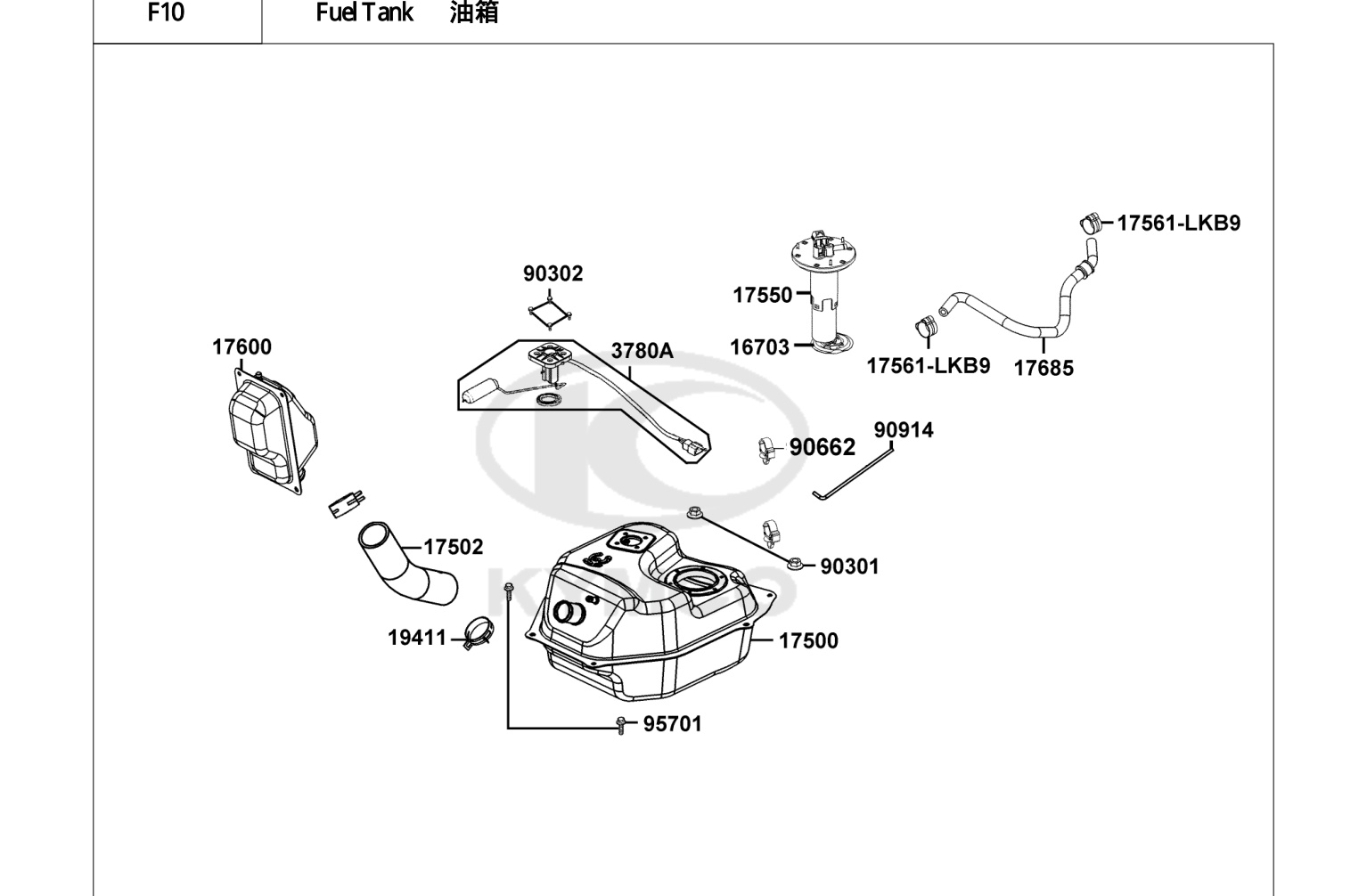

Location in exploded diagrams
Other parts on this diagram — 油箱
- #16703 16703-AGE7-C00 — FUEL FILTER COMP
- #17500 17500-AGD8-C00 — TANK COMP FUEL
- #17502 17502-AGE7-C00 — HOSE FUEL
- #17550 17550-AGE7-C00 — PUMP ASSY
- #17685 17685-AGE7-C00 — TUBE FUEL
- #19411 19411-KBCB-900 — CLIP HOSE
- #3780A 3780A-AGE7-C00 — FUEL UNIT
- #17600 17600-AGE7-C00 — COVER TANK
- #90301 90301-6D34-C01 — NUT FLANGE 6MM(C)
- #90662 90662-ZZA6-E03 — HARNESS CLAMP D18-D11
- #90914 90914-AGE7-C00 — TUBE ASSY. WATER
- #95701 95701-06012-08G — BOLT FLANGE 6*12
