9030-370901RUBBER DAMPER — Genuine CF MOTO Part
CF MOTOoem
9030-370901 - RUBBER DAMPER #24
Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

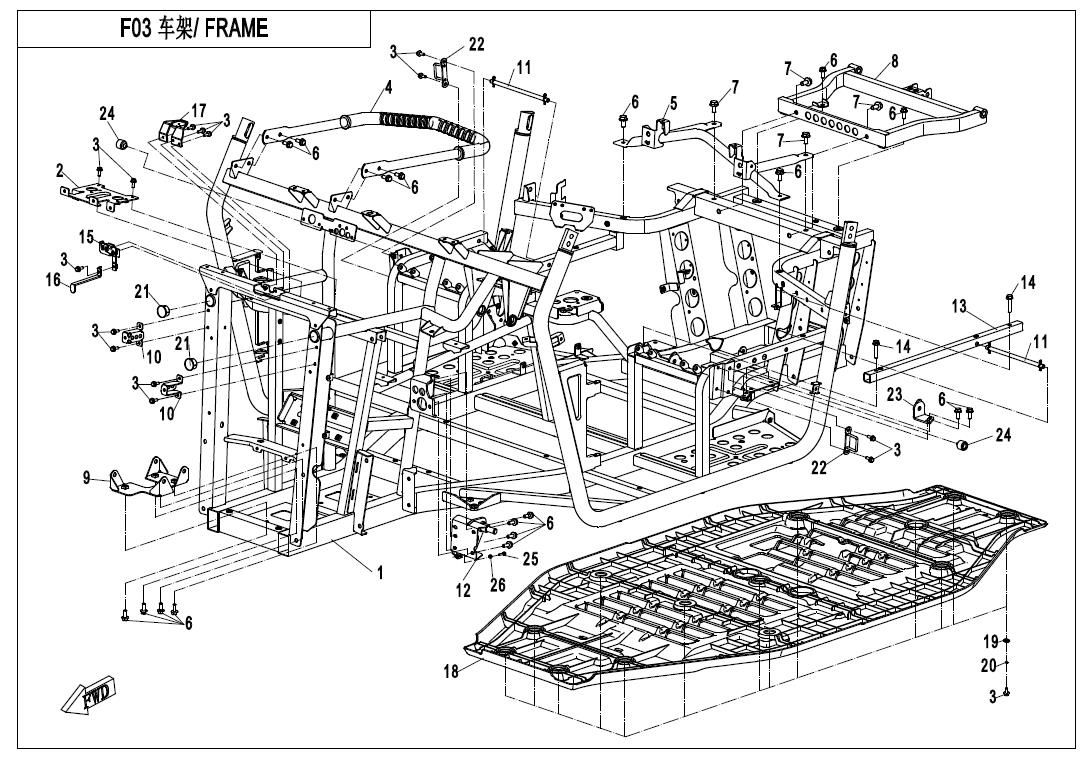

Location in exploded diagrams
Other parts on this diagram — FRAME
- #1 7030-030100-10000 — FRAME ASSY, EPS
- #2 7030-037110 — UPPER BRACKET?RADIATOR
- #3 30006-060016810 — BOLT M6X16 Replacing: 30006-060016840 - BOLT
- #4 7030-037210 — FRONT ARMREST
- #5 7030-037400 — BRACKET?SEAT BELT LOCK
- #6 30006-080020810 — BOLT M8X20 Replacing: 30006-080020840 - BOLT M8X20 NLA USE 30006-080020810
- #7 30006-102025810 — BOLT M10X1.25X25 Replacing: 30006-102025840 - BOLT M10X1.25X25
- #8 7030-037600 — BRACKET, CARGO BOX
- #9 7030-038110-10000 — BRACKET FRONT AXLE Replacing: 7030-038110 - BRACKET, FRONT AXLE
- #10 7030-038210 — BRACKET, FRONT TOP COVER
- #11 7030-037810 — ROD, SEAT LOCK
- #12 7030-039110 — BRACKET, FOOT PEDAL ELECTROPHORESIS BLACK
- #13 7030-037710 — INNER BEAM, LH SEAT ELECTROPHORESIS BLACK
- #26 30200-060810 — NUT M6 Replacing: 30200-060840 - NUT M6
- #14 30006-080040810 — BOLT M8X40 Replacing: 30006-080040840 - BOLT M8X40
- #15 7030-010200 — LOCK, FRONT COVER
- #16 7030-010201 — LEVER,FRONT COVER LOCK
- #17 7030-040192 — SUPPORT PLATE SERING
- #18 7030-040711-10000 — BASE PLATE Replacing: 7030-040711 - BASE PLATE
- #19 9060-040028 — BASE PLATE GASKET
- #20 30303-060112 — WASHER Replacing: 30303-060142 - WASHER
- #21 9060-038123 — FRAME PLUG
- #22 7030-370700 — LOCK HOOK
- #23 7030-038711 — REAR JOINT ENGINE
