Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 103.82 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 95.99 | listing | cfmoto.quadzillaparts.co.uk |

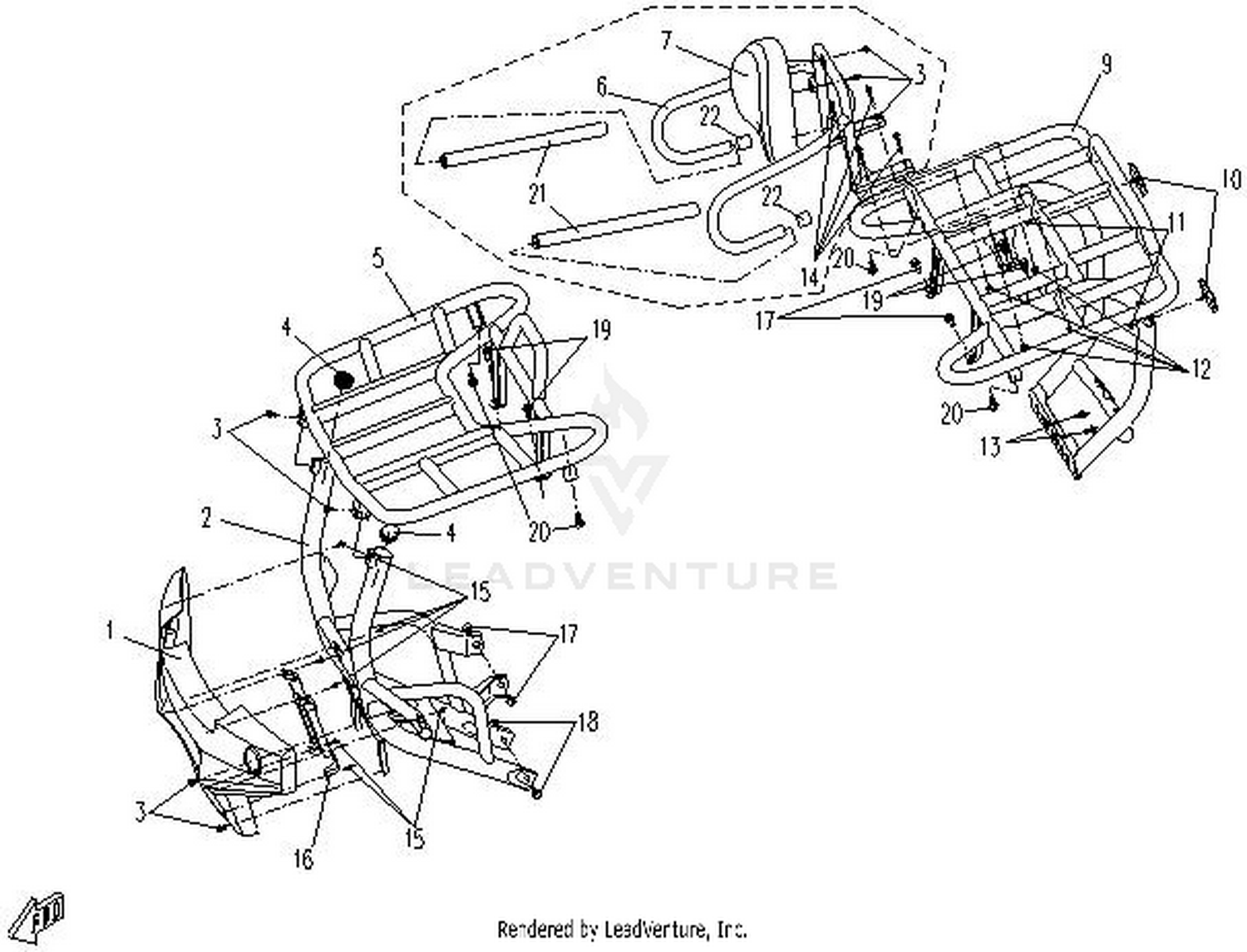

Location in exploded diagrams
Other parts on this diagram — Rack & Bumper
- #01 9020-040001 — Bumper Deco Plate
- #09 9020-140100-A000 — Rear Rack Assy
- #25 30006-080020810 — Bolt M8X20@Color Zinc Plated
- #08 5190-160230-00002 — Rear Reflector
- #18 30006-080012810 — Bolt M8×12
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #06 30202-050110 — Nut M5
- #28 30006-080014840 — Needs Description
- #04 9010-040027 — Bumper Deco Cover
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
- #04 30006-060016870 — Bolt M6×16
- #05 9020-140200 — Front Rack Assy
- #11 30110-420160010 — Self-Tapping Screw St4.2×16
- #09 9020-140100 — Rear Rack Assy
- #16 9020-040029 — Cap, Air Inlet Port
