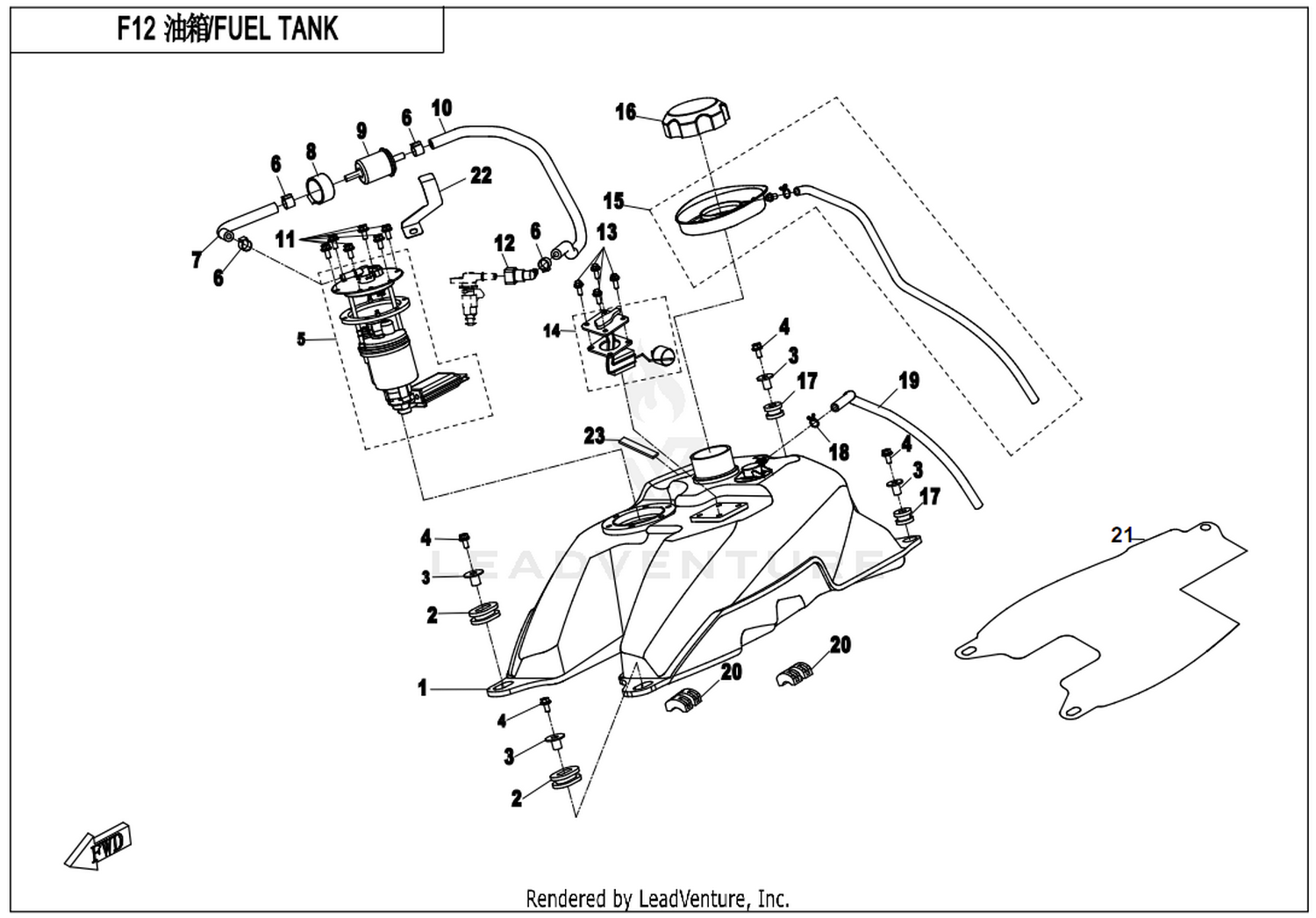

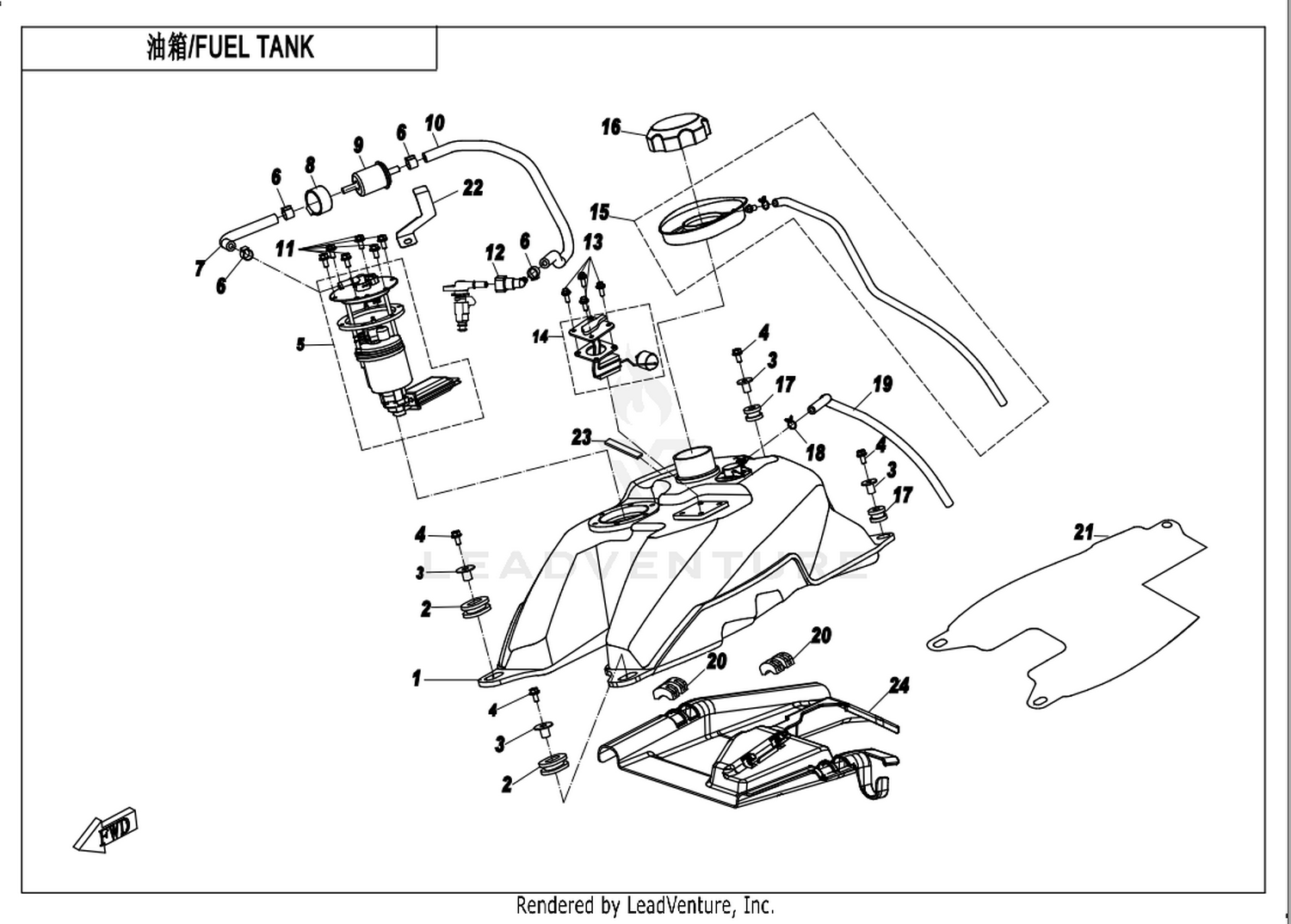

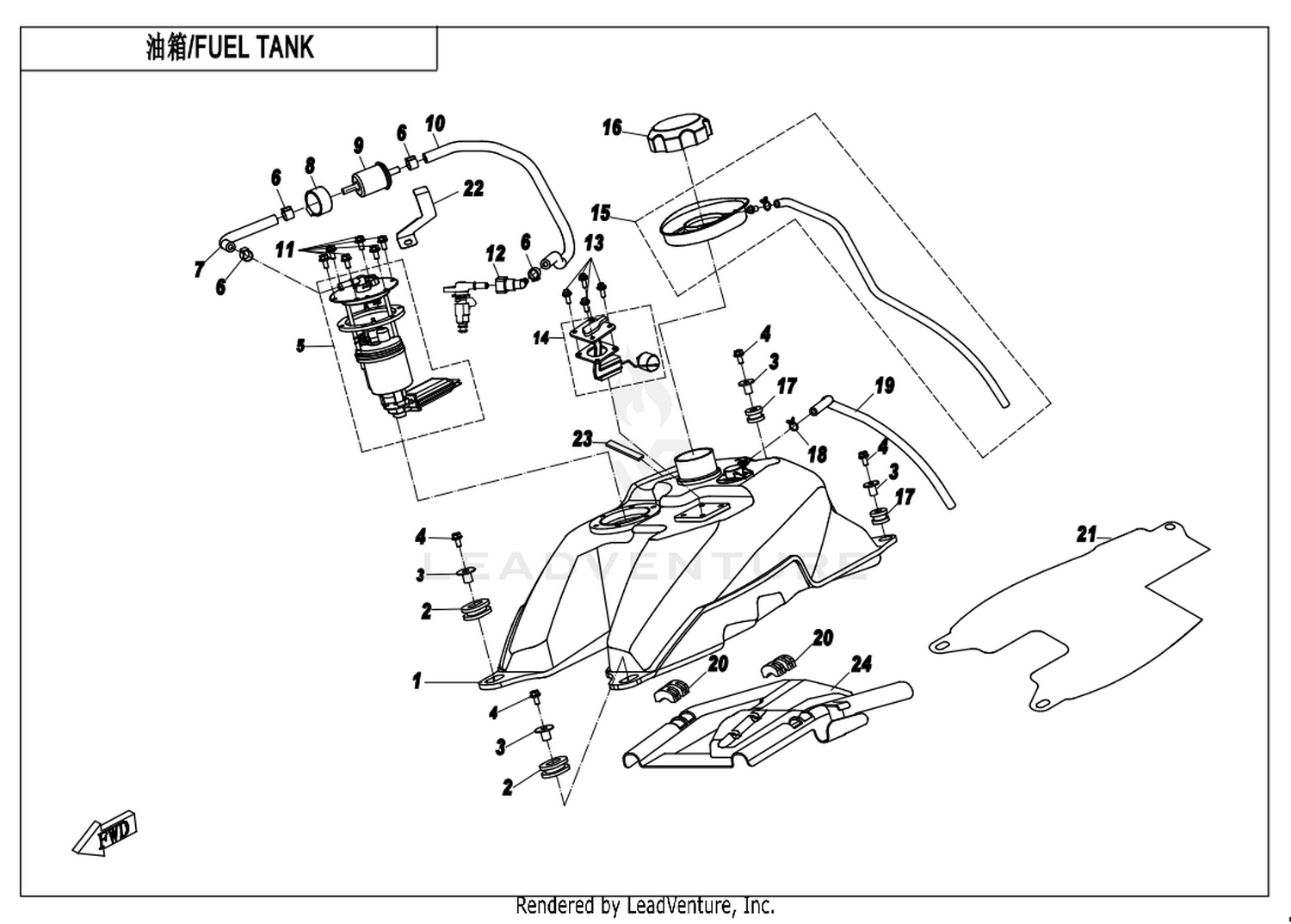

Location in exploded diagrams
Other parts on this diagram — Fuel Tank 1
- #18 9CR6-120001 — Fuel Tank Breather Hose
- #14 9CR6-170200 — Fuel Level Sensor Assy
- #06 30006-060030810 — Bolt M6×30
- #10 805A-120004 — Efi Fuel Filter
- #10 9CR6-120220 — High-Pressure Fuel Hose Assy 2
- #15 9CR6-120200 — Fuel Pan
- #20 9010-120005 — Cushion Mat, Fuel Tank
- #07 901F-150900-10000 — Fuel Pump
- #11 30006-050014810 — Bolt M5×14
- #15 9CR6-120200-00001 — Fuel Pan
- #24 9010-120601 — Heat Insulation Mat, Fuel Tank
- #01 9CR6-120100-10000 — Plastic Fuel Tank Assy
- #10 7020-120006 — Clamp Dia 16.6
- #09 6090-120210 — Quick Joint
- #06 9CR6-120300 — Cap, Fuel Tank
- #22 9CR6-120002-00001 — Plate, Fuel Filter
- #02 9010-120006 — Front Rubber Sleeve, Fuel Tank
- #07 9CR6-120210 — High-Pressure Fuel Hose Assy 1
- #13 30006-060010810 — Bolt M6×10
- #02 9010-120007 — Rear Cushion Sleeve, Fuel Tank
- #23 4020-040202 — Front Ventilation Plate Sponge Strip
- #03 9010-120310 — Rubber Liner, Fuel Tank
- #11 6090-120221 — Efi Fuel Filter Rubber Sleeve
- #14 9CR6-170200-10000 — Fuel Level Sensor Assy Sumitomo Plug
