Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 77.86 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 71.99 | listing | cfmoto.quadzillaparts.co.uk |

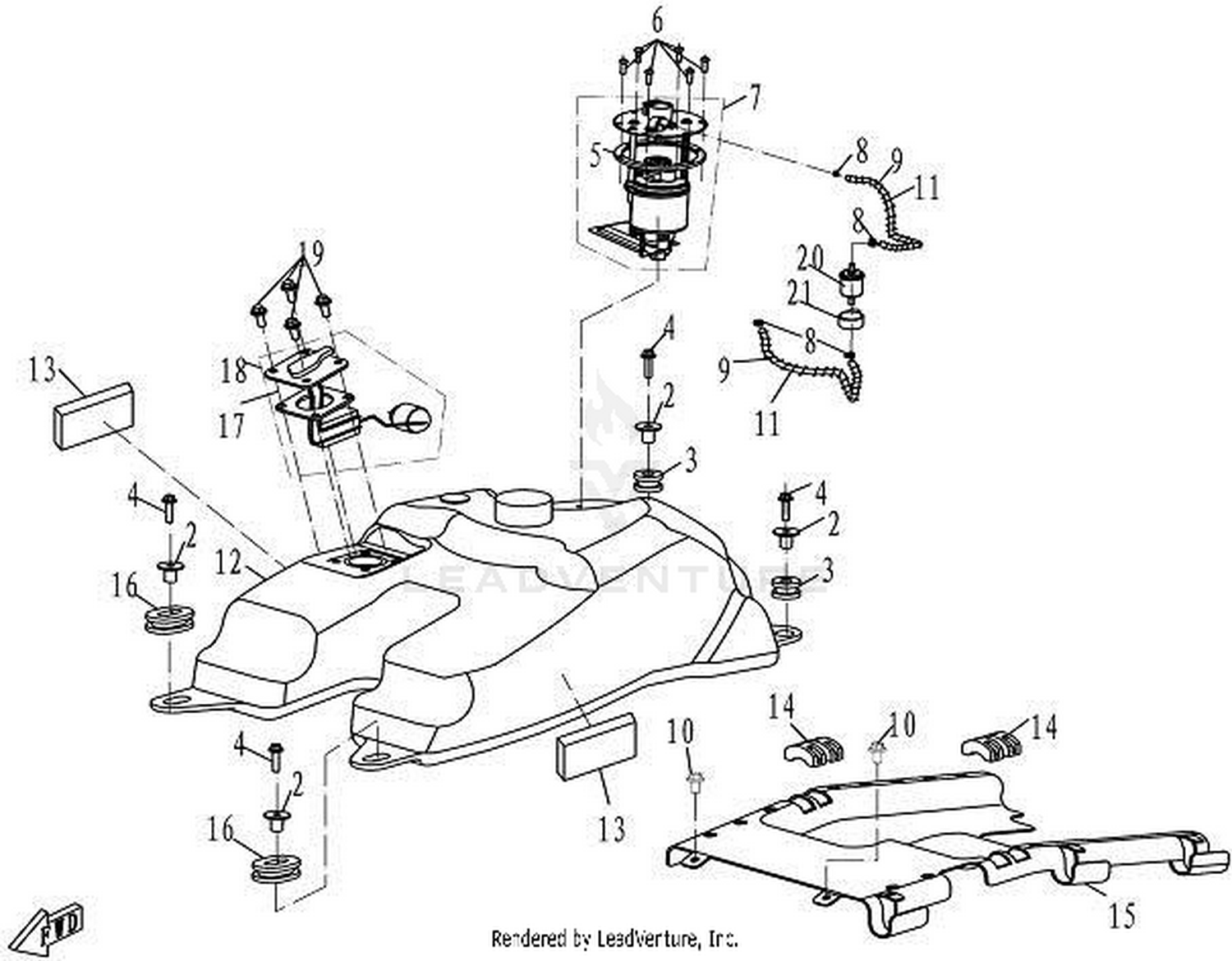

Location in exploded diagrams
Other parts on this diagram — Fuel Tank
- #10 30006-050012810 — Bolt M5×12
- #18 9010-170120 — Fuel Level Sensor Assy
- #05 7030-120060 — Cap, Fuel Tank
- #07 901F-150900-10000 — Fuel Pump
- #14 9010-120008 — Sponge Pad, Fuel Tank
- #21 30006-060010840 — Bolt M6X10 Military Green
- #03 9010-120310 — Rubber Liner, Fuel Tank
- #21 6070-120400 — Clamp(F14.5) Dia14.5
- #20 9010-120005 — Cushion Mat, Fuel Tank
- #10 805A-120004 — Efi Fuel Filter
- #02 9010-120007 — Rear Cushion Sleeve, Fuel Tank
- #09 901F-120001-00001 — Efi High-Pressure Fuel Hose
- #15 9010-040042 — Bottom Plate, Fuel Tank
- #15 6090-120220 — Efi Fuel Filter Assy
- #13 30006-060025840 — Needs Description
- #04 30006-060016870 — Bolt M6×16
- #02 9010-120006 — Front Rubber Sleeve, Fuel Tank
- #07 8010-120001 — Rubber Collar, Fuel Filter
- #05 6070-150921 — Top Cover Sealing Gasket
- #16 901F-120002 — Efi Fuel Pipe Sleeve
- #17 9010-170121 — Seal Ring
