Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

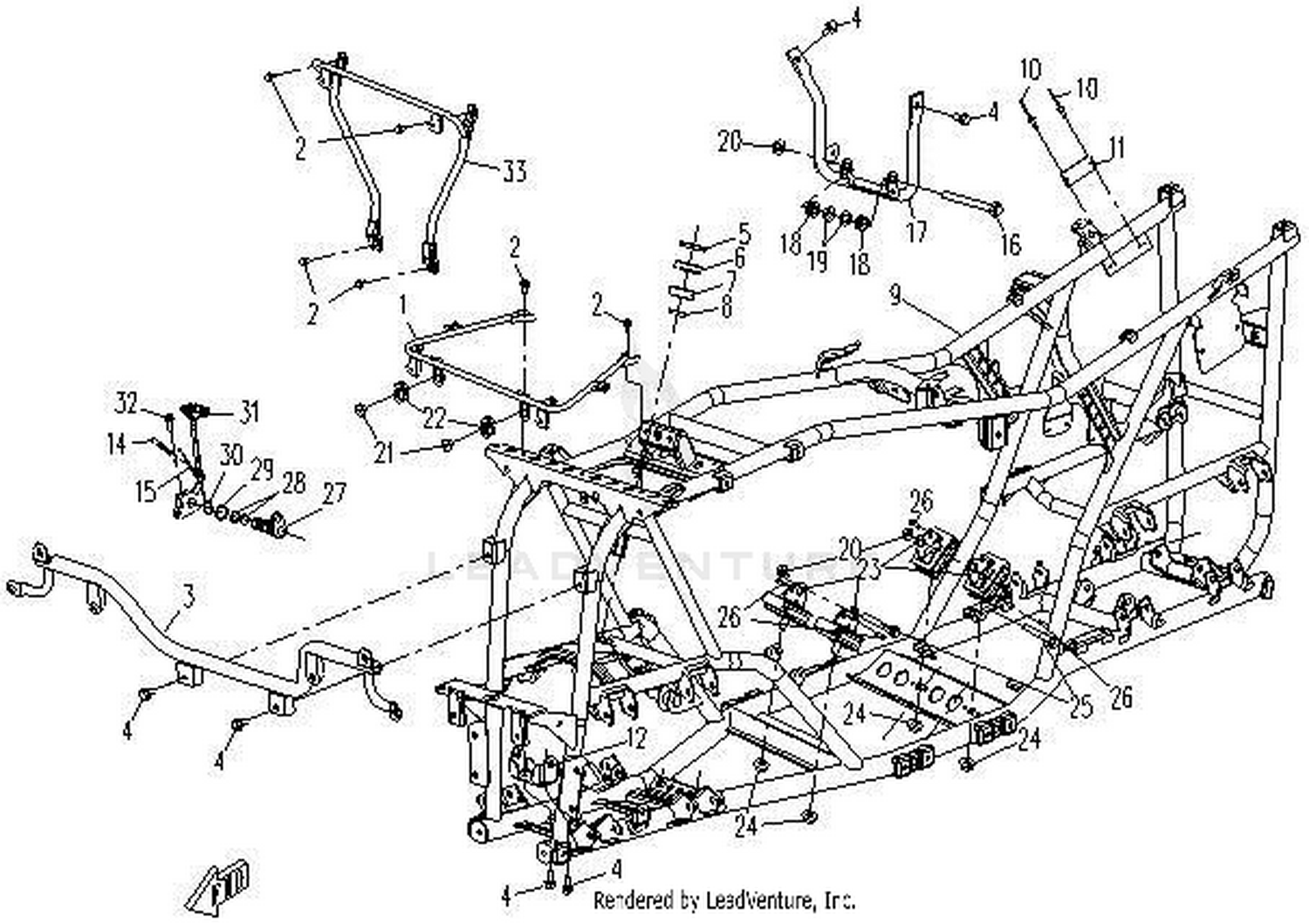

Location in exploded diagrams
Other parts on this diagram — Frame
- #01 9010-030040 — Upper Bracket, Radiator
- #07 30400-01780 — Bearing 6203-2Rz
- #24 9010-037400 — Bracket, Front Gear Case
- #19 9010-037210 — Bushing, Rear Suspension
- #58 30006-122145810 — Hexagon Flange Bolt & Gb & T5789 M12X1.25X145 & Color Zinc Plated
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #08 30500-025800N — Oil Seal Fb25X36X8
- #14 9010-080201 — Return Spring, Brake Pedal
- #19 30204-122840 — Needs Description
- #19 30102-060012810 — Screw M6×12
- #32 30102-080030840 — Needs Description
- #03 9020-030050 — Headlight Bracket Assy Electrophoresis Black
- #09 9020-030100-1000 — Needs Description
- #15 9010-080203-1000 — Spring, Brake Switch
- #10 5020-031002 — Rubber Sleeve Liner For Front License Bracket
- #27 901B-080260 — Rocker Shaft, Brake Pedal
- #33 9020-039100 — Ventilation Plate Bracket Assy
- #28 30006-080014840 — Needs Description
- #19 30902-0401320 — Rivet F4×13
- #16 30006-122130840 — Bolt M12X1.25X130 Military Green
- #22 9010-030047 — Rubber Cushion Washer
- #34 0130-011303 — O-Seal Ring 14X1.4
- #05 30500-025801N — Oil Seal Fb25X44X7
- #11 9010-190014 — Vin Plate Euro
