Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 1.07 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 1.00 | listing | cfmoto.quadzillaparts.co.uk |

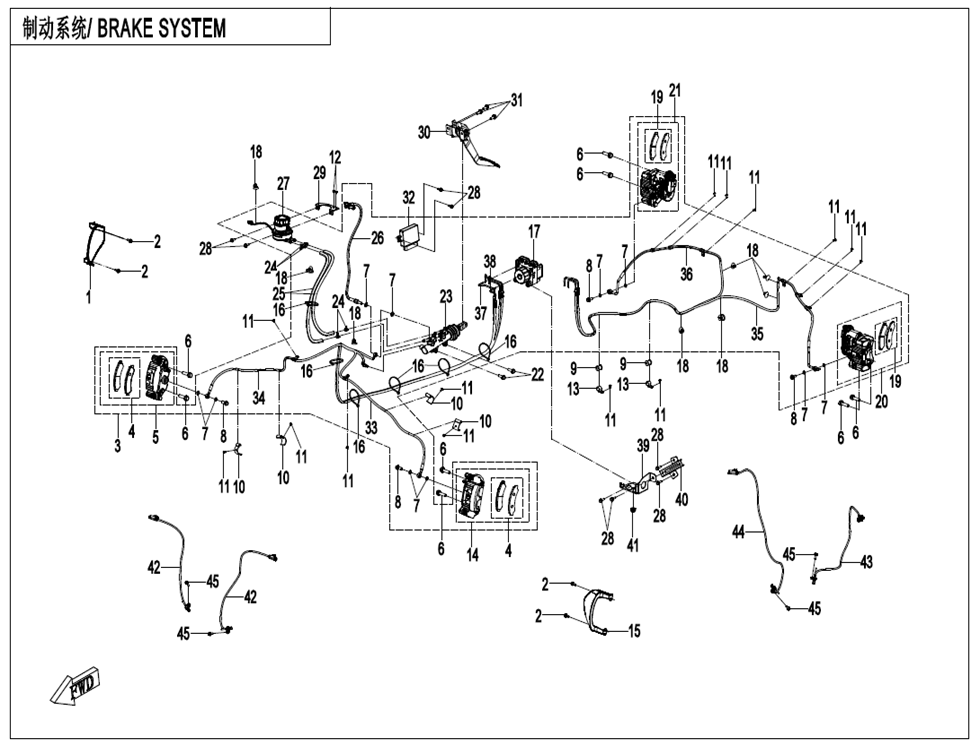

Location in exploded diagrams

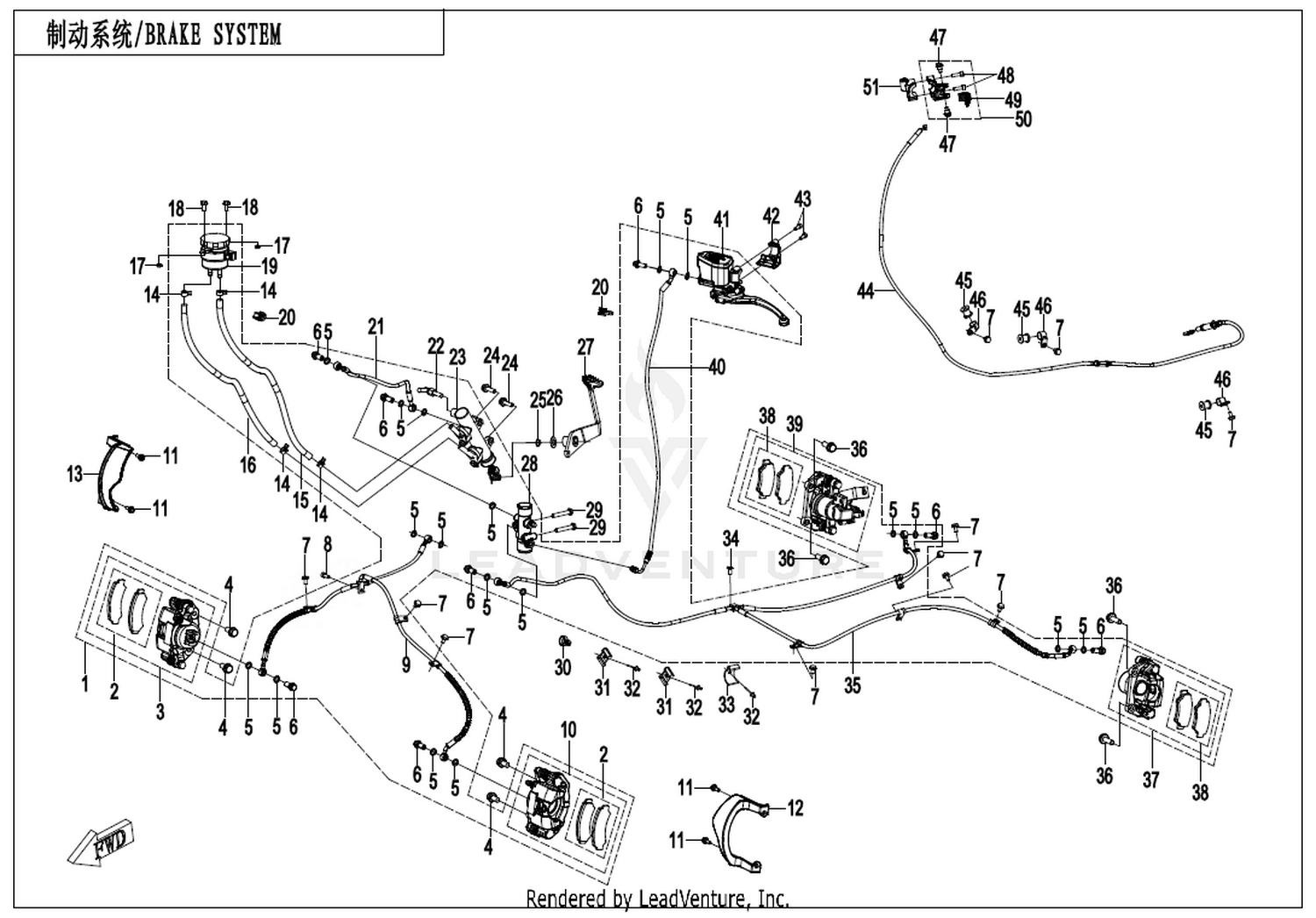

Other parts on this diagram — Brake System
- #09 9DQV-080150-3201 — Front Brake Fluid Hose
- #27 9DS#-080001-6001 — Guard, Front Lh Cv Joint
- #18 9DQV-080101-3200 — Reservoir Hose 1
- #13 30006-060016810 — Bolt M6×16
- #21 9DQV-080170-3201 — Fluid Hose, Brake Master Cylinder
- #11 30006-080025810 — Bolt M8×25
- #21 9DQV-080210-3200 — Brake Pedal Assy
- #19 7030-150005 — Tie Band
- #10 9DQV-080001-3000 — Plastic Clasp 1
- #32 9DQV-081500-3201 — Rear Lh Brake Caliper Assy
- #40 9DQV-080130-3202 — Hand Brake Fluid Hose
- #28 9DQV-080005-3000 — Press Cap, Hand Brake Master Cylinder
- #42 9030-180008 — Rubber Sleeve
- #48 30001-060020870 — Bolt
- #40 9DQV-080006-3201 — Rear View Mirror Mounting Seat
- #01 9DQV-081000-7002 — Hydraulic Brake Assy
- #08 7020-081004 — Banjo Bolt
- #17 9DQV-080102-3200 — Reservoir Hose 2
- #13 9GQS-081010-20000 — Reservior Tank Assy
- #22 9DQV-080010-3000 — Hydraulic Sensor Switch
- #03 30801-01405 — Circlips For Shaft 14
- #13 9AWV-081070-4000 — Hydraulic Distribution Valve
- #23 9DQV-080003-3000 — Plastic Clasp 3
- #19 30102-060012810 — Screw M6×12
