Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

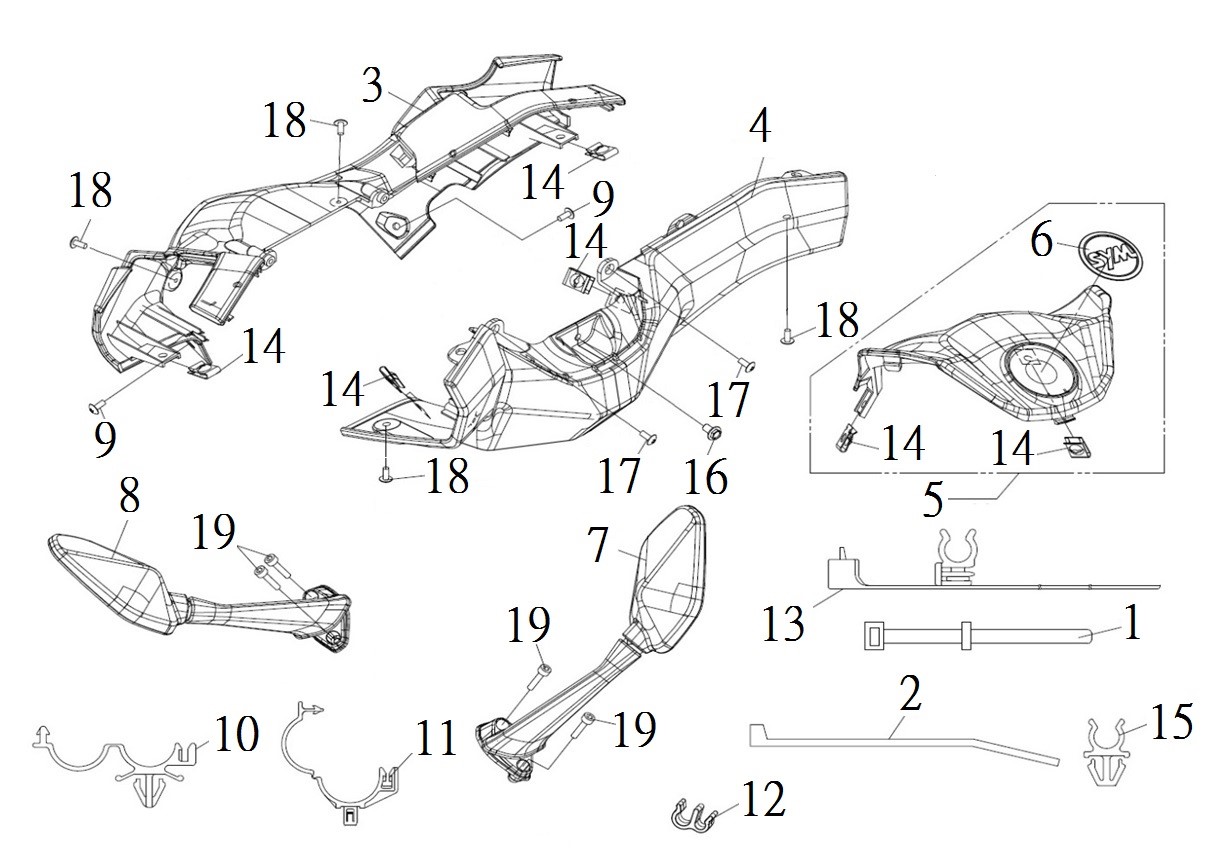

Other parts on this diagram — FR HANDLE COVER/ BACK MIRROR
- 967000602507 — Sym MAXSYM TL 508 E5 SOCKET BOLT 6X25
- 9390344380 — Sym MAXSYM TL 508 E5 TAPPING SCREW 4X12
- 9390334380 — Sym MAXSYM TL 508 E5 TAPPING SCREW 4*12
- 934010501207 — Sym MAXSYM TL 508 E5 WASHER BOLT 5X12
- 90611FFE000 — Sym MAXSYM TL 508 E5 PIPE CLAMP
- 90302V02000 — Sym MAXSYM TL 508 E5 NUT SPRING 4MM
- 90118L4G000 — Sym MAXSYM TL 508 E5 HOSE CLAMP
- 90118BD4000 — Sym MAXSYM TL 508 E5 CABLE CLAMP
- 90116F91000 — Sym MAXSYM TL 508 E5 CLAMP CLIP
- 90102TL1000 — Sym MAXSYM TL 508 E5 HEX. SOCKET TAPPING SCREW0 4X12
- 90102TL1900 — Sym MAXSYM TL 508 E5 HEX. SOCKET TAPPING SCREW0 4X12
- 88122TL1000 — Sym MAXSYM TL 508 E5 L. BACK MIRROR PAD
- 88120TL1000 — Sym MAXSYM TL 508 E5 L. BACK MIRROR ASSY.
- 88112TL1000 — Sym MAXSYM TL 508 E5 R. BACK MIRROR PAD
- 88110TL1000 — Sym MAXSYM TL 508 E5 R. BACK MIRROR ASSY.
- 87552F93000T1 — Sym MAXSYM TL 508 E5 SYM LOGO ( 40 PC )
- 5320ATL1000IL — Sym MAXSYM TL 508 E5 TOP HANDLE COVER ASSY. (GY-7450U) MATT GREY
- 53206TL1000KA — Sym MAXSYM TL 508 E5 RR. HANDLE COVER BK-001U
- 53206TL1004KA — Sym MAXSYM TL 508 E5 RR. HANDLE COVER (BK-001U) MATT BLACK
- 53205TL1000KA — Sym MAXSYM TL 508 E5 FR. HANDLE COVER (BK-001U) MATT BLACK
- 32161T15000 — Sym MAXSYM TL 508 E5 BAND 250
- 32161M9Q100 — Sym MAXSYM TL 508 E5 WIRE BAND
