Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 25.94 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 23.99 | listing | cfmoto.quadzillaparts.co.uk |

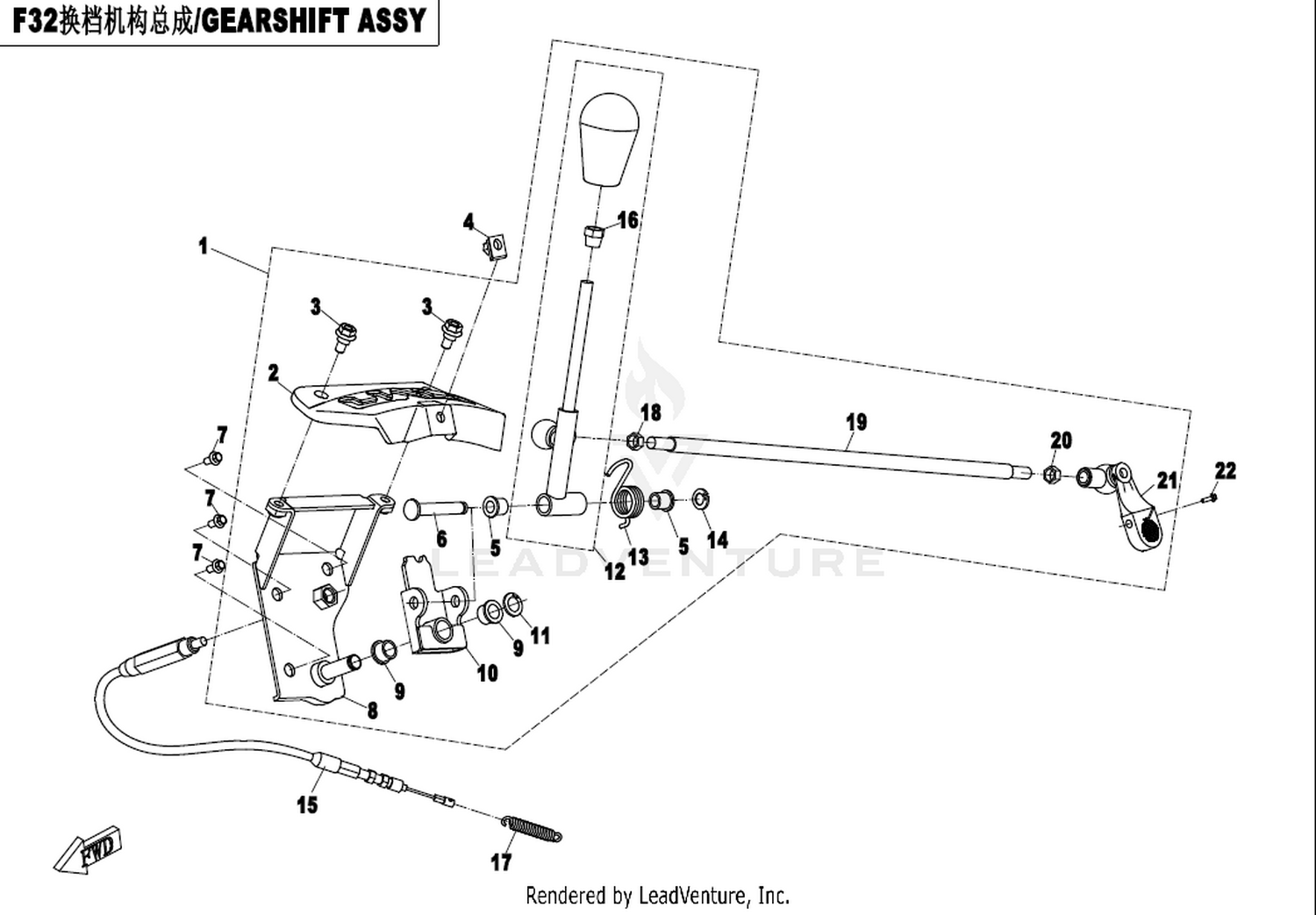

Location in exploded diagrams



Other parts on this diagram — Gear Shifting
- #02 9CR6-321005-00001 — Limitator, Gearshift Lever
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
- #14 9CR6-321002 — Spring, Gearshift Lever
- #05 9CR6-321004 — Rod, Gearshift
- #10 8010-000004 — Bolt M6X14 M6X14
- #08 9CR6-321100 — Base Plate
- #14 30802-00605 — Split Washer 6
- #09 30200-06081L — Nut M6 M6, Left-Hand Thread
- #02 8030-040800 — Nut Clip M6 M6
- #10 9CR6-321003 — Bushing, Arm
- #21 9010-320200-2000 — Gearshift Swing Arm Assy
- #08 9010-320009 — Nylon Bushing
- #10 9CR6-321200 — Gearshift Arm Assy
- #02 9CR6-321301 — Lock Nut, Gearshift M8
- #22 0010-080013-0010 — Bolt M6X22 Galvanized Trivalent Chromium
- #08 9CR6-321001 — Pin Shaft, Gearshift Lever
- #10 30802-00804 — Needs Description
- #07 9010-080202 — Gearshift Spring
- #17 30802-00805 — Split Washer 8
- #01 9CR6-321000-00001 — Gearshift Assy
- #07 9CR6-321001-00001 — Pin Shaft, Gearshift Lever
- #12 9CR6-321300 — Gearshift Lever Assy
- #48 30200-060810 — Nut M6
