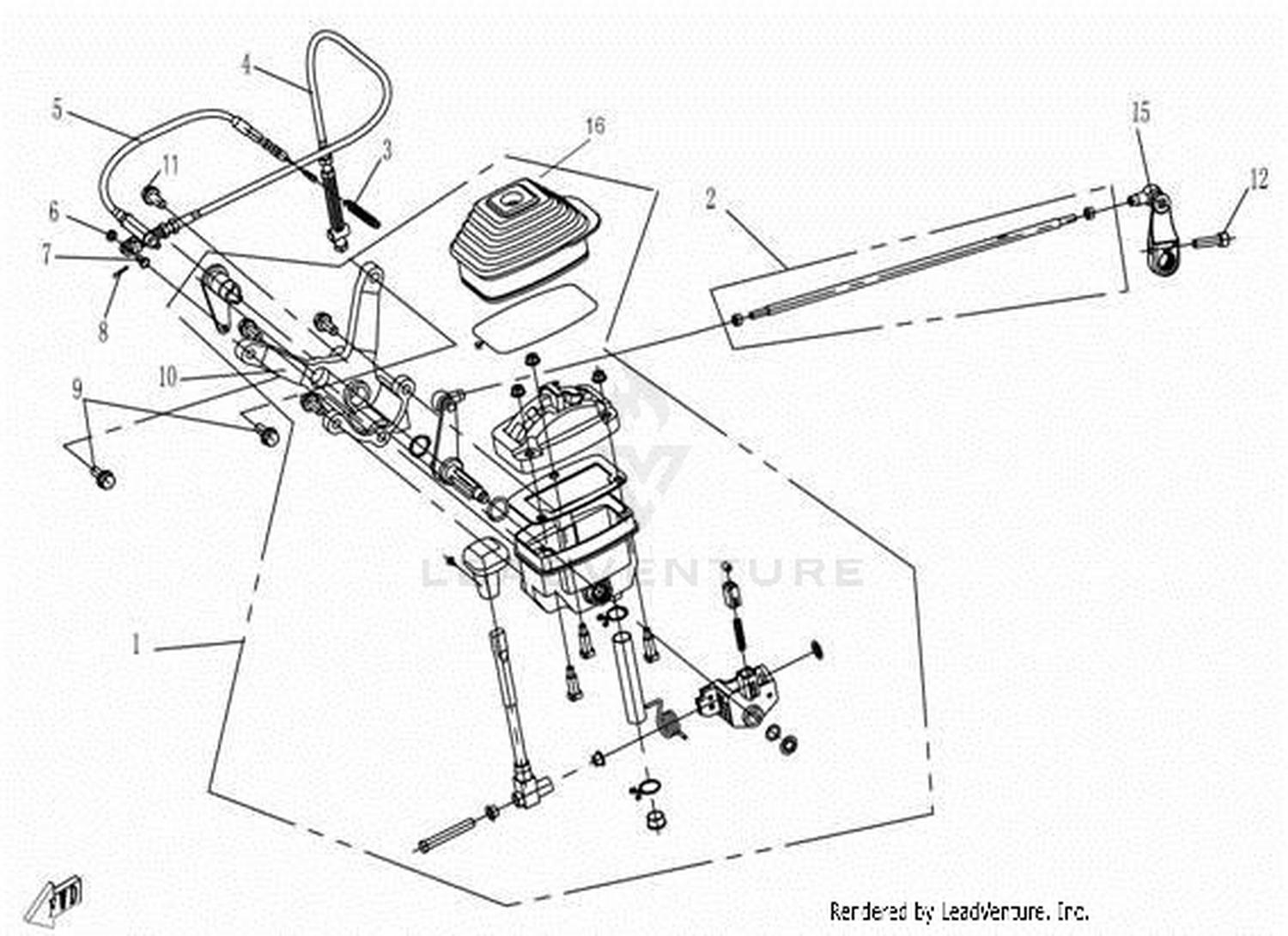

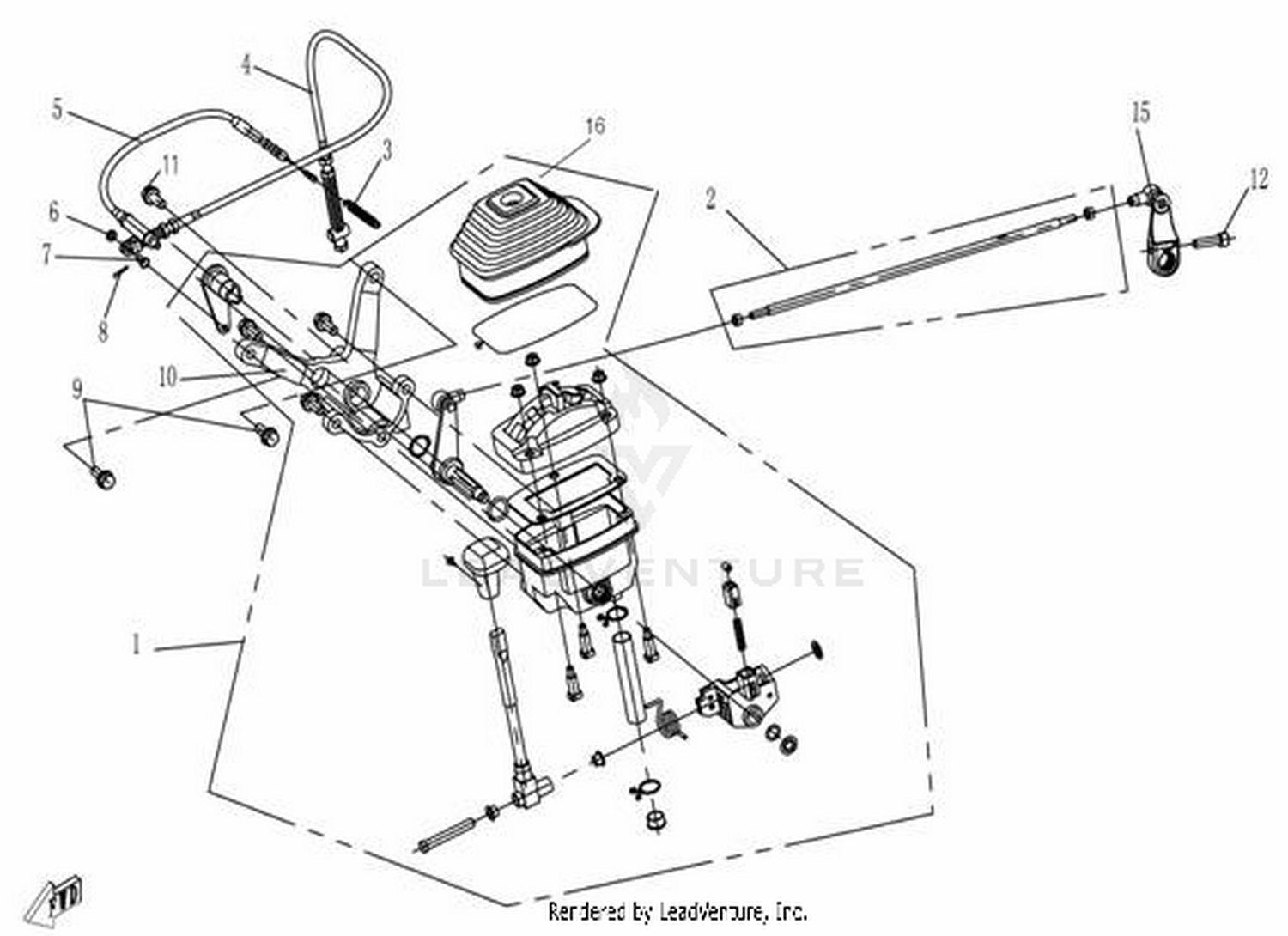

Location in exploded diagrams
Other parts on this diagram — Gear Shifting
- #04 9010-080310-00001 — Parking Cable
- #16 9010-320011 — Anti-Dust Guard
- #05 9GQ0-320400 — Cable, Parking Lock
- #25 30006-080020810 — Bolt M8X20@Color Zinc Plated
- #24 30306-060142 — Washer 6
- #45 30102-060022810 — Screw M6X22@Trivalent Chromium
- #01 9010-320100 — Gearshift Assy
- #40 30904-0602010 — Pin Shaft 6X20@Color Zinc Trivalent Chromium
- #18 0010-023010-0010 — Bolt M6X20 Galvanized Trivalent Chromium
- #02 9010-320300-1000 — Gearshift Rod Assy
- #25 30903-0162010 — Cotter Pin Gb & T91 & 1.6×20
- #17 0180-065206-0010 — Gasket 6.6X22X2
- #07 9010-080202 — Gearshift Spring
- #11 30006-080025810 — Bolt M8×25
- #21 9010-320200-2000 — Gearshift Swing Arm Assy
