Verified fitment — 11 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 16.86 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 15.59 | listing | cfmoto.quadzillaparts.co.uk |

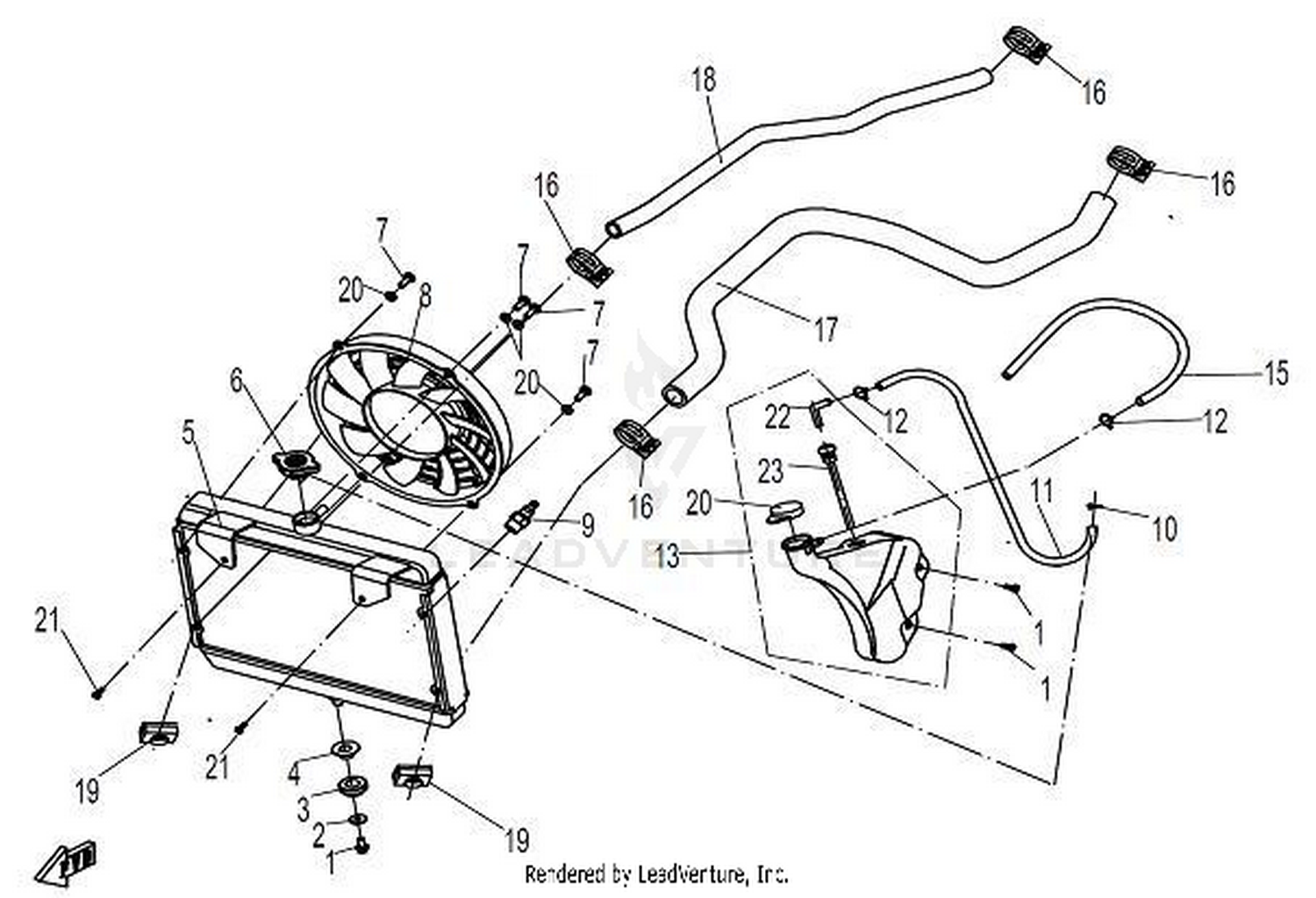

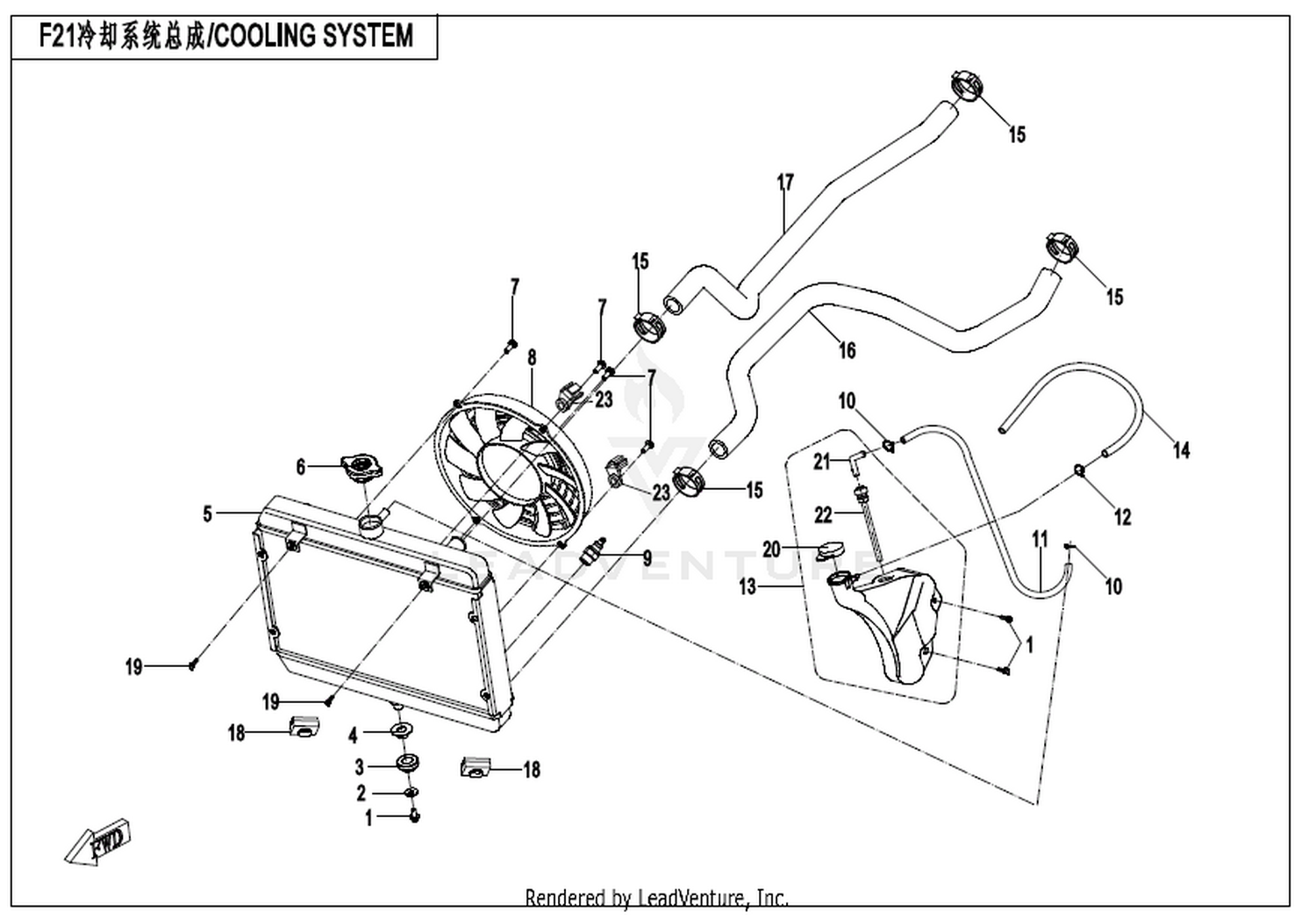

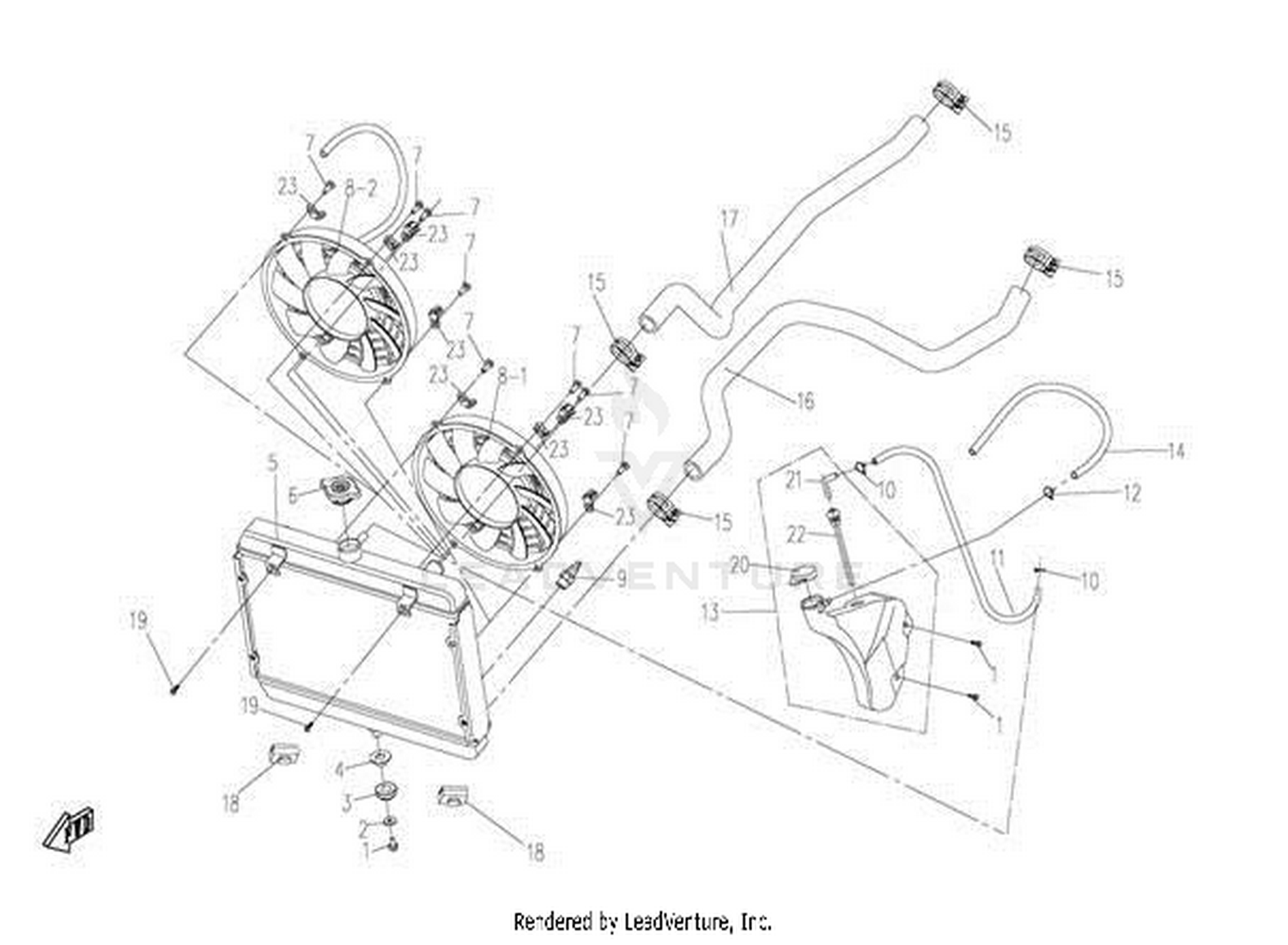

Location in exploded diagrams
Other parts on this diagram — Cooling System
- #03 9010-180004 — Rubber Sleeve, Radiator
- #8-3 9010-180200-3000 — Fan&Motor
- #27 9010-180007 — Water Hose Clamp
- #09 8030-180302 — Joint
- #04 9010-180010 — Steel Sleeve, Radiatior
- #09 0010-135000 — Thermo Switch
- #07 8010-180028 — Reservoir Connecting Hose
- #05 9010-180100-1000 — Radiator Assy Stainless Steel
- #05 30601-112010 — Clamp A12@Color Zinc Trivalent Chromium
- #17 9010-180003 — Radiator Water Inlet Hose
- #22 9030-180071 — Adaptor, Clip
- #12 8010-180024 — Water Filling Port Cap Assy
- #11 8060-180001 — Reservoir Water Pipe
- #44 5190-001003 — Main Bracket Rubber Damper
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #07 30112-060012440 — Needs Description
- #13 9010-180400-1000 — Reservoir Tank Assy
- #13 30006-060025840 — Needs Description
- #03 30301-060412 — Washer F6
- #05 30006-060020870 — Bolt M6×20
- #14 9010-180005 — Reservoir Overflow Hose
- #17 8010-180023 — Reservoir Cap
