9010-150601FUSE 10A — Genuine CF MOTO Part
CF MOTOoem
9010-150601 - FUSE 10A #3
Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (7)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| AUD | 4.10 | listing | shop.cfmoto.com.au |
| EUR | 1.28 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 1.19 | listing | cfmoto.quadzillaparts.co.uk |

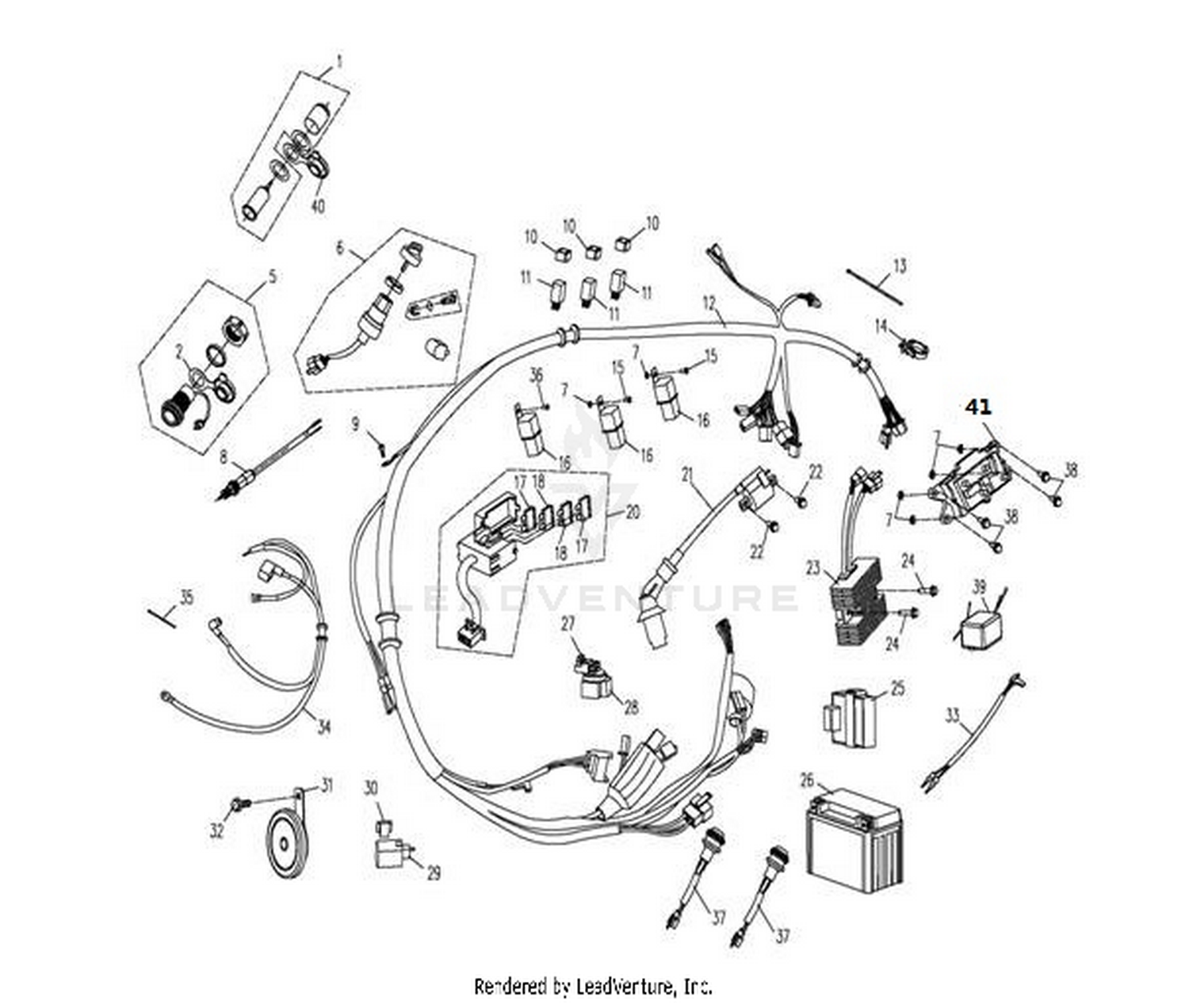

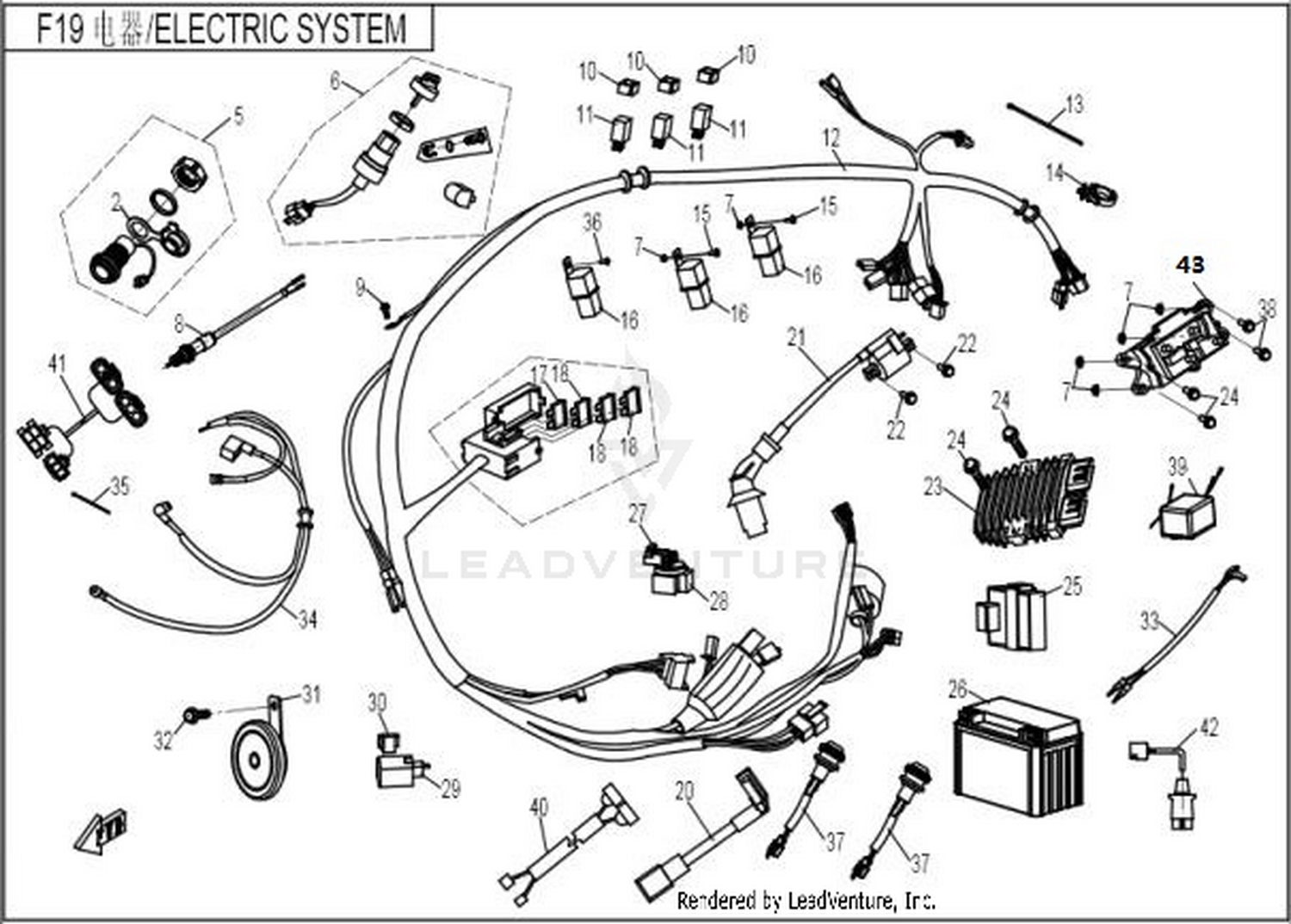

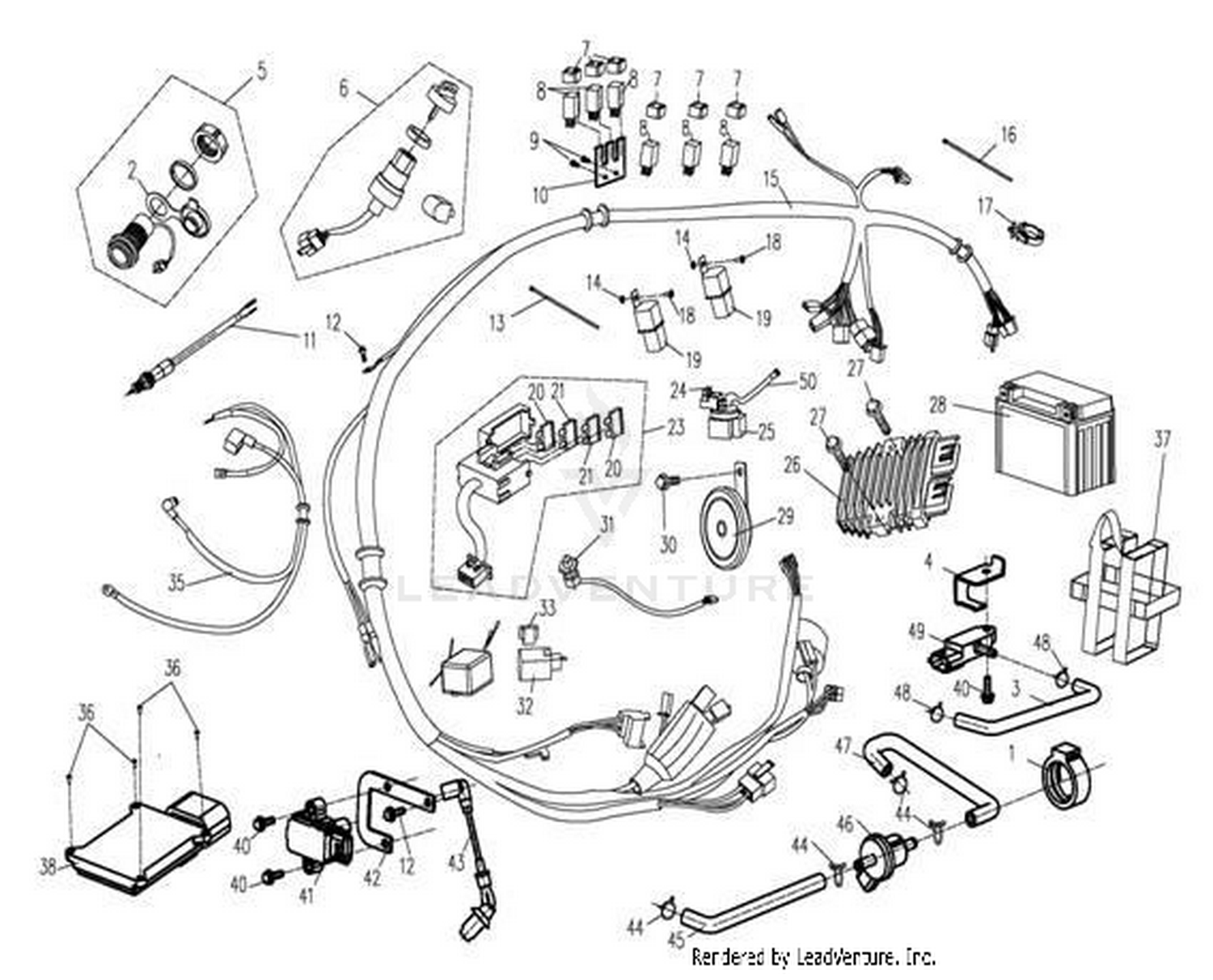

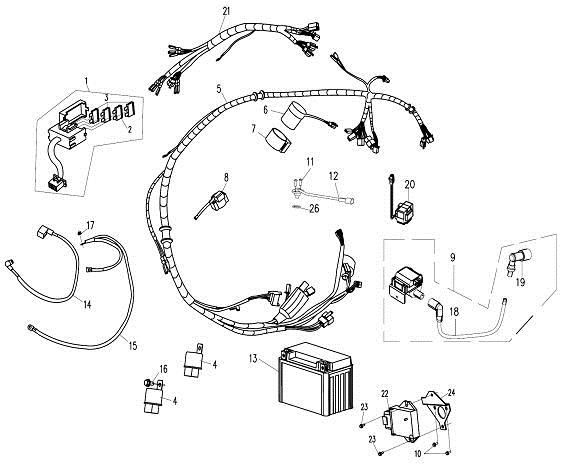

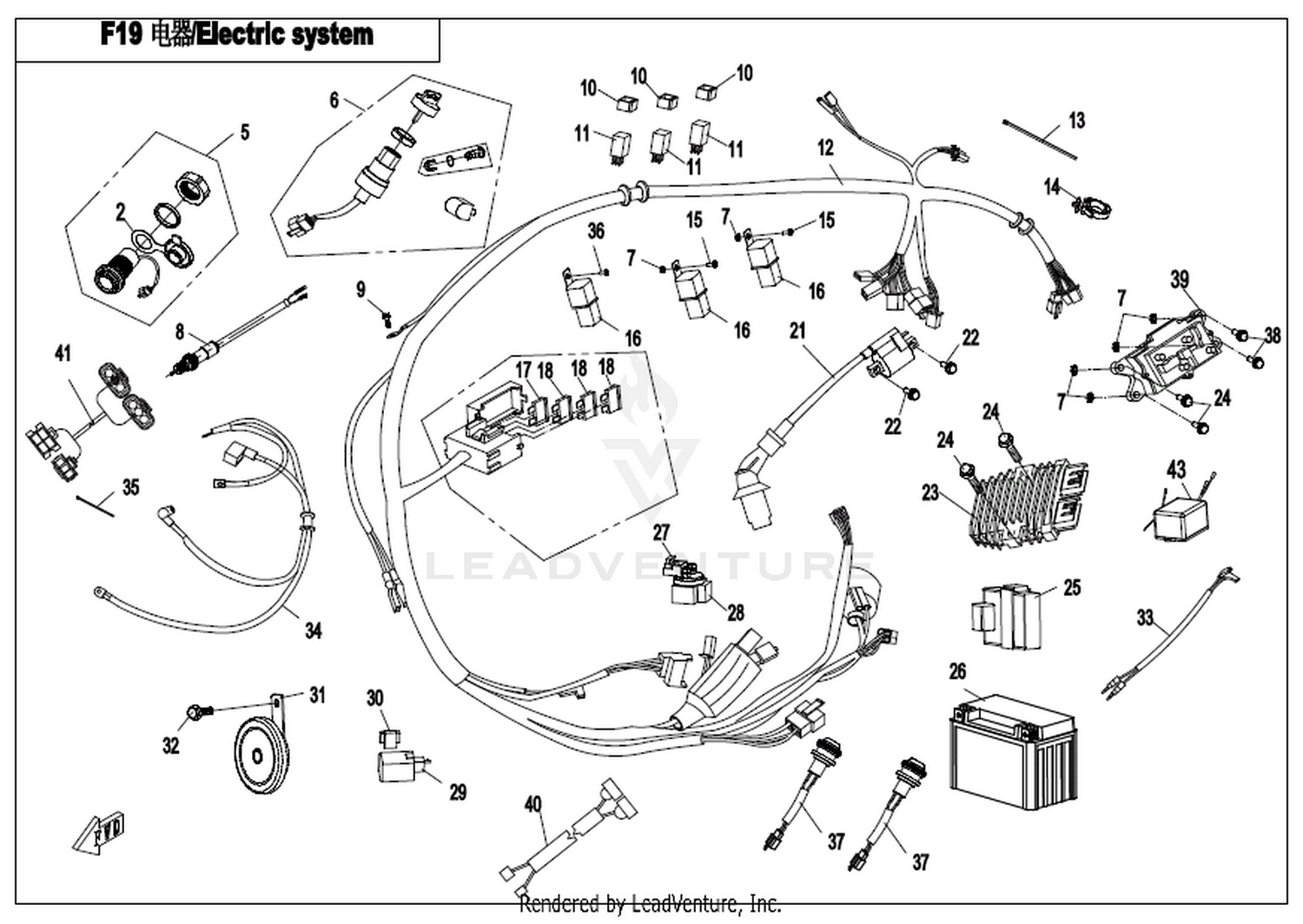

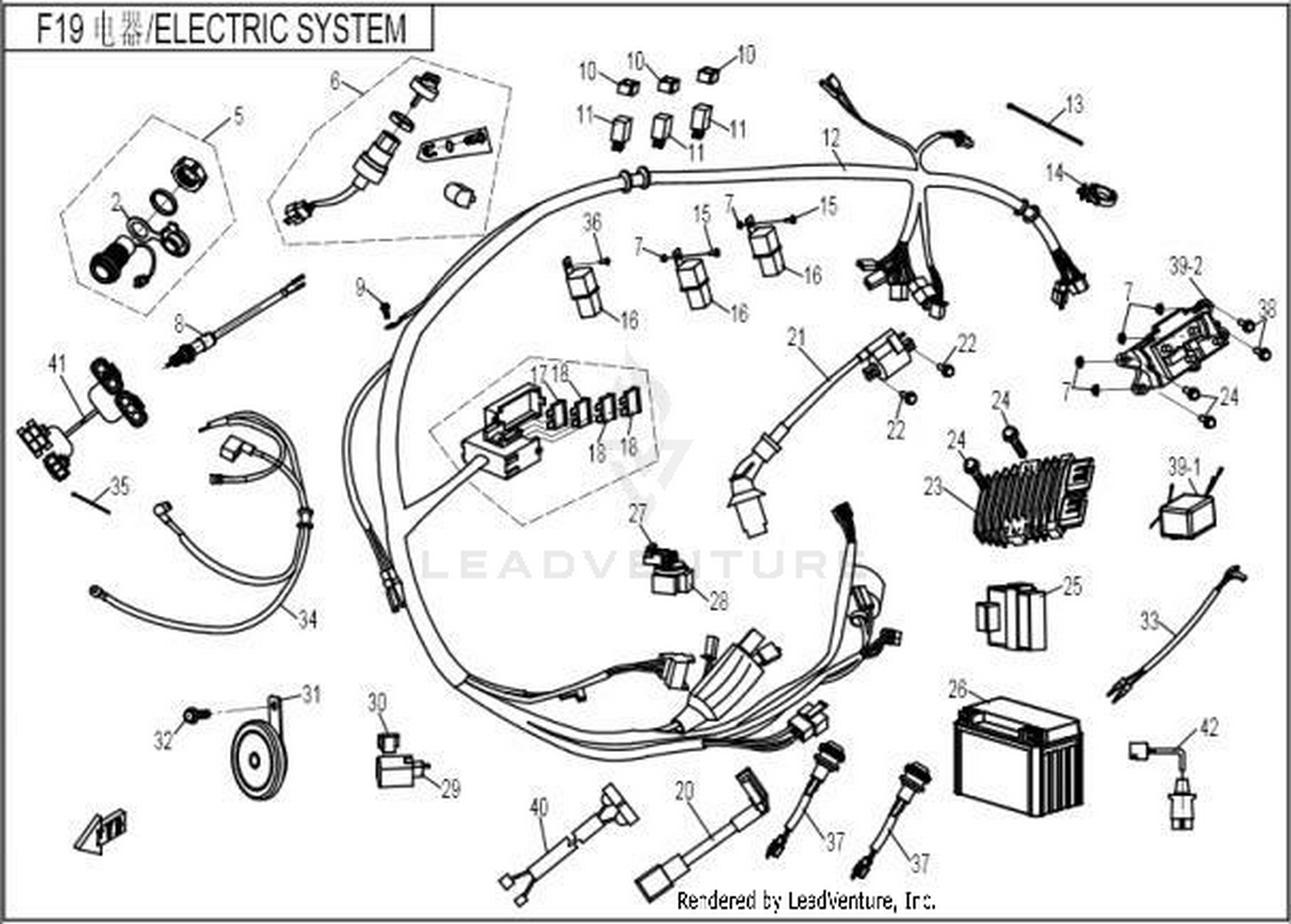

Location in exploded diagrams

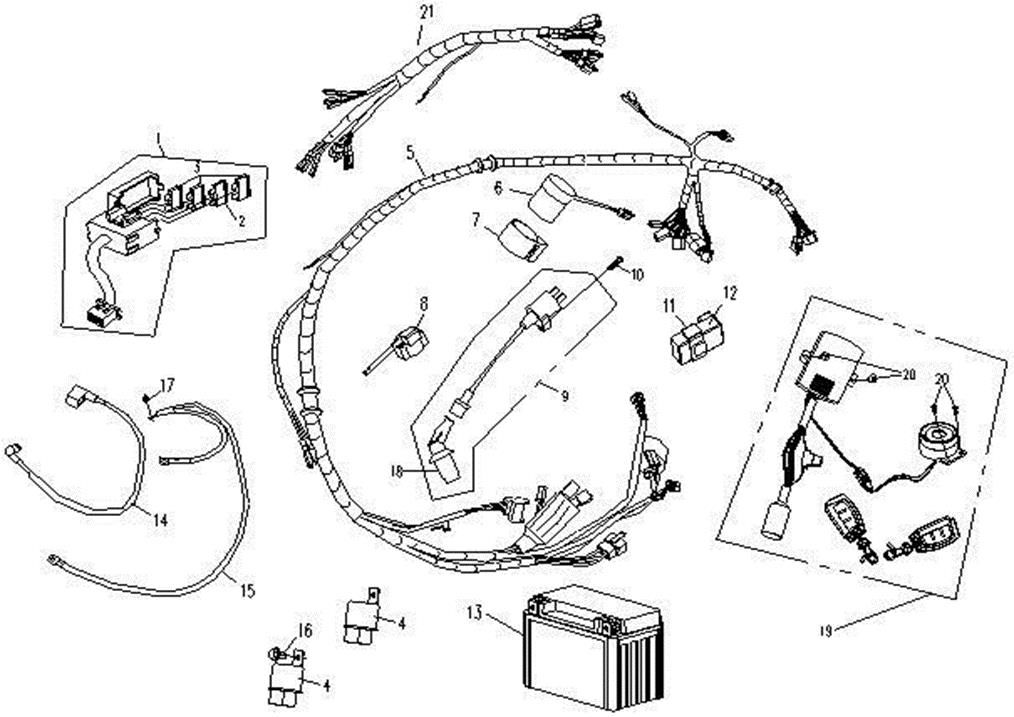

Other parts on this diagram — ELECTRIC SYSTEMS
- #1 8030-151300 — FUSE BOX COMP
- #2 8010-151301 — FUSE 5A
- #4 8030-151400 — DIVERTER RELAY
- #5 8050-150100-B000 — MAIN CABLE
- #5 8050-150100-A000 — MAIN CABLE
- #6 5020-150900 — FLASHER
- #7 1090-150501 — SLEEVE, FLASHER
- #8 8030-150410-00001 — STARTER RELAY Replacing: 8030-150410 - STARTER RELAY
- #9 8030-150420 — IGNITION COIL
- #10 30105-050020440 — SCREW M5X20
- #11 0110-150100 — CDI IGNITER
- #12 0110-150101 — CDI RUBBER CASE
- #13 31021000 — BATTERY DYNAVOLT DTX12-BS
- #14 8030-150700 — CABLE, STARTER RELAY
- #15 8030-150600 — NEGATIVE CABLE COMP
- #16 30006-060012870 — BOLT M6X12 Replacing: 30006-060012840 - BOLT M6X12
- #17 30204-060810 — NUT M6 Replacing: 30202-060140 - NUT M6
- #18 8030-150421 — HIGH-TENSION CAP
- #19 5070-151500 — ANTI-THEFT DEVICE
- #20 30110-480130040 — SELF-TAPPING SCREW. ST4.8X13
- #21 8030-151500 — AUXILIARY CABLE, POLICE VERSION
- #21 8030-151500-1000 — AUXILIARY CABLE, POLICE VERSION
