Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 84.35 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 77.99 | listing | cfmoto.quadzillaparts.co.uk |

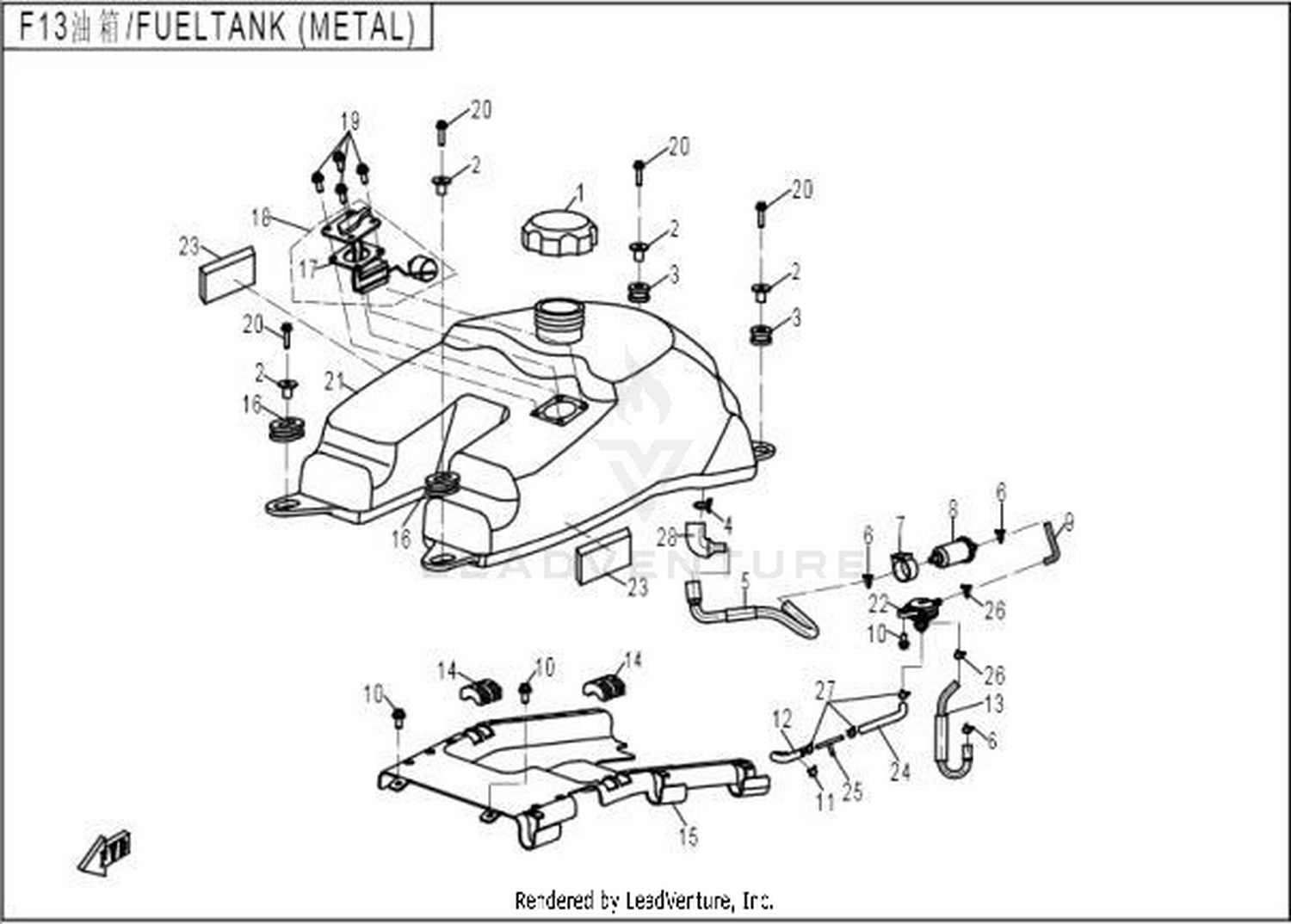

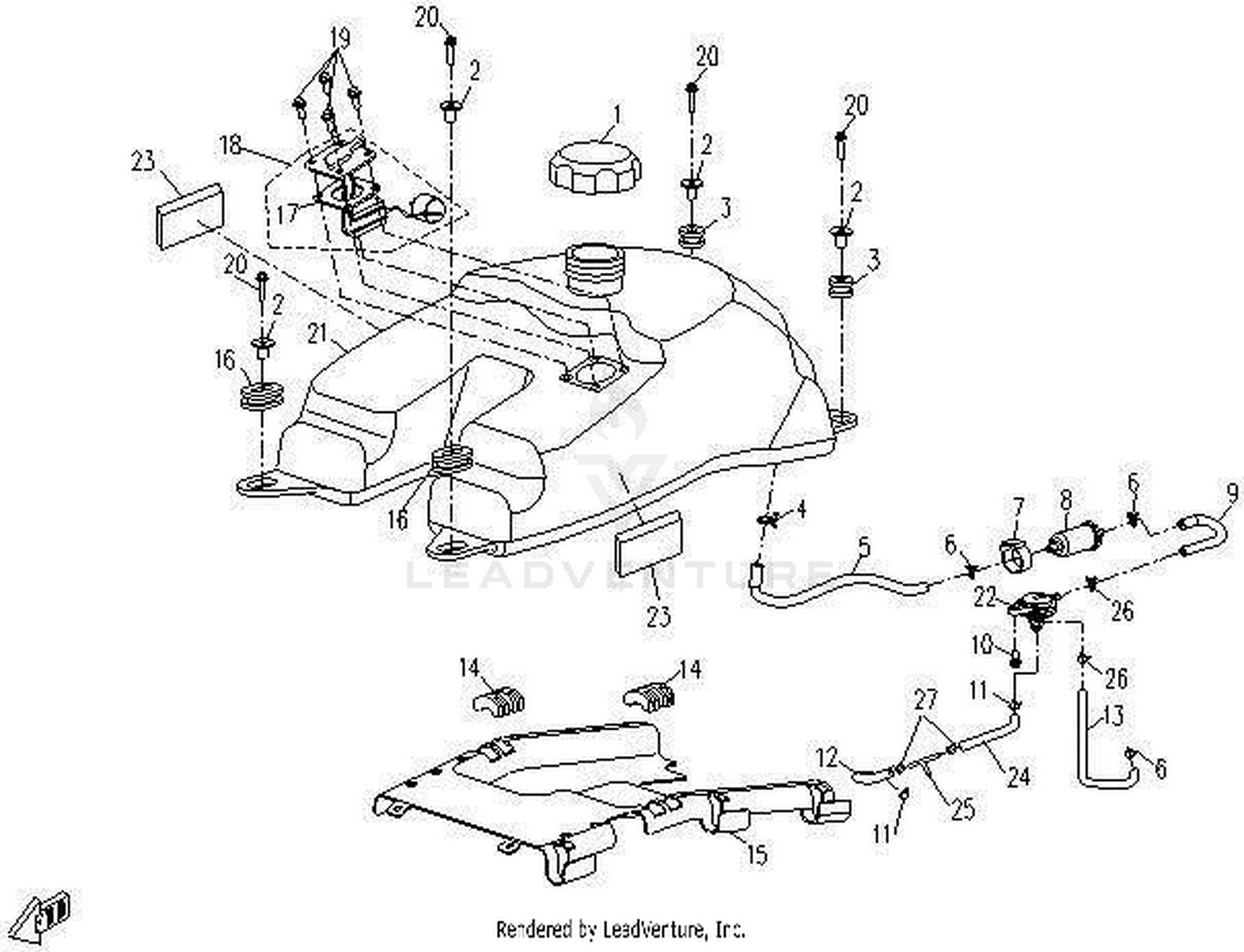

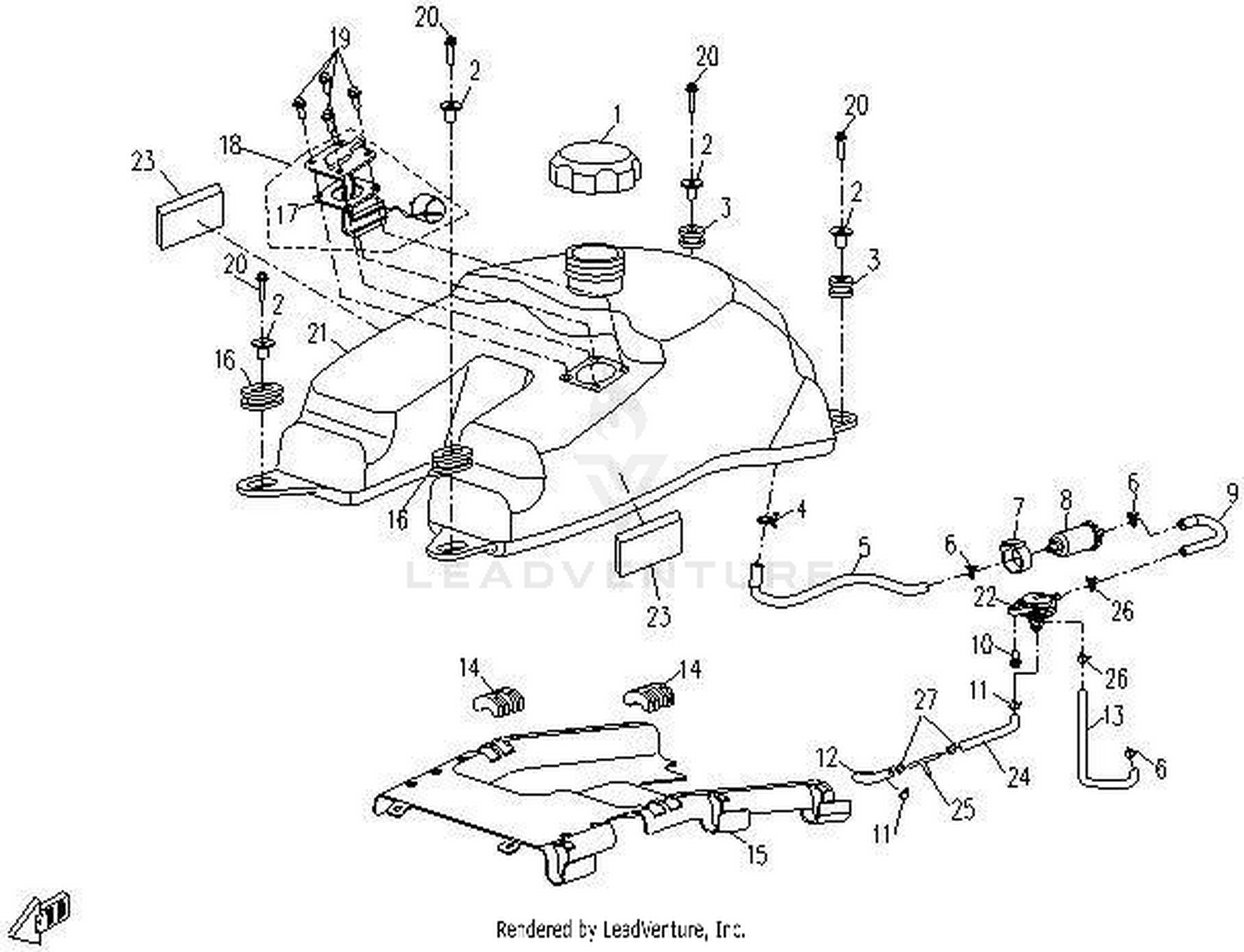

Location in exploded diagrams






Other parts on this diagram — Fuel Tank
- #22 30601-114010 — Clamp "
- #04 30006-060016870 — Bolt M6×16
- #02 9010-120006 — Front Rubber Sleeve, Fuel Tank
- #06 30601-107010 — Clamp A7 A7
- #22 5190-120510 — Fuel Switch
- #07 9010-120510-2000 — Fuel Hose 1
- #17 30601-108010 — Clamp A8@Color Zinc Trivalent Chromium
- #17 9010-170121 — Seal Ring
- #28 9010-120501 — Rubber Sleeve, Fuel Hose 1
- #08 30601-110010 — Clamp A10
- #12 9010-120560 — Vacuum Hose 1
- #18 9010-170120 — Fuel Level Sensor Assy
- #14 9010-120008 — Sponge Pad, Fuel Tank
- #05 7030-120060 — Cap, Fuel Tank
- #07 8010-120001 — Rubber Collar, Fuel Filter
- #12 9010-120530-1000 — Fuel Hose 3
- #21 30006-060010840 — Bolt M6X10 Military Green
- #24 9010-120540 — Vacuum Hose
- #03 9010-120310 — Rubber Liner, Fuel Tank
- #08 8010-120300 — Petrol Filter Assy
- #20 9010-120005 — Cushion Mat, Fuel Tank
- #13 30006-060025840 — Needs Description
- #18 8010-360001 — Vacuum T-Joint
- #02 9010-120007 — Rear Cushion Sleeve, Fuel Tank
