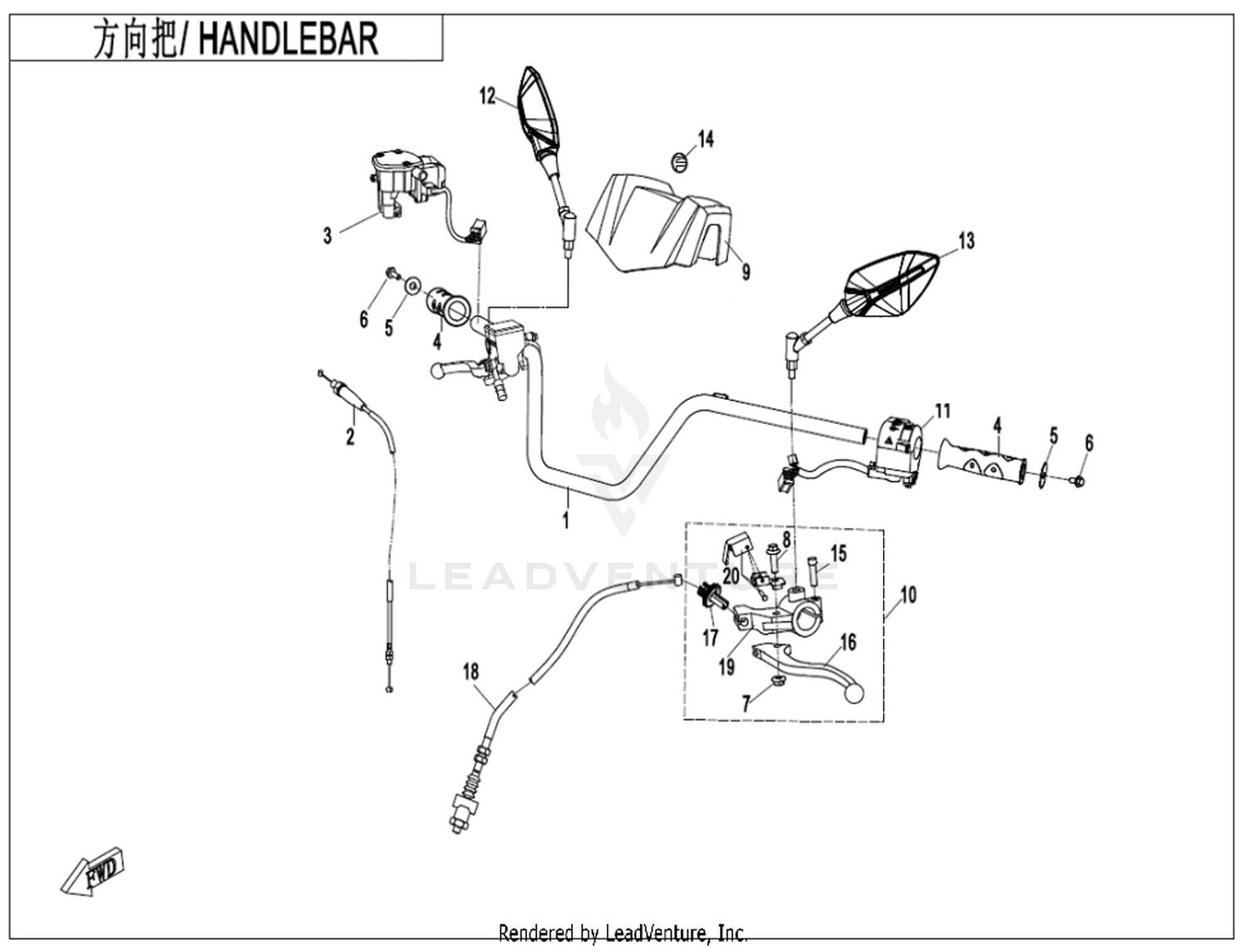

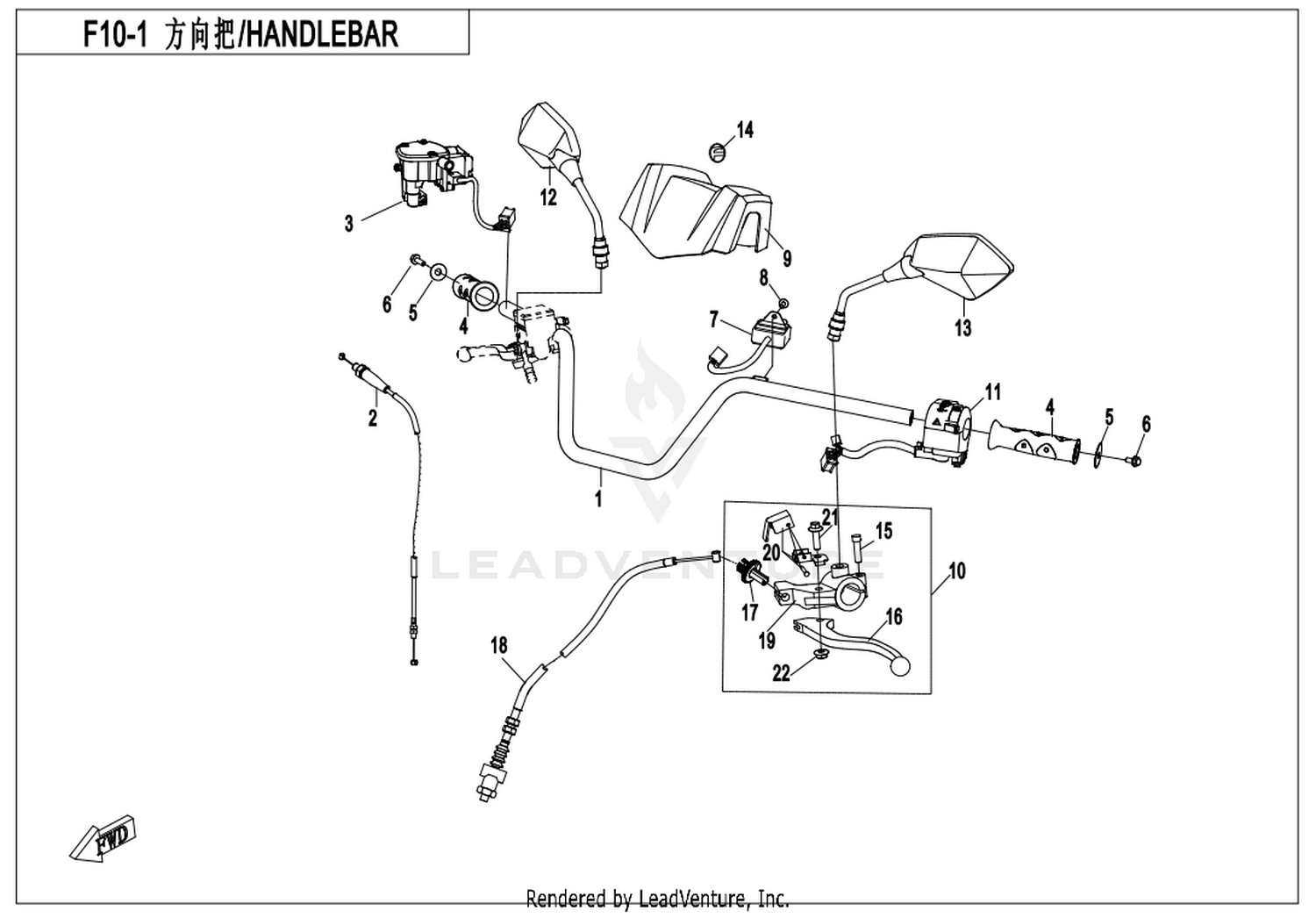

Location in exploded diagrams
Other parts on this diagram — Handlebar(Lh Parking)
- #28 9010-020187 — Gasket
- #11 9GQS-160600-00001 — Lh Handlebar Switch Assy
- #02 30121-080020870 — Screw M8X20@Black Zinc-Plated
- #07 9AY0-200300 — Rear View Mirror Assy, Rh
- #38 9GQ0-080300 — Rear Brake Parking Cable
- #13 9DSV-101100-6K01 — Handlebar Assy Electrophoresis
- #14 30204-060810 — Nut M6
- #15 9AY0-200200 — Lh Rearview Mirror Assy
- #19 9CRV-080202-2400-20 — Seat, Lever
- #02 9GQ0-105000 — Throttle Cable
- #12 9010-080255 — Pin Shaft
- #18 9AWV-190001-2E00 — Cfmoto Sticker
- #20 9CR6-080210 — Parking Clip Assy
- #03 9GQS-160700-00002 — Rh Handlebar Switch Assy
- #11 9CR6-101001 — Top Cover, Handlebar
- #15 9CR6-080203 — Bolt M6X22 M6X22
- #04 8060-100001 — Lh Hand Grip
- #39 9CRV-080200-2400 — Parking Lever, Rear Brake
- #16 9CR6-080201 — Rear Brake Parking Lever
