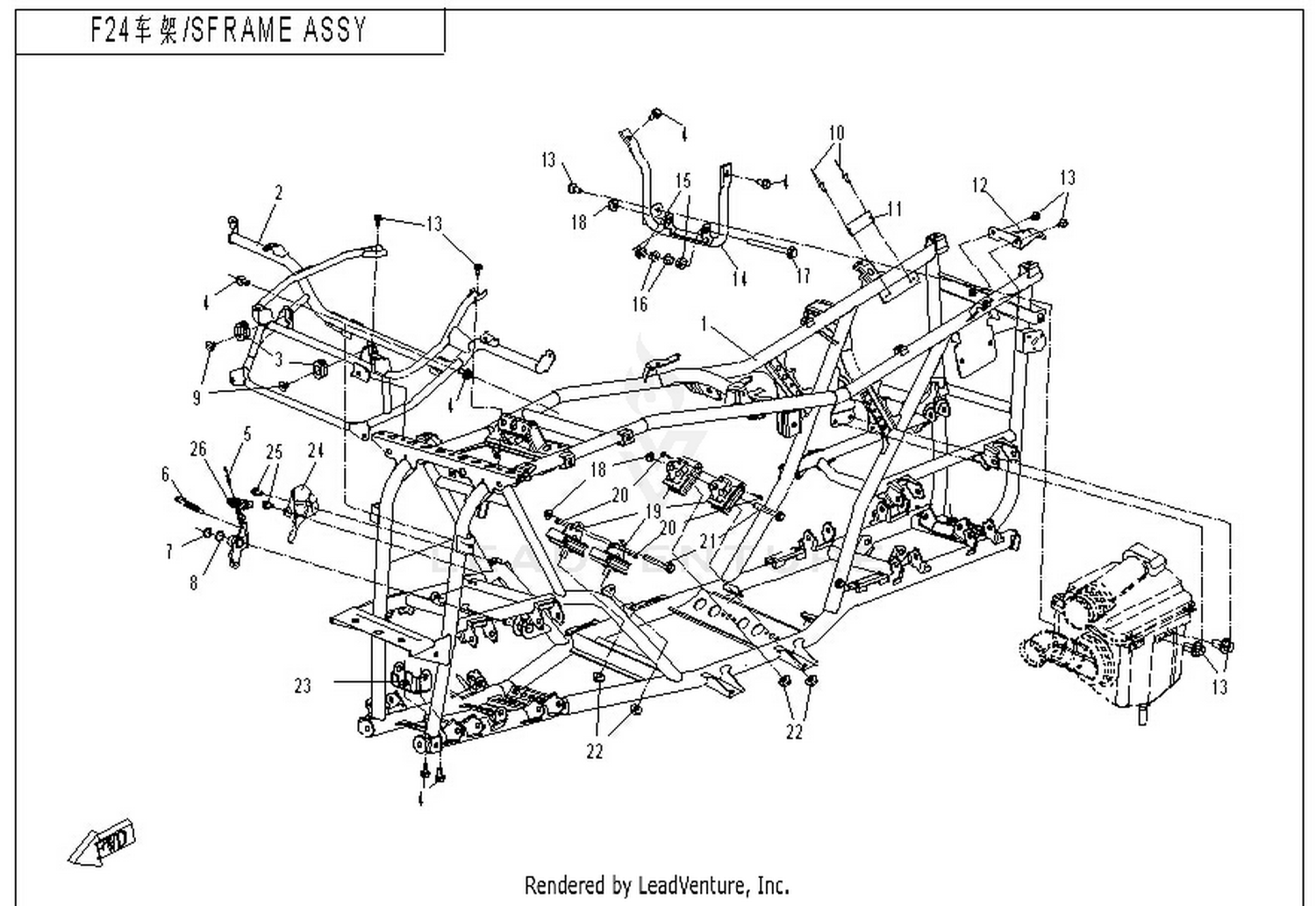

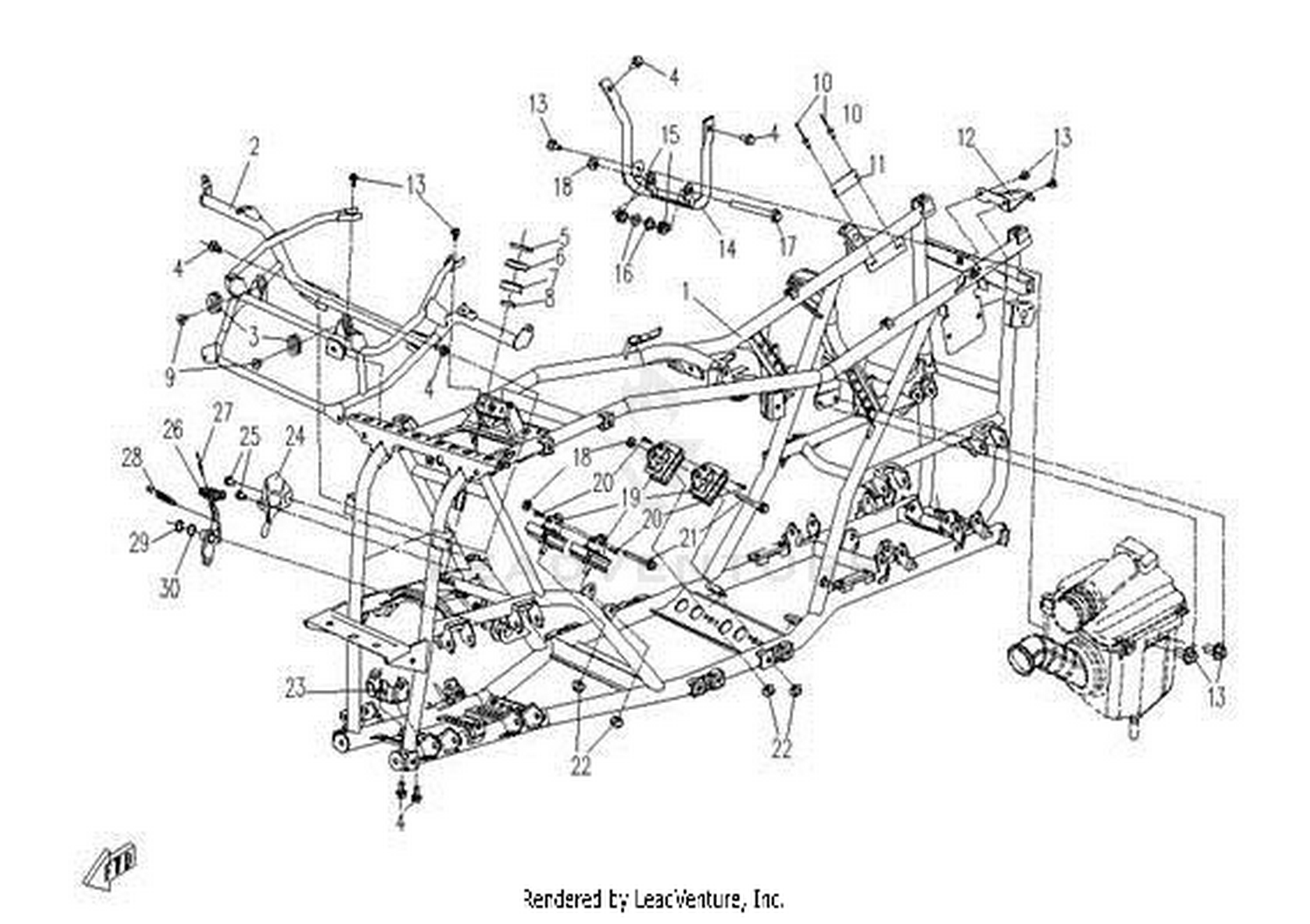

Location in exploded diagrams
Other parts on this diagram — Frame
- #22 9010-030047 — Rubber Cushion Washer
- #10 5020-031002 — Rubber Sleeve Liner For Front License Bracket
- #18 9010-037205 — Cushion, Rear Bracket
- #58 30006-122145810 — Hexagon Flange Bolt & Gb & T5789 M12X1.25X145 & Color Zinc Plated
- #28 30006-080014840 — Needs Description
- #19 30902-0401320 — Rivet F4×13
- #19 9010-037210 — Bushing, Rear Suspension
- #04 30204-102810 — Nut M10×1.25
- #15 9010-080203-1000 — Spring, Brake Switch
- #05 30500-025801N — Oil Seal Fb25X44X7
- #11 9050-190014 — Vin Plate Euro
- #16 30006-122130840 — Bolt M12X1.25X130 Military Green
- #26 9010-030001 — Needs Description
- #14 9010-080201 — Return Spring, Brake Pedal
- #01 401B-030100 — Needs Description
- #06 9010-030003 — Bearing Retainer
- #12 9050-030140 — Bracket, Rear Deco Plate
- #19 30204-122840 — Needs Description
- #24 9010-037400 — Bracket, Front Gear Case
- #03 30801-01405 — Circlips For Shaft 14
- #01 905B-030100-20000 — Needs Description
- #07 30400-01780 — Bearing 6203-2Rz
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #03 401B-000200-10000 — Damper
