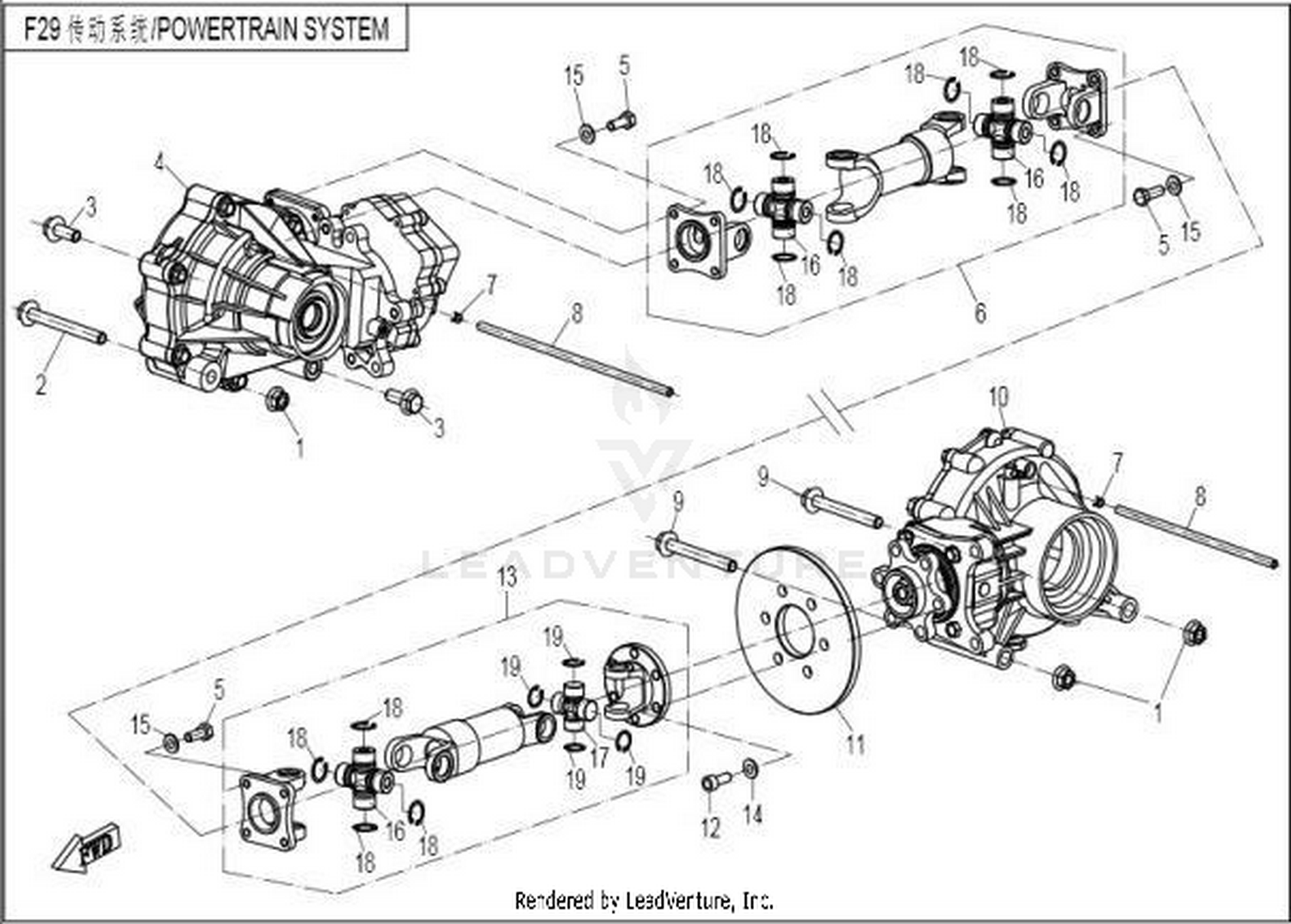

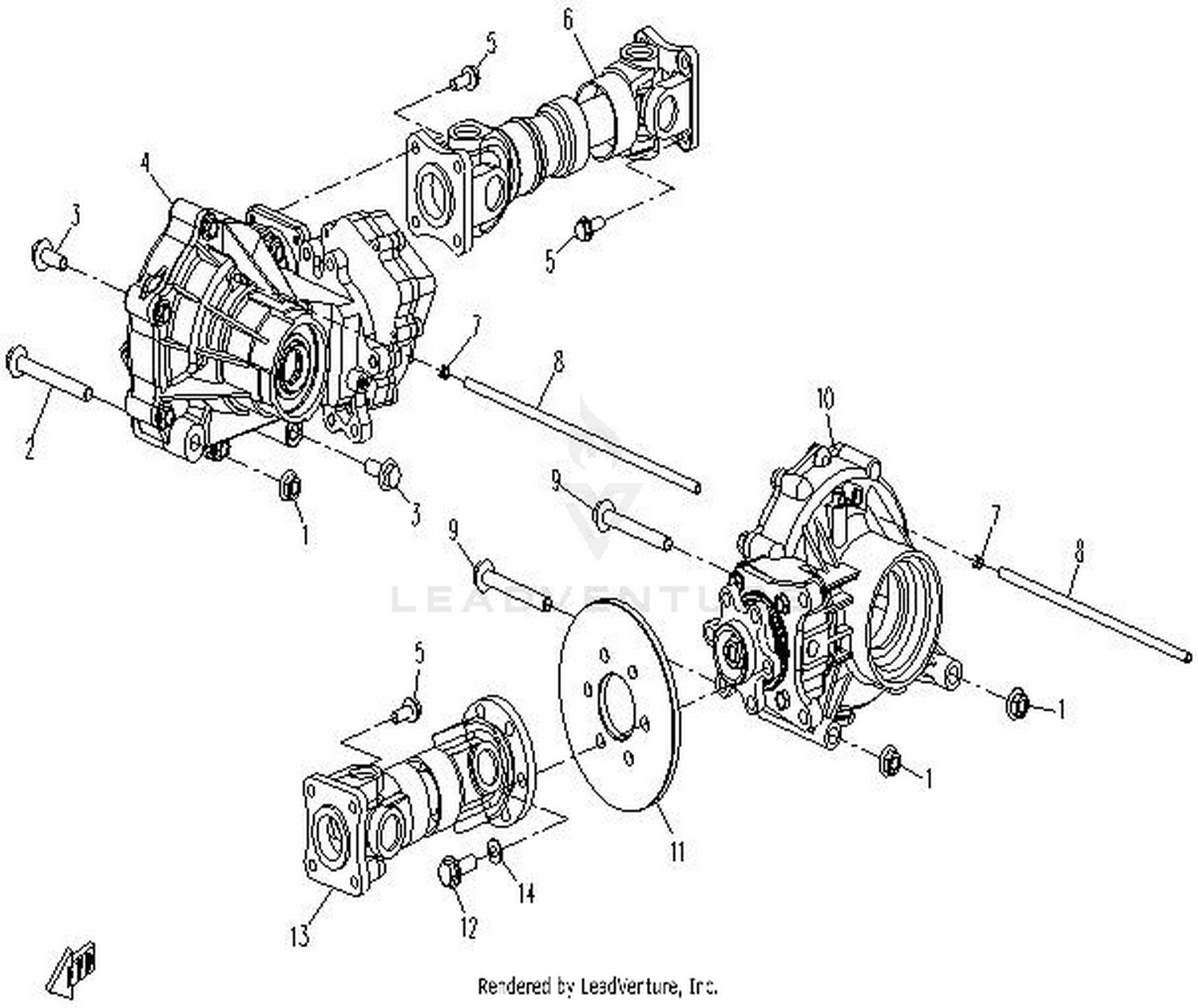

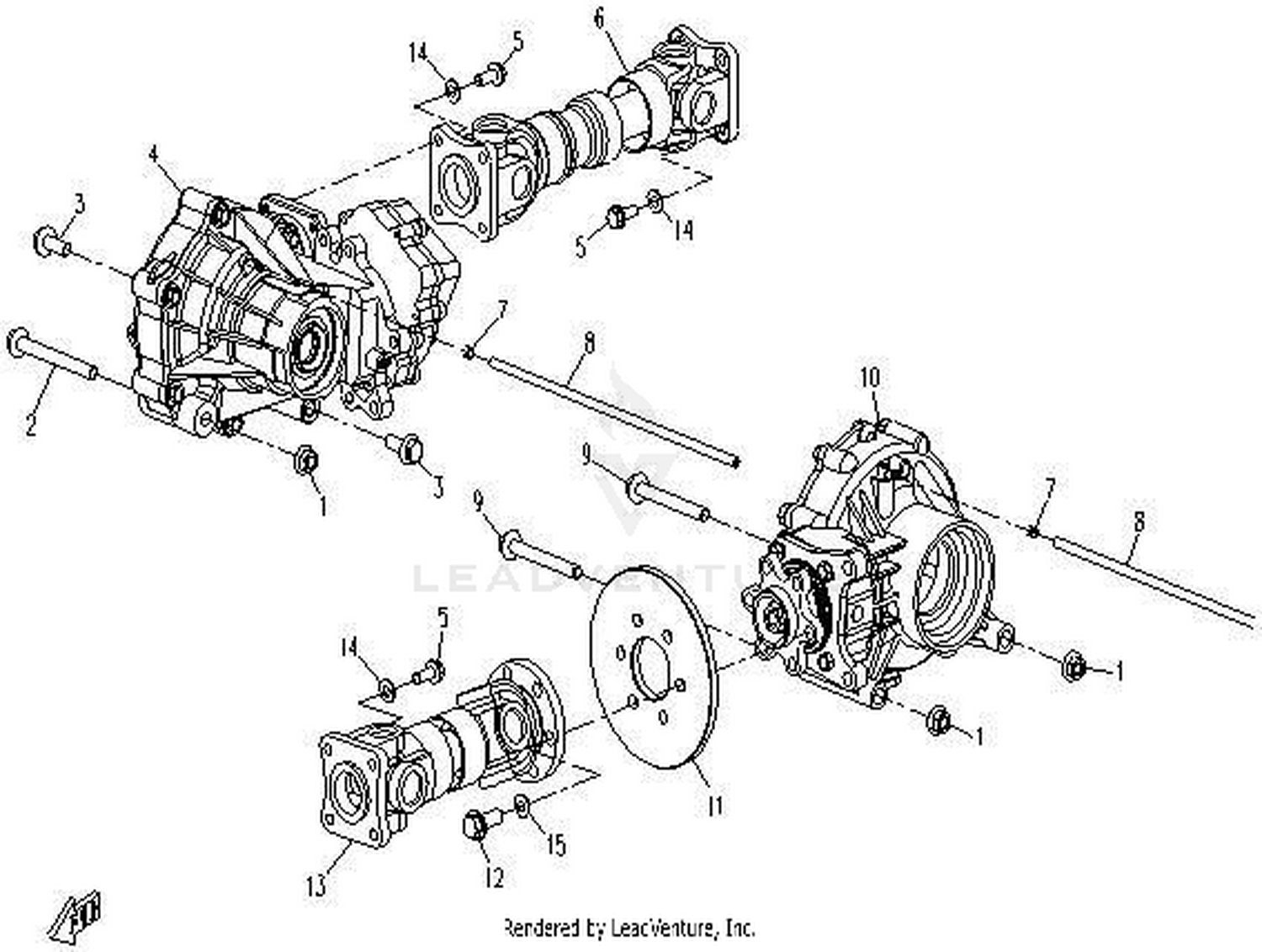

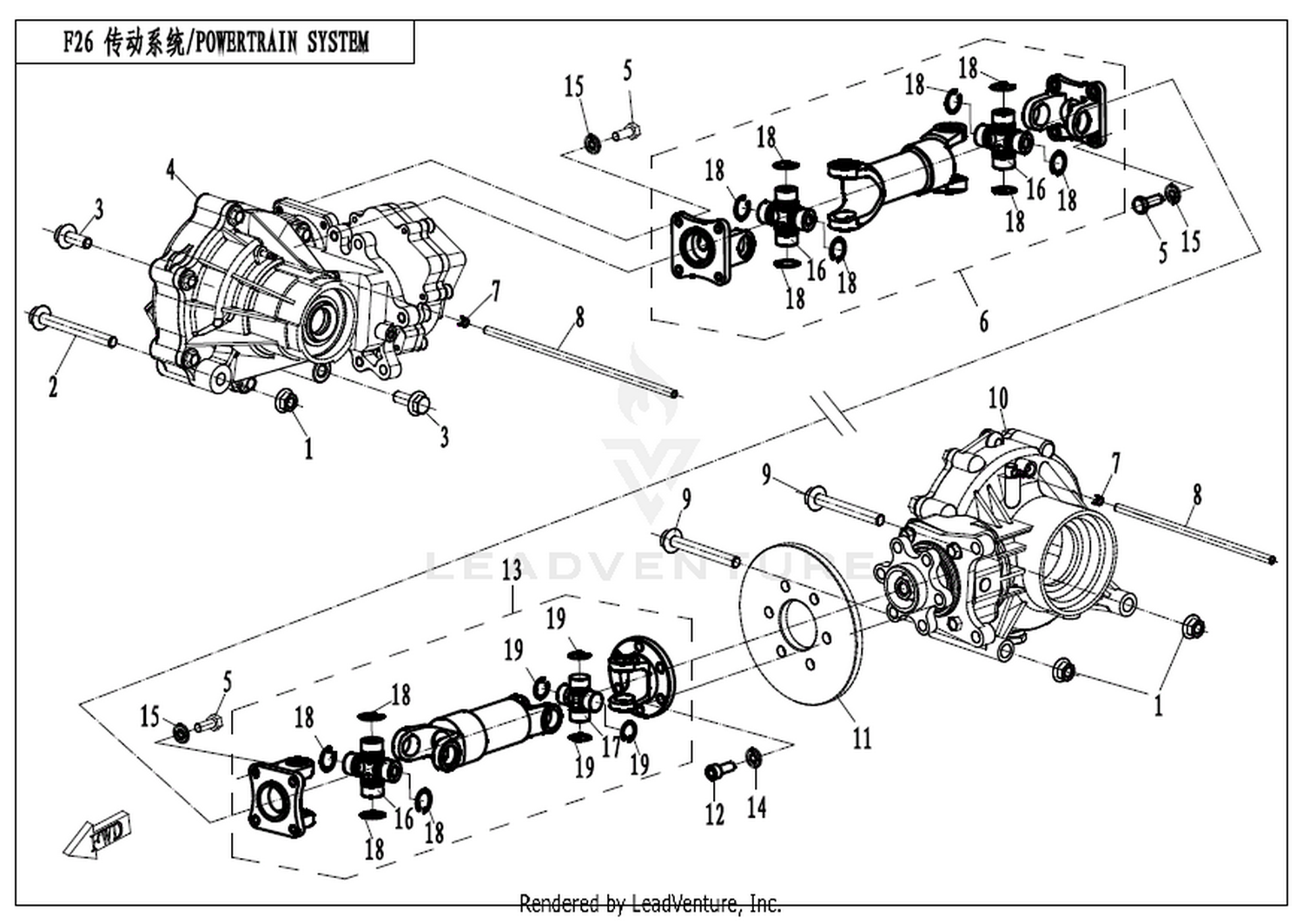

Location in exploded diagrams

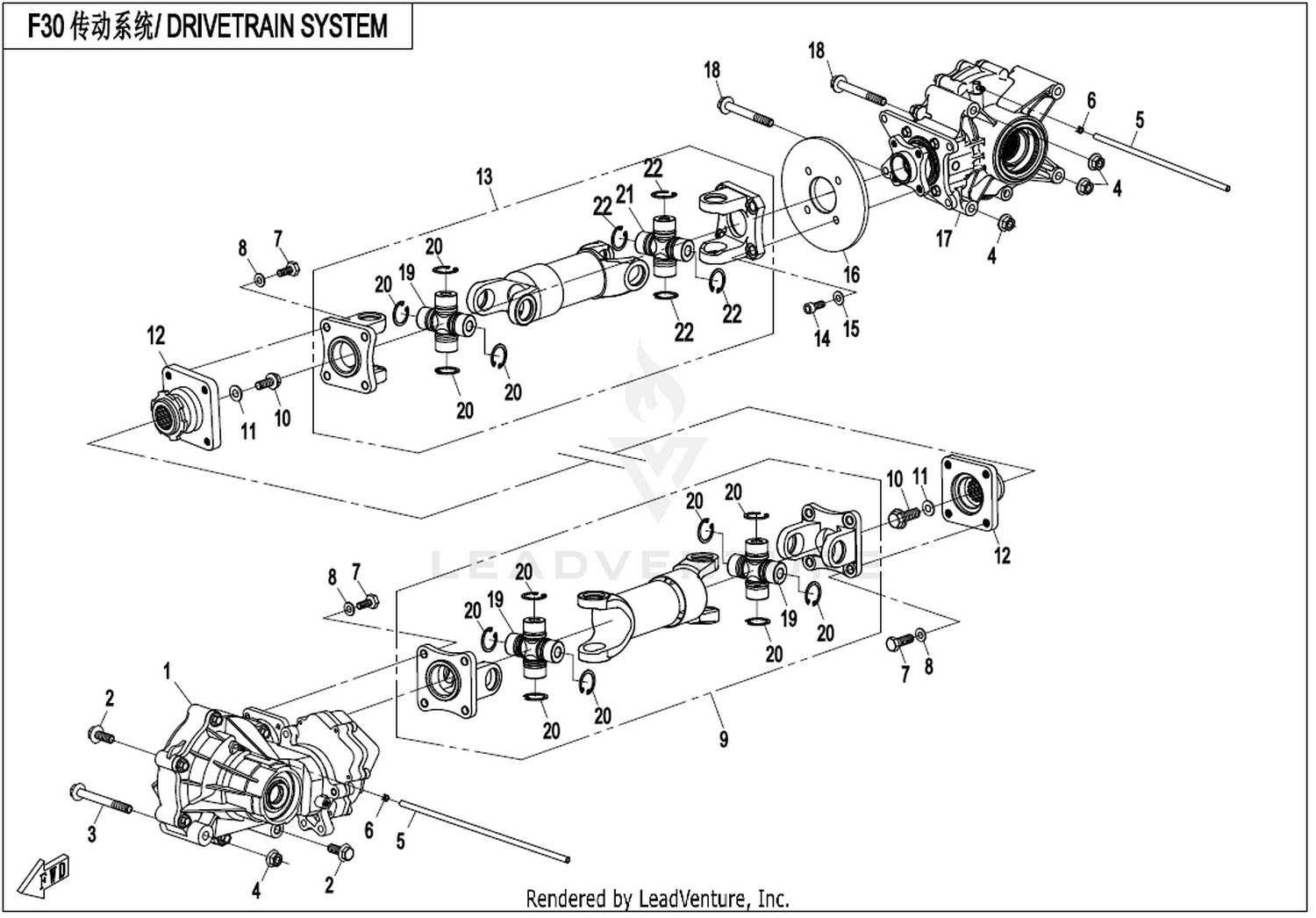

Other parts on this diagram — Drivetrain System
- #03 30006-102090810 — Bolt M10×1.25×90
- #29 30006-102030810 — Bolt M10×1.25×30
- #04 30204-102810 — Nut M10×1.25
- #11 7020-290002 — Gasket 10.2X30X5
- #18 30006-102110110 — Bolt M10×1.25×110
- #10 9010-310001 — Front Gear Case Breather Hose
- #12 7020-290001 — Coupler, Output Shaft
- #19 7020-290130-10000 — Universal Joint Dia 25X64 Dia 25X64
- #07 9010-290001 — Bolt M8X1X22 M8X1X22
- #13 7020-300200-00001 — Rear Drive Shaft
- #20 30800-02505 — Circlip For Hole A-D25 25
- #06 30306-080112 — Washer F8
- #14 9010-300001 — Bolt M10X1.25X30 M10X1.25X30
- #21 7020-300120 — Universal Joint Dia 22X50 Dia22X50
- #07 30006-102025810 — Bolt M10×1.25×25
- #09 7020-290100-00001 — Front Drive Shaft
- #15 9010-300002 — Washer Dia 10 Dia 10
- #04 30800-02205 — Circlip For Hole 22
