Verified fitment — 11 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

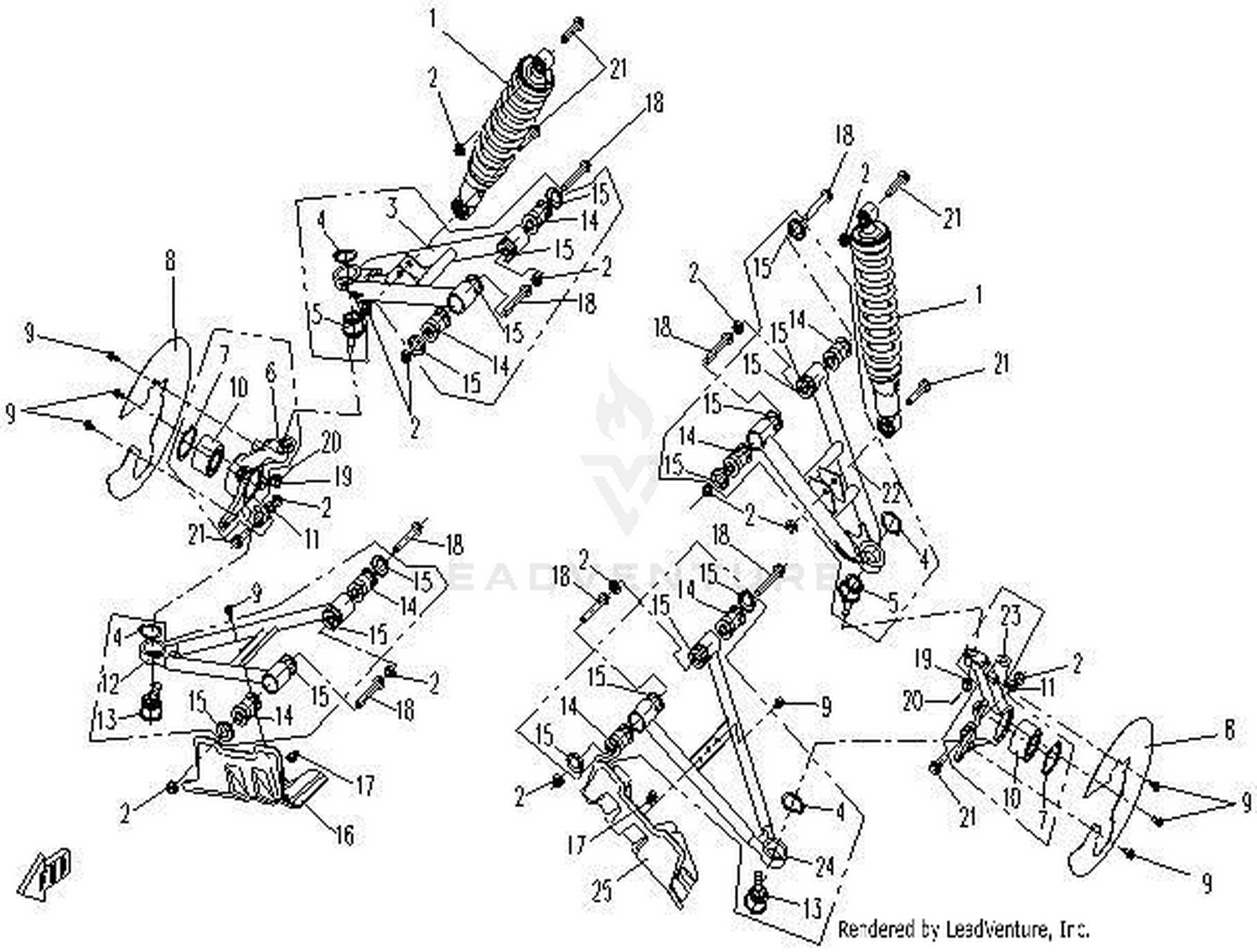

Other parts on this diagram — Front Suspension
- #19 9010-050700 — Top Ball Pin Somic
- #15 9010-300002 — Washer Dia 10 Dia 10
- #08 8030-040800-00001 — Nut Clip M6 M6
- #20 9010-050400-10000 — Front Upper Lh Swing Arm Assy
- #01 9010-050600-10001 — Front Shock Absorber Assy Yit@Gas@Red Spring
- #21 9010-050001 — Rh Steering Knuckle
- #01 9DSV-050410-6K01 — Front Lower Rh Swing Arm Assy Electrophoresis Blac
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #22 9010-050400-A000 — Front Upper Lh Swing Arm Assy
- #04 30204-102810 — Nut M10×1.25
- #25 30800-05505 — Circlip For Hole Black
- #10 9010-050800-20000 — Lower Ball Pin Assy
- #21 9010-100002 — 1-Type Nut M10X1.25
- #15 9010-050002 — Lh Steering Knuckle
- #22 9010-050200-10000 — Front Upper Rh Swing Arm Assy
- #13 9010-030008-1000 — Guard, Brake Disc Same With Cf800-2,Electrophoresis Black
- #12 9010-050500 — Cushion Sleeve Assy
- #22 30903-0201610 — Cotter Pin F2×16
- #08 9DSV-050210-6K01 — Front Lower Lh Swing Arm Assy Electrophoresis Blac
- #03 9010-050200-A000 — Front Upper Rh Swing Arm Assy
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #11 9010-050003 — Cushion Sleeve Cap
- #03 30006-102050810 — Bolt M10×1.25×50
- #25 901B-040023 — Fender, Lh Front Suspension
