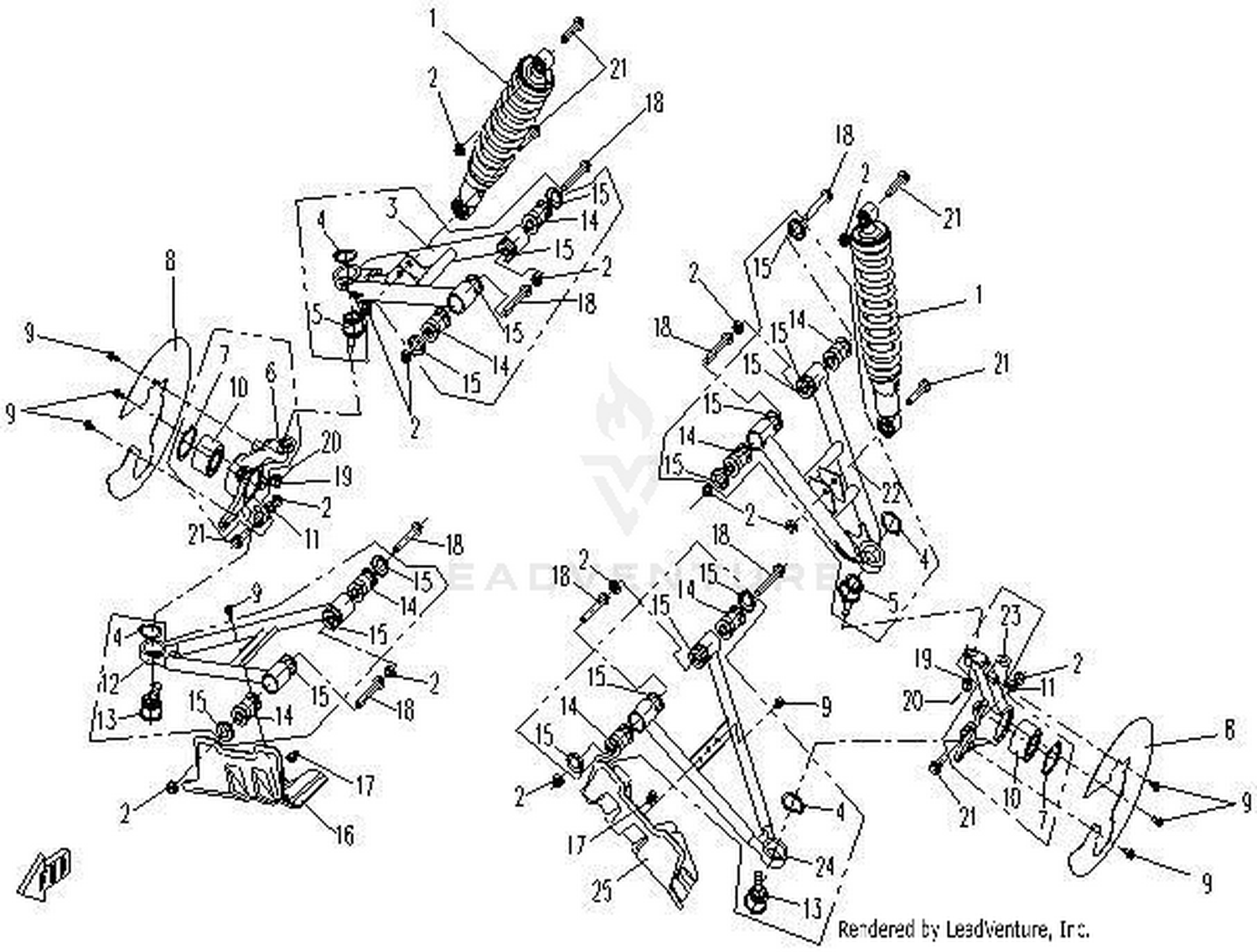

Location in exploded diagrams
Other parts on this diagram — Front Suspension
- #01 9010-050600-20001 — Front Shock Absorber Assy Yit@Gas@Black Spring
- #21 9010-050001 — Rh Steering Knuckle
- #21 9010-100002 — 1-Type Nut M10X1.25
- #02 401B-050001-10000 — Shock Absorber Spacer
- #26 9010-0503A0 — Front Lower Swing Arm, Lh
- #05 401B-050500 — Front Shock Absorber Assy Yit@Russia
- #25 30800-05505 — Circlip For Hole Black
- #01 9DSV-050410-6K01 — Front Lower Rh Swing Arm Assy Electrophoresis Blac
- #22 30903-0201610 — Cotter Pin F2×16
- #09 401B-050001 — Shock Absorber Spacer
- #27 9010-0501A0 — Front Rh Lower Swing Arm Assy
- #04 30204-102810 — Nut M10×1.25
- #13 9010-030008-1000 — Guard, Brake Disc Same With Cf800-2,Electrophoresis Black
- #10 9010-050800-20000 — Lower Ball Pin Assy
- #26 30006-102050840 — Needs Description
- #24 401B-050400 — Front Upper Rh Swing Arm Assy
- #21 401B-050201-10001 — Front Upper Rh Swing Arm In Addition To X8 Facelift(2016) Vehicles
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #12 9010-050500 — Cushion Sleeve Assy
- #20 401B-050401-10001 — Front Upper Lh Swing Arm In Addition To X8 Facelift(2016) Vehicles
- #24 401B-050400-10000 — Front Upper Rh Swing Arm Assy
- #20 30801-03405 — Circlips For Shaft 34
- #21 9GQ0-050710 — Bearing, Hub
- #11 9010-050003 — Cushion Sleeve Cap
