Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 103.82 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 95.99 | listing | cfmoto.quadzillaparts.co.uk |

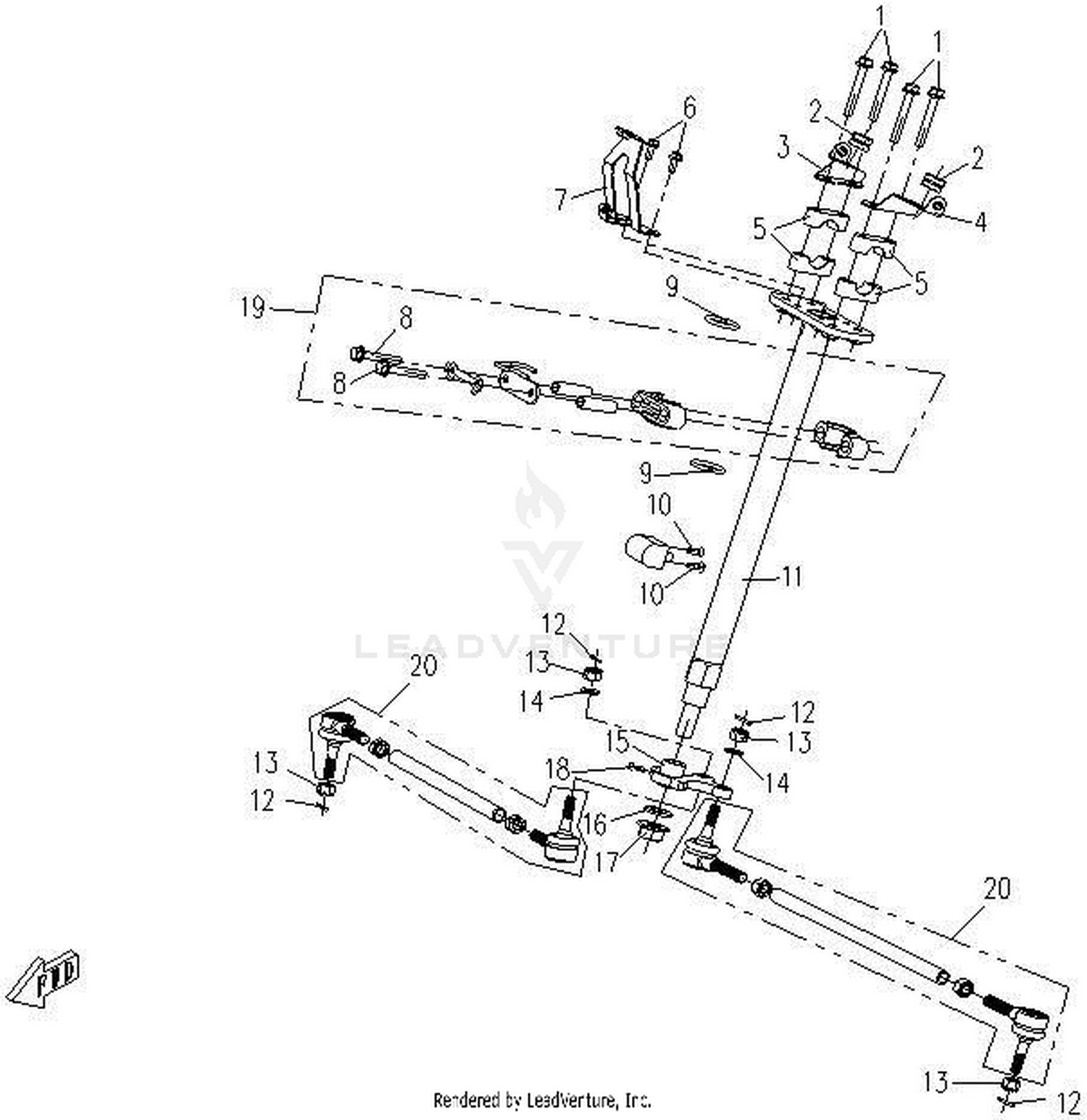

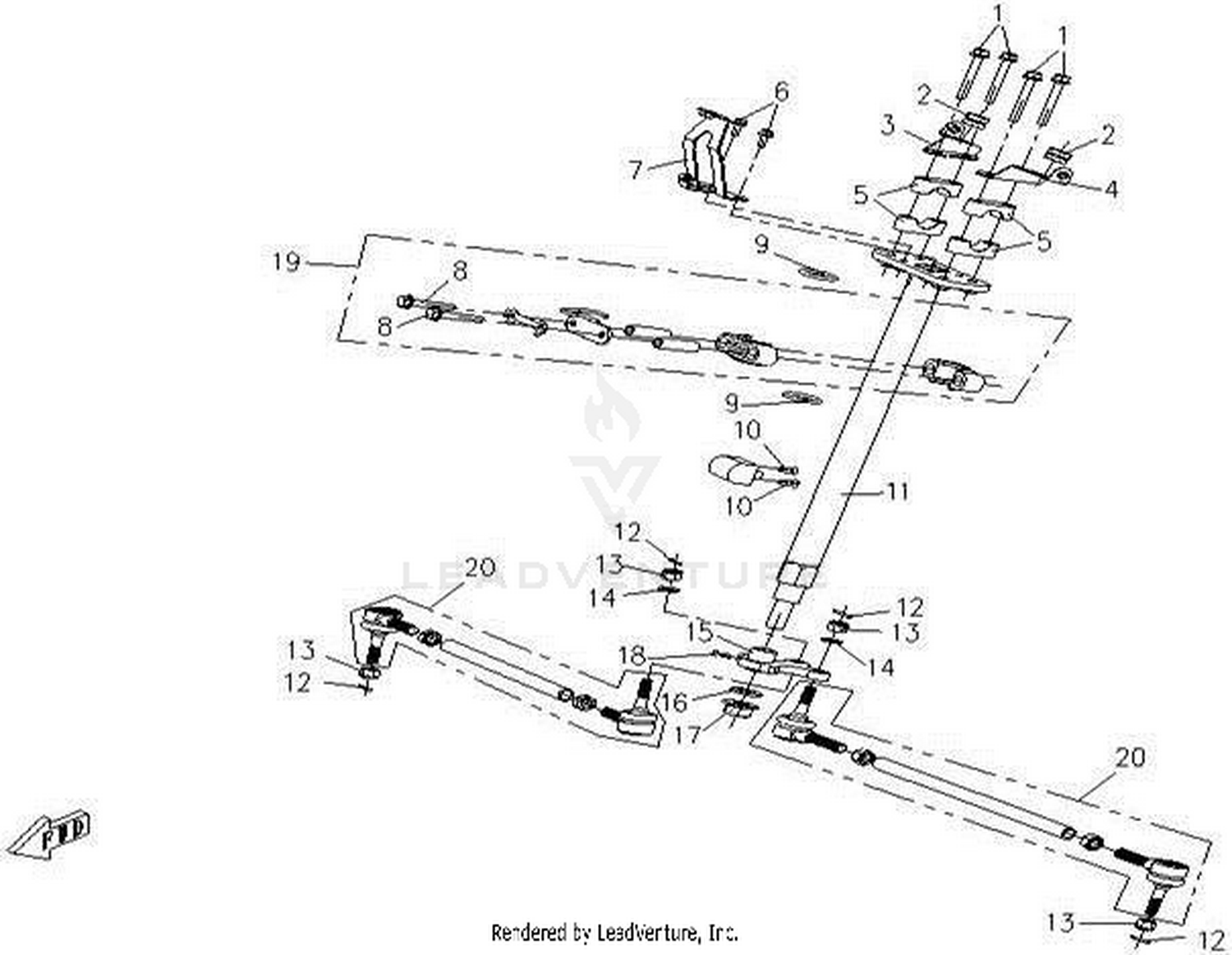

Location in exploded diagrams
Other parts on this diagram — Steering System
- #02 9DSV-100001-6K01 — Handlebar Block
- #01 30204-143810 — Nut M14×1.5
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #22 30903-0201610 — Cotter Pin F2×16
- #18 30102-060020840 — Inner Hex Screw M6X20@Army Green
- #01 30006-080055810 — Bolt M8×55
- #07 9020-030030 — Front Bracket, Dashboard
- #21 9010-100002 — 1-Type Nut M10X1.25
- #13 9010-1004A0 — Bushing, Steering Shaft
- #11 5020-031001 — Rubber Sleeve, Front License Bracket
- #09 30003-080075810 — Bolt M8X75 M8X75
- #24 30306-100112 — Washer F10
- #19 9010-100530-20000 — Steering Rod
- #03 9020-037600 — Lh Bracket, Dashboard
- #03 9010-100404 — Seal Ring
- #15 9010-100001-A000 — Pitman Arm
- #04 9020-037700 — Rh Bracket, Dashboard
- #03 30107-060012440 — Screw M6X12@Army Green
- #23 30306-140112 — Washer F14
