Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

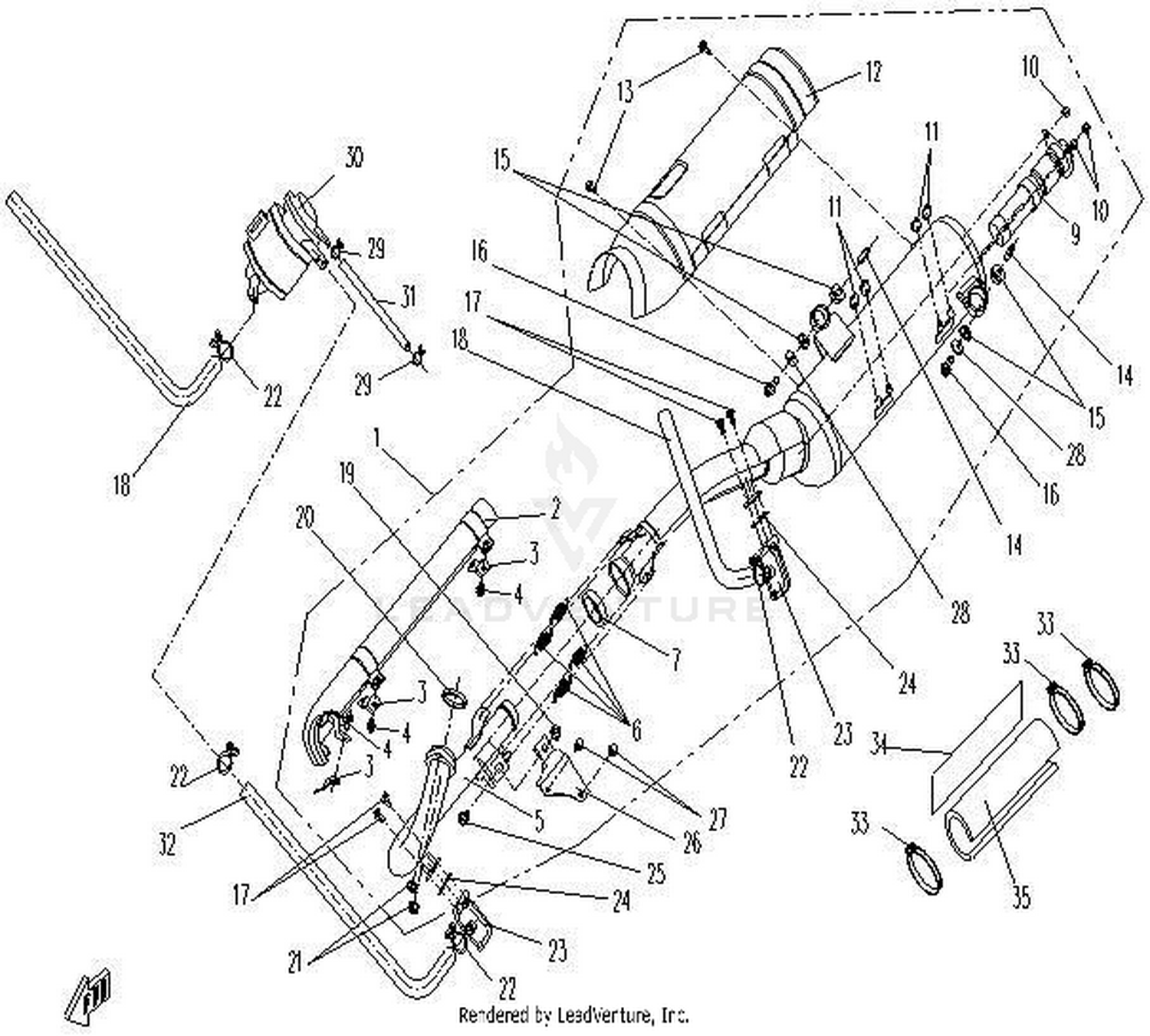

Location in exploded diagrams
Other parts on this diagram — Muffler
- #16 30206-060540 — Nut M6 M6
- #15 9010-020186 — Rubber Cushion, Muffler
- #27 0180-022300 — Bushing, Exhaust Pipe
- #26 9010-020003 — Front Support, Muffler
- #34 9010-020006 — Heat Insulation Paper
- #05 30006-060020870 — Bolt M6×20
- #11 6050-020106 — Damping Collar, Muffler
- #07 9010-020001 — Rubber Cushion, Muffler
- #03 8010-020001 — Nut M8, Muffler Joint M8
- #28 9010-020187 — Gasket
- #35 9010-020005 — Mat
- #05 9CR6-020002-00001 — Drag Spring,Muffler
- #12 9010-020140 — Heat Insulation Cover, Muffler
- #14 30006-080040810 — Bolt M8×40
- #18 30601-116010 — Clamp A16 A16
- #06 30601-107010 — Clamp A7 A7
- #01 9010-0201B0 — Muffler Assy
- #07 9010-020102-10001 — Seal Sleeve, Graphite
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #04 30006-060016870 — Bolt M6×16
- #23 8030-020120 — Air Supply Valve
- #30 9010-020500 — Gulp Control Valve
- #01 9050-0201B0 — Muffler Assy
- #07 9010-020102 — Seal Sleeve, Graphite
