Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

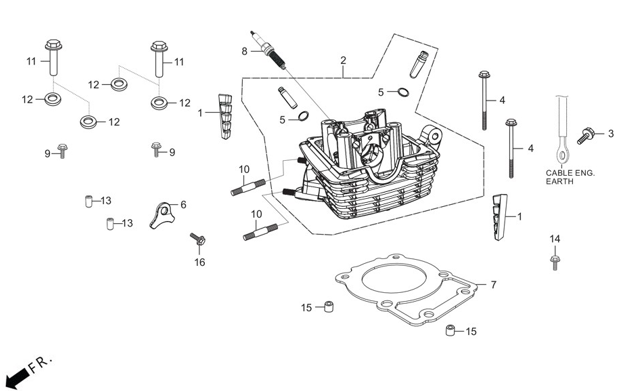

Other parts on this diagram — E1A - Cylinder Head
- 957010601400S — Hero XPulse 200 BOLT, FLANGE, 6 X 14
- 9430110120S — Hero XPulse 200 DOWEL PIN, 10X12
- 960010601207S — Hero XPulse 200 BOLT, FLANGE, SH., 6 X 12
- 94301ABW800S — Hero XPulse 200 DOWEL PIN 6X10
- 90404KPTA00S — Hero XPulse 200 WASHER PLAIN 12MM
- 90306ABF000S — Hero XPulse 200 NUT CYLINDER HEAD
- 90002KRM840S — Hero XPulse 200 BOLT, FLANGE 5X14
- 31916ABW801S — Hero XPulse 200 SPARK PLUG REK6YCA
- 12251ABF000S — Hero XPulse 200 GASKET CYLINDER HEAD
- 14515ABW800S — Hero XPulse 200 PLATE STOPPER
- 12206KPL900S — Hero XPulse 200 CLIP VALVE GUIDE
- 958010610500S — Hero XPulse 200 BOLT FLANGE 6 X 105
- 957010601600S — Hero XPulse 200 BOLT, FLANGE, 6X16
- 12200ABW800S — Hero XPulse 200 HEAD COMP CYLINDER
- 12195AABA00S — Hero XPulse 200 RUBBER, INSERT FRONT
