Location in exploded diagrams

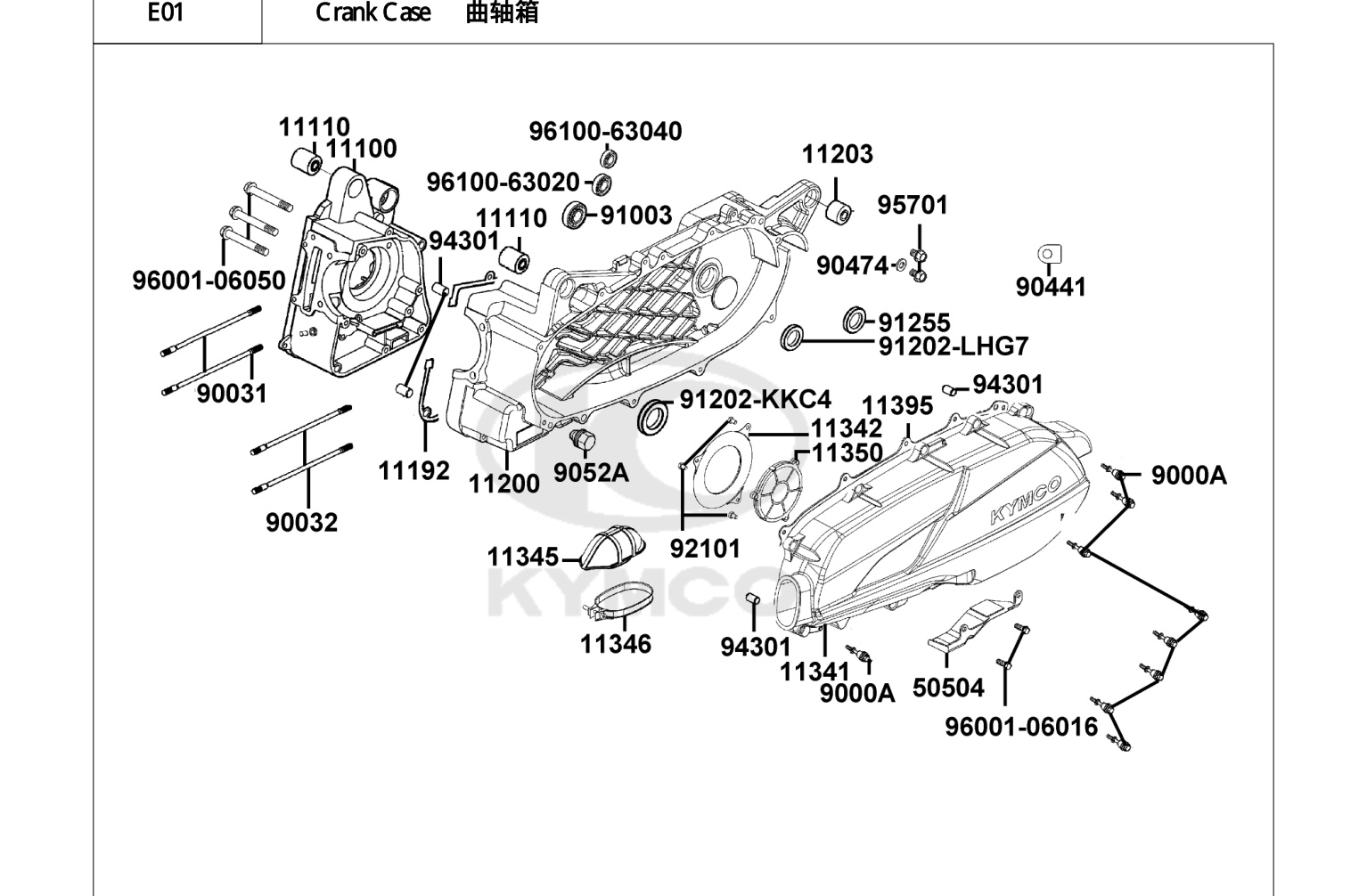

Other parts on this diagram — 曲轴箱
- #11346 11346-GFY6-C00 — BAND L COVER DUCT
- #11350 11350-LHG7-C00 — ELEMENT COMP. L COVER
- #11395 11395-LLJ3-C00 — GASKET L COVER
- #50504 50504-AGE7-C00 — STAY MAIN STAND STOPPER
- #9000A 9000A-KTDT-C02 — BOLT ASSY SPECIAL 6*27
- #90031 90031-KHD6-C01 — BOLT A STUD 8*218
- #90441 90441-KDY4-C00 — PLATE BRG HOLD
- #9052A 9052A-LEB1-C01 — BOLT ASSY DRAIN PLUG12*15(C)
- #91003 91003-KHE7-C00 — BRG BALL RADIAL
- #91255 91255-KHE7-C00 — OIL SEAL 34*52*7
- #92101 92101-05012-0HG — BOLT HEX 5*12
- #94301 94301-10160 — DOWEL PIN 10*16
- #95701 95701-08012-08G — BOLT FLANGE 8X12(C)
- #11100 11100-LDB2-C00 — CRANK CASE COMP R
- #11110 11110-LLJ3-C00 — BUSH ASSY ENG HANGER
- #11200 11200-ABD2-C00 — CRANK CASE COMP，L
- #11203 11203-LBA2-C00 — RUB BUSH L CASE
- #11341 11341-ABD2-C00 — COVER LEFT
- #11342 11342-LDF2-C00 — PLATE. L. COVER
- #11345 11345-LEA7-C00 — DUCT ， L COVER
- #90474 90474-3C33-C00 — WASHER 8MM (T*2)
- #11192 11192-KHE7-980 — GASKET CRANK CASE @A
