90031107010Sym Fiddle 125 E5 CYLINDER STUD BOLT A — Genuine Sym Part
Symoem
Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (10)
- 2020–2024 Fiddle 125 E5 (2020 – 2024)
- 2025–2026 Fugue 125 E5+ (2025 – 2026)
- 2021–2024 Jet 14 125 AC E5 (2021 – 2024)
- 2024 Jet 14 125 EVO E5 (2024 – 2024)
- 2022–2024 Jet 4 RX 125 E5 (2022 – 2024)
- 2025–2026 Jet 4 RX 125 E5+ (2025 – 2026)
- 2023–2024 NH-T 125 E5 (2023 – 2024)
- 2021–2024 Orbit III 125 E5 (2021 – 2024)
- 2025–2026 Orbit III 125 E5+ (2025 – 2026)
- 2021–2024 Symphony 125 E5 (2021 – 2024)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 9.07 | listing | motogbshop.co.uk |

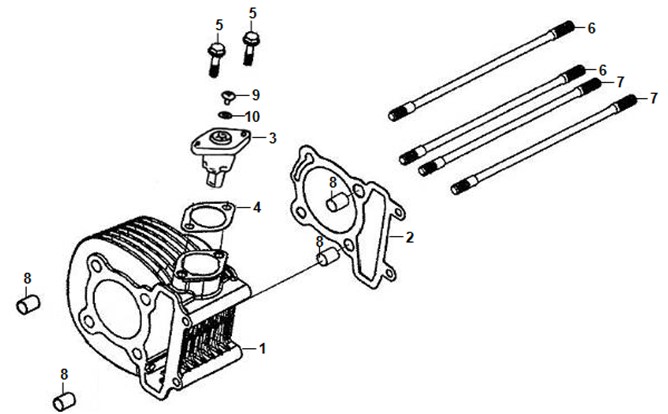

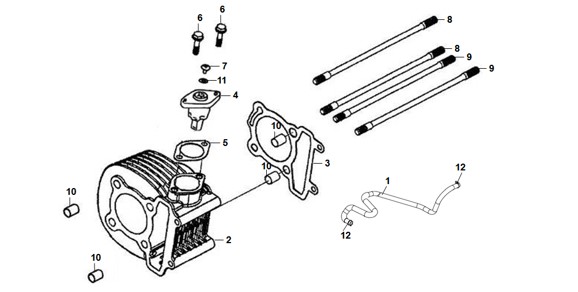

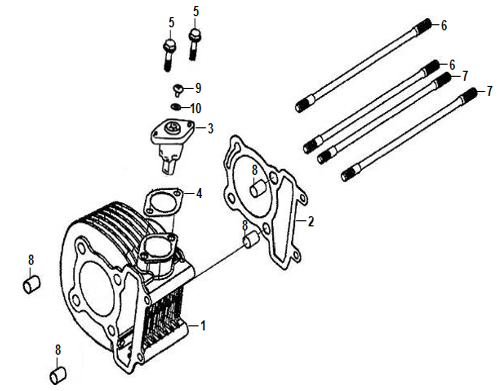

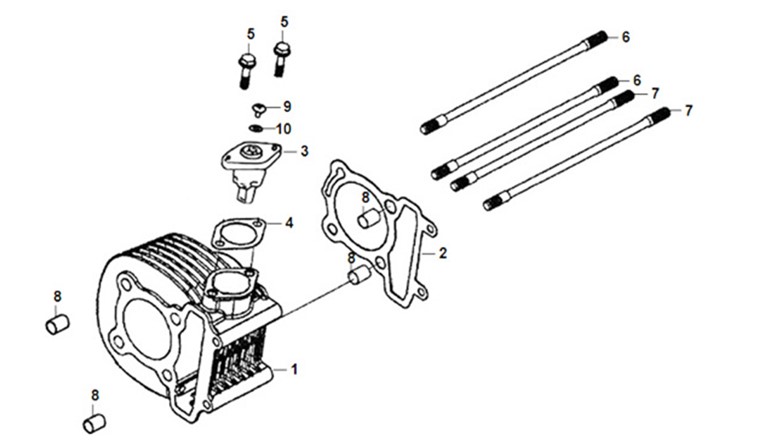

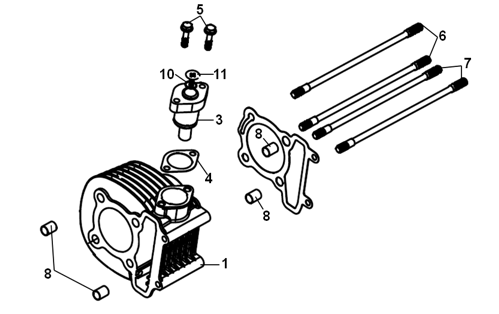

Location in exploded diagrams

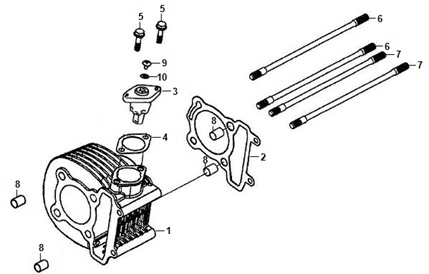

Other parts on this diagram — Cylinder Assy
- 91306GY6A00 — Sym Fiddle 125 E5 O-RING 1.78*9.5
- 90005KW1900 — Sym Fiddle 125 E5 PAN SCREW 6*6
- 90703HC4000 — Sym Fiddle 125 E5 DOWEL PIN 10*14
- 9430110140 — Sym Fiddle 125 E5 DOWEL PIN 10X14
- 90703M8Q000 — Sym Fiddle 125 E5 DOWEL PIN 10*14
- 90032A6A000 — Sym Fiddle 125 E5 CYLINDER STUD BOLT B
- 90031M2Q000 — Sym Fiddle 125 E5 CYL. STUD BOLT A
- 90001M9Q000 — Sym Fiddle 125 E5 FLANGE BOLT 6*22
- 14523F6C000 — Sym Fiddle 125 E5 TENSIONER LIFTER GASKET
- 14523GY6900KD — Sym Fiddle 125 E5 TENSIONER LIFTER GASKET
- 14523M9Q000 — Sym Fiddle 125 E5 TENSIONER LIFTER GASKET
- 14523Z8G000 — Sym Fiddle 125 E5 TENSIONER LIFTER GASKET
- 14520M9Q000 — Sym Fiddle 125 E5 TENSIONER LIFTER ASSY
- 14520GY6A00 — Sym Fiddle 125 E5 Tensioner lifter ASSY.
- 14520GY6901 — Sym Fiddle 125 E5 TENSIONER LIFTER ASSY
- 12191F6C000 — Sym Fiddle 125 E5 CYLINDER GASKET
- 12101F6A000 — Sym Fiddle 125 E5 CYLINDER
- 12100ARA000 — Sym Fiddle 125 E5 CYLINDER
- 8.RA-10-004-I — Sym Fiddle 125 E5 CYLINDER GASKET
