Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

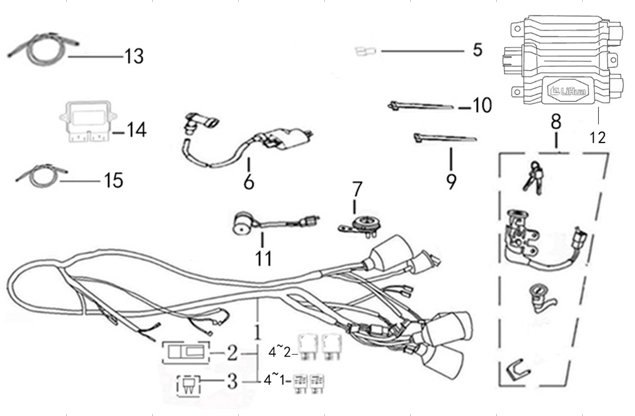

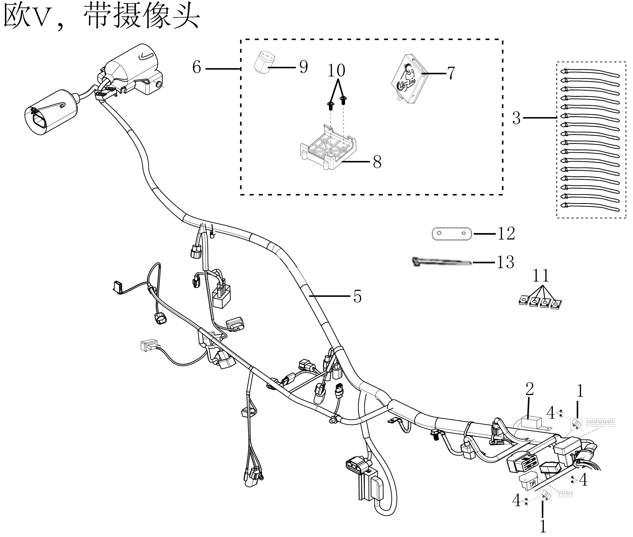

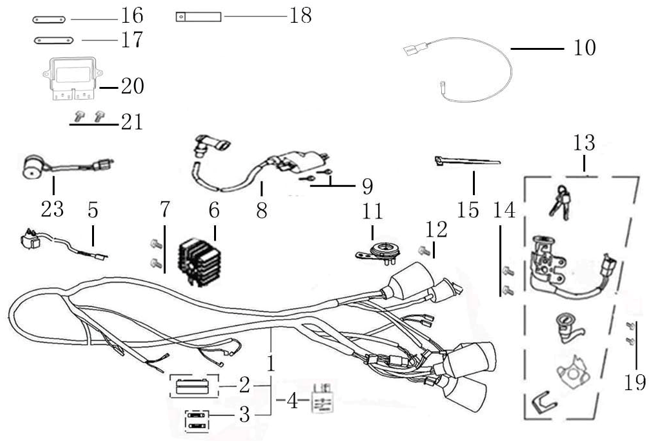

Location in exploded diagrams

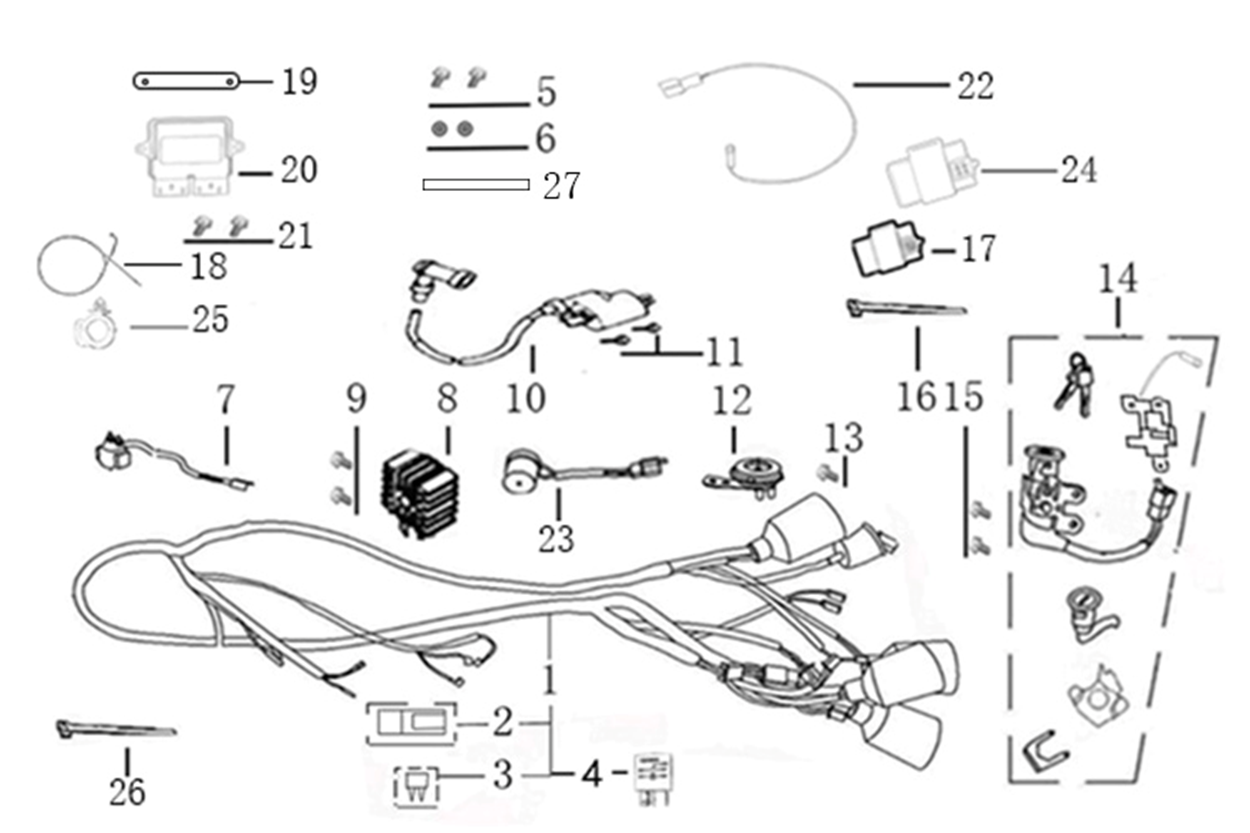

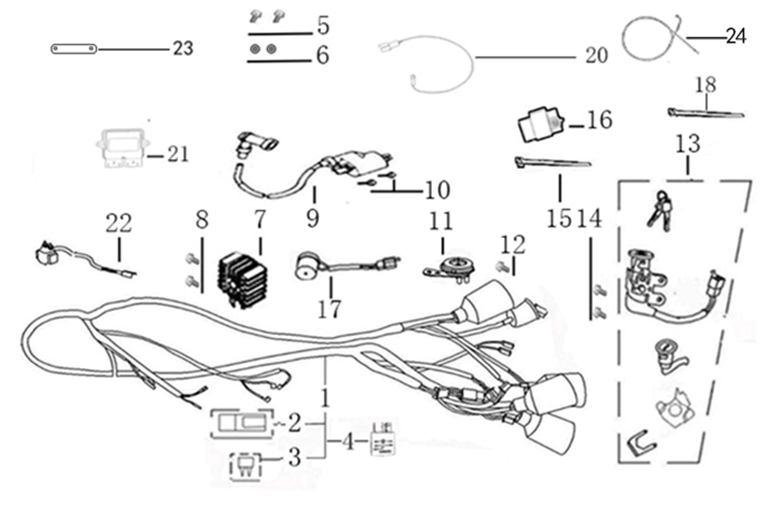

Other parts on this diagram — F20 = HARNESS WIRE
- 39340-DGW-9200-B — MGB A9 125 temperature sensor
- 35860-AFAA-9000-B — MGB A9 125 SET START MAG ASSY
- 77240-ABS-9000-B — MGB A9 125 Seat cushion lock line
- 35850-DGW-9100 — MGB A9 125 SET START MAG ASSY
- 39100-AAR8-E000 — MGB A9 125 ECU
- 39340-DGW-9200 — MGB A9 125 temperature sensor
- 90006-F8-9000 — MGB A9 125 TIE 250mm
- 38300-ABA9-9000 — MGB A9 125 RELAY ASSY WINKER
- 38400-AFAA-9000 — MGB A9 125 Headlight controller
- 90006-F8-9500 — MGB A9 125 TIE 150mm
- 92101-06016-03 — MGB A9 125 BOLT FLANGE 6*16 （G）
- 35010-ABA9-9002 — MGB A9 125 SW COMP LOCK
- 92101-06012-03 — MGB A9 125 BOLT FLANGE 6*12 (G)
- 38110-XF-9000 — MGB A9 125 HORN COMP (HIGH)
- 92401-06020-03 — MGB A9 125 BOLT FLANGE 6*20
- 3051A-AFAA-9000 — MGB A9 125 COIL ASSY IGN
- 92101-06020-03 — MGB A9 125 BOLT FLANGE 6*20 (G)
- 31600-AFAA-9000 — MGB A9 125 REG REC COMP
- 95101-05000-03 — MGB A9 125 NUT FLANGE 5MM
- 93201-05012-03 — MGB A9 125 SCREW PAN. M5*12
- 35860-AFAA-9000 — MGB A9 125 Relay
- 99201-11500-B — MGB A9 125 FUSE 15A
- 38205-AFA1-9000-B — MGB A9 125 CASE FUSE
- 32100-ABA9-E500 — MGB A9 125 HARNESS WIRE
Same number, other brands
The number 90006-AFA1-9000 also appears in other manufacturers' catalogues: unknown brand — MGB SST 125 Rubber tie
