Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

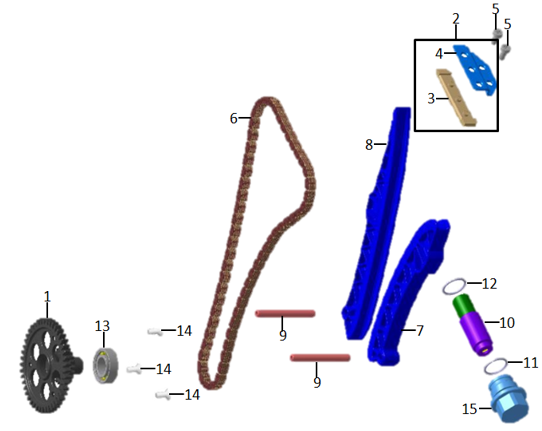

Other parts on this diagram — E04 - Chain Tensioner
- 8535601-02 — Voge DS900X E5+ ADPATER CHAIN TENSIONER
- 6916475-02 — Voge DS900X E5+ INT SCREW
- 8568480-01 — Voge DS900X E5+ BALL BEARING
- 9906605-00 — Voge DS900X E5+ O-RING
- 7718077-01 — Voge DS900X E5+ O-RING
- 8535600-01 — Voge DS900X E5+ CHAIN TENSIONER
- 8535599-01 — Voge DS900X E5+ BACK SHAFT
- 8562334-01 — Voge DS900X E5+ GUIDING RAIL
- 8562333-01 — Voge DS900X E5+ TENSIONING RAIL
- 382330060-0001 — Voge DS900X E5+ ISA SCREW
- 8562332-01 — Voge DS900X E5+ CHAIN GUIDE PROTECTION PLATE
- 8562331-01 — Voge DS900X E5+ SLIDING RAIL
- 5A69F47-03 — Voge DS900X E5+ ASSY TOP CHAIN GUIDE
- 140580083-0001 — Voge DS900X E5+ TIMING GEAR
