83125S220002Lambretta J125 FRONT COVER LOWER DEFLECTOR — Genuine Lambretta Part

Verified fitment — 1 vehicle

Fitment is sourced from official parts catalogues, listed per catalogue market.

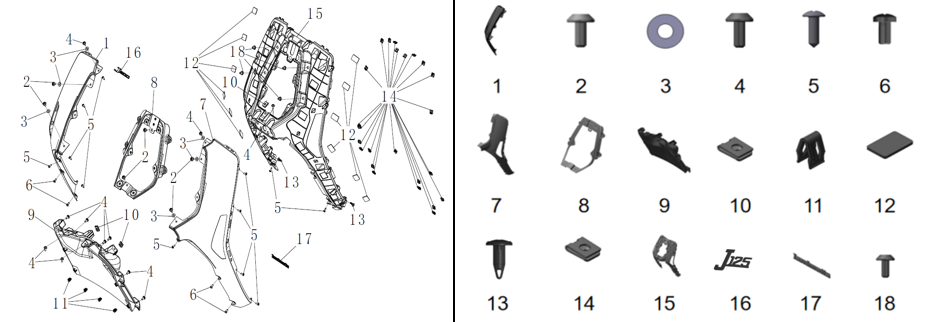

Location in exploded diagrams

Other parts on this diagram — F32 - Front Covers

• 90503M610000 — Lambretta J125 BOLT M6*8
• 83104S220000F2 — Lambretta J125 LAMBERTTA I LABEL (F1)
• 83104S220000F1 — Lambretta J125 LAMBERTTA I LABEL (F1)
• 83103S230000F2 — Lambretta J125 J125 LABEL (F2)
• 83103S230000F1 — Lambretta J125 J125 LABEL (F1)
• 83124S220001 — Lambretta J125 FRONT COVER INNER LINER
• 82004M110000 — Lambretta J125 NUT PLATE M5
• 91302M120000 — Lambretta J125 EXPANSION SCREW SET
• 82231M310000 — Lambretta J125 REAR FENDER END CUSHION
• 91301M120000B0 — Lambretta J125 V-CLAMP
• 82005M110000 — Lambretta J125 NUT CLIP M6
• 83123S220000 — Lambretta J125 FRONT COVER CONNECTION PLATE
• 83121S220000YH — Lambretta J125 FRONT COVER L (YELLOW)
• 83121S220000YD — Lambretta J125 FRONT COVER L (BROWN)
• 83121S220000W4 — Lambretta J125 FRONT COVER L (WHITE)
• 83121S220000V6 — Lambretta J125 FRONT COVER L (GREEN)
• 83121S220000SJ — Lambretta J125 FRONT COVER L (GRAY)
• 83121S220000R4 — Lambretta J125 FRONT COVER L (RED)
• 83121S220000B8 — Lambretta J125 FRONT COVER L (BLACK)
• AGR005010H01DB — Lambretta J125 CROSS RECESSED PAN HEAD SCREW M5?10
• 90501M120001 — Lambretta J125 WAFER HEAD TAPPING SCREW ST4.2*13
• 90509M310000 — Lambretta J125 BOLT M5?12
• 83129S220001 — Lambretta J125 PLASTIC WASHER (PLASTIC)
• 90119M110000 — Lambretta J125 BOLT M6?12
